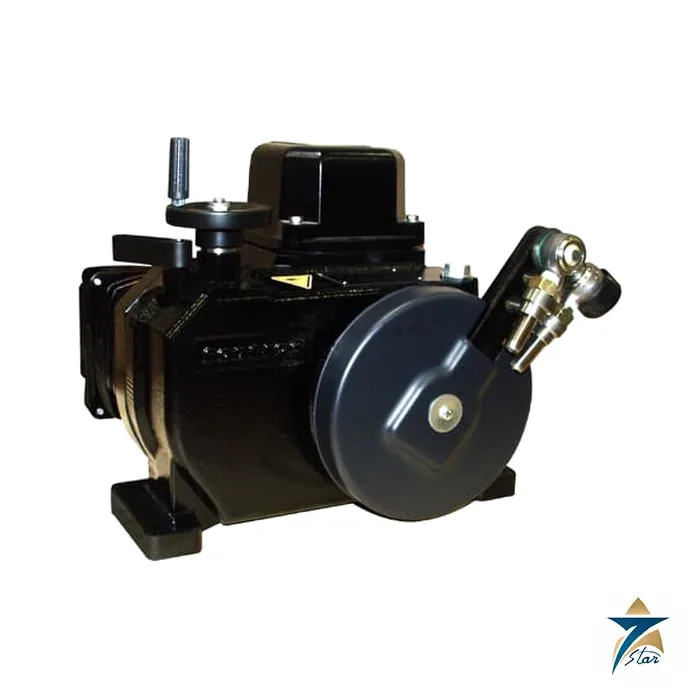

ABB PME120-AI Rotary Actuator | Precise Contrac Control
Overview
The ABB PME120-AI rotary actuator is a high-precision, electronically controlled rotary actuator engineered for demanding industrial automation tasks. Designed with advanced Contrac technology, it provides exceptional torque output, smooth motion control, and long-term reliability in harsh environments.
Whether used in power generation, water treatment, HVAC systems, or chemical plants, the PME120-AI ensures accurate positioning and dependable operation under continuous load.
Engineering & Design
The integrated electronics provide precise feedback, diagnostics, and seamless communication with PLC and DCS systems, and the actuator supports both analog and digital control signals for easy integration with existing automation infrastructure.
The compact and sealed enclosure ensures operation in outdoor, dusty, or corrosive conditions, and the modular design with low maintenance requirements makes the PME120-AI an ideal solution for rotary valve control, damper actuation, and critical process applications.
Key Features
- High-precision electronic rotary actuation
- Advanced ABB Contrac technology
- Exceptional torque output
- Smooth motion control
- Integrated electronics with feedback
- Diagnostics and PLC/DCS communication
- Analog and digital control signals
- Compact sealed enclosure
- Low maintenance modular design
- For outdoor, dusty, corrosive conditions
Applications
- Rotary valve control
- Damper actuation
- Power generation
- Water treatment
- HVAC and chemical plants
Specifications
| Specification | Value |
|---|---|
| Manufacturer | ABB |
| Model | PME120-AI |
| Type | Rotary actuator, Contrac series |
| Control | Electronic, analog and digital signals |
| Feedback | Actual-value (position) output 0/4 … 20 mA |
| Communication | 0/4 … 20 mA setpoint input with HART; Profibus DP option |
| Enclosure | Compact and sealed |
| Diagnostics | Integrated |
| Duty | Continuous load operation |
| Rated Torque | 40 … 100 Nm |
| Rated Speed | 1.5 … 4.5 deg/s (20 … 60 s per 90 deg) |
| Supply Voltage | 115 V AC (94 … 130 V) or 230 V AC (190 … 260 V), 47.5 … 63 Hz |
| Max. Current Consumption | 1.0 A at 115 V AC / 0.5 A at 230 V AC |
| Weight | approx. 45 kg (PME 120 AI) |
| Protection Rating | IP 66 |
| Default Signals | Setpoint input 4 … 20 mA, actual-value output 4 … 20 mA, 3 digital inputs and 3 digital outputs |
| Manual Operation | Handwheel with lock lever, usable with power off |
| Oil Filling | 2.5 l gear oil, filled at the factory |
Final control element reliability drives process performance, and the ABB PME120-AI rotary actuator provides it, which is why Seven Star LLC supplies the ABB PME120-AI rotary actuator for valve automation projects.
The ABB PME120-AI Contrac electric actuator moves the control element with the reversible motor and the integrated positioner electronics. The actuator is mounted on the valve through its output lever and a link rod with ball-and-socket joints (the link tube is not part of the delivery) and is connected to the 4-20 mA command signal of the DCS. The position feedback output (0/4 … 20 mA) is integrated, the torque is set in the electronics, the actuator is stallproof, and the local manual override allows the hand operation during the commissioning.
Mounting and Mechanical Interface
The PME 120 transmits its rotary motion through a drive lever on the output shaft. The lever is connected to the valve or damper lever by a link rod with two ball-and-socket joints; the link tube itself is not included in the scope of delivery and its length is determined on site from the spacing between the levers. All mounting orientations are permissible, and ABB recommends orientation IMB 3 to ease mounting and maintenance.
The actuator should be mounted on a rigid, non-vibrating support, accessible from all sides for handwheel operation and electrical connection, and protected from direct rain and snow. It is filled with 2.5 l of oil at the factory, and after mounting the highest inspection screw is replaced by the separately delivered vent screw. Adjustable mechanical stops allow travel-dependent or torque-dependent end positions.
Manual Operation and Default Configuration
A built-in motor brake holds the position when the power is off. For manual operation, turn the lock lever clockwise and move the output lever with the handwheel; a friction clutch is designed so that a handwheel force of around 11 N is sufficient to produce the rated torque. If strong counter-force is felt, the force should not be increased, to avoid damaging the actuator or valve.
Unless the customer specifies otherwise, ABB delivers the actuator as a positioner with a linear setpoint function and 4 … 20 mA setpoint input and actual-value output. Digital input 1 switches between manual and automatic, inputs 2 and 3 give manual control, and the digital outputs signal ready-to-operate and the end positions. The configuration can be displayed and changed with the configuration program.
Why Seven Star LLC
Seven Star LLC supplies the ABB PME120-AI rotary actuator for valve and damper projects across the Gulf, with verified specifications and technical support. Our team assists with torque selection, control interface, and spare part planning.
We serve power, water, HVAC, and process industries with reliable B2B supply of ABB Contrac actuators throughout the GCC.
Installation & Operation
The actuator is fixed on a rigid, vibration-free support and drives the valve or damper lever through a link rod, and the integrated electronics connect to the control system over the analog or digital interface. The sealed enclosure protects the electronics in outdoor, dusty, and corrosive environments.
Feedback and diagnostics support condition monitoring, and the continuous duty rating covers modulating service. Commissioning is supported by the integrated setup functions of the Contrac electronics.
Supply Chain & Sourcing
Seven Star LLC supplies the ABB PME120-AI rotary actuator with the Contrac documentation and configuration support required for a smooth installation.
We also support spare electronic units and gear components for installed actuators.
The actuator position feedback and diagnostics are available to the control system, supporting condition monitoring and predictive maintenance.
For modulating duties, the Contrac electronics provide precise positioning with continuous duty capability, and the sealed enclosure protects the unit in outdoor installations subject to dust, moisture, and corrosive atmospheres.
For rotating applications, the actuator mounting and the torque rating are selected for the valve or damper, and the integrated feedback provides the position signal for the control loop. The diagnostics report the actuator condition continuously.
For the actuator installation, the output lever and the link rod are matched to the valve lever, and the commissioning procedure verifies the travel and the torque settings with the integrated electronics.
The PME120-AI provides the rotary actuation solution for valves and dampers in power, water, and process applications, with the Contrac reliability.
The actuator is supplied with the mounting documentation and the commissioning procedure for the installation team, supporting the smooth start-up of the valve automation.
The Contrac series documentation and the actuator configuration support the complete project record.
Request a Quote for ABB PME120-AI Rotary Actuator | Precise Contrac Control
For the ABB PME120-AI rotary actuator or any related control and instrumentation requirement, contact the Seven Star LLC team. Submit a formal inquiry through our RFQ page with your valve size, actuation and process data, and our specialists will respond with a detailed commercial proposal and the official ABB documentation.
Matching a PME120-AI to Your Valve or Damper
Correct sizing starts with the torque the final control element actually needs. Take the breakaway and running torque of the valve or damper at maximum differential pressure, add a sensible safety margin for ageing and deposits, and check that the result sits within the actuator’s rated torque. Then confirm the required travel time, the angle of rotation and the mechanical interface, since the output lever and link rod must suit the valve lever and support of the driven equipment.
- Required torque and stroke angle
- Positioning time and control duty
- Shaft dimensions and mounting arrangement
- Control signal, feedback and supply voltage available at site
- Ambient conditions at the installation point
For a like-for-like replacement, the actuator nameplate gives the full ordering code, which is the most reliable way to match the existing unit.
Installation and Commissioning
Align the actuator carefully with the valve or damper shaft; misalignment adds side load, increases wear and can make the actuator report torque faults. Set the mechanical end positions first using the manual override, then commission the electronics so that the end positions, direction of rotation and the response to the 4–20 mA command match the control philosophy. Confirm the position feedback reading in the DCS at 0, 50 and 100 percent, and check the behaviour on loss of signal before handing the loop over.
Maintenance and Troubleshooting
- Hunting or oscillation: review controller tuning and deadband settings before suspecting the actuator.
- Torque trips: check the driven equipment for sticking, deposits or damaged linkages.
- Position mismatch: re-check end position settings and the feedback calibration.
- Routine: inspect seals, cable glands and mounting bolts, and review the actuator’s diagnostic messages during planned outages.
Typical Applications in Oman and the GCC
In the region, Contrac rotary actuators are commonly found on combustion air and flue gas dampers in power and desalination plants, on fuel and feedwater control valves, and on large dampers in cement and process plants. These are continuous modulating duties where precise, repeatable positioning directly affects efficiency, and where high ambient temperatures and dust make a sealed, well-maintained actuator especially valuable.
Sourcing Through Seven Star LLC
Seven Star LLC supplies ABB Contrac actuators and spares to plants across Oman and the GCC. Share the nameplate code or your valve data, and our team will confirm the right configuration and lead time.
