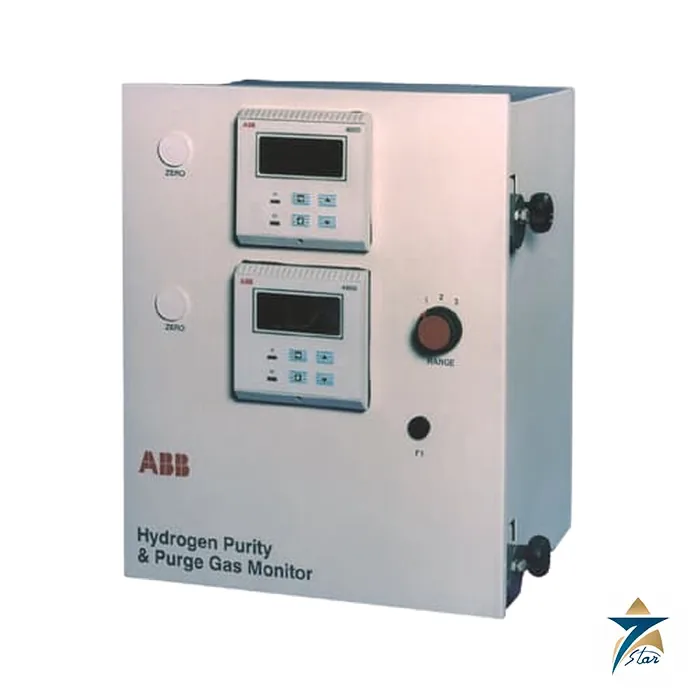

ABB AK100 Hydrogen Purity Monitor
Overview
The ABB AK100 hydrogen purity monitor is an advanced solution designed to accurately measure the purity of hydrogen gas used in industrial applications. Monitoring hydrogen purity is critical in power generation and chemical processes, where gas quality directly affects equipment performance and safety.
The hydrogen purity monitor ensures real-time analysis to prevent contamination and maintain optimal system efficiency.
Engineering & Design
With its robust construction and user-friendly interface, the AK100 offers long-term stability even in harsh operating environments. It supports continuous hydrogen measurement and features dual-gas capability for detecting air or carbon dioxide, especially during purging processes.
The monitor comes with built-in diagnostics and automatic calibration to minimize downtime and reduce maintenance effort, and it offers multiple output options, allowing seamless integration into SCADA or DCS systems.
Key Features
- Accurate hydrogen purity measurement
- Continuous hydrogen monitoring
- Dual-gas capability (air or CO2 detection)
- For purging process verification
- Built-in diagnostics
- Automatic calibration
- SCADA and DCS integration outputs
- High sensitivity and fast response
- Long-term stability in harsh environments
Applications
- Power plants
- Hydrogen-cooled generators
- Chemical process gas monitoring
- Purging and inerting verification
- Hydrogen purity safety monitoring
Specifications
| Specification | Value |
|---|---|
| Manufacturer | ABB |
| Model | AK100 |
| Type | Hydrogen purity monitor |
| Measurement | Continuous hydrogen purity |
| Dual-Gas | Air or CO2 detection |
| Calibration | Automatic |
| Diagnostics | Built-in |
| Outputs | Multiple, SCADA/DCS compatible |
| Response | Fast, high sensitivity |
For generator protection, the ABB AK100 hydrogen purity monitor is the analysis solution, and Seven Star LLC supplies the ABB AK100 hydrogen purity monitor with integration support.
The ABB AK100 hydrogen purity monitor measures the hydrogen purity of the generator cooling gas with the thermal conductivity sensor. The monitor is installed in the gas line of the generator and the sample gas flows through the measuring cell. The control unit displays the purity percentage and provides the alarm for the low purity condition of the generator.
The monitor is calibrated with the reference gases and the zero point is verified during the commissioning. The alarm set points are programmed for the generator operation and the analog output is connected to the plant monitoring system. The AK100 is used for the hydrogen cooled generators of the power plants.
The AK100 monitor is installed with the sample line from the generator and the flow is controlled with the needle valve of the panel. The sensor cell is protected from the overpressure with the relief valve and the calibration is performed with the certified gas mixture. The alarm relays are wired into the generator protection circuit and the analog output is connected to the plant SCADA. The spare sensor cell is replaced during the generator outage.
The AK100 monitor is used for the hydrogen cooled generators and the purity measurement covers the filling and the operation of the machine. The sample conditioning unit keeps the gas flow and the pressure of the sensor constant. The alarm settings are documented for the generator protection and the calibration records are stored with the maintenance system.
The monitor is supplied with the fixing kit and the sample line adapters, and the installation is completed with the panel wiring and the gas connection of the generator.
Why Seven Star LLC
Seven Star LLC supplies the ABB AK100 hydrogen purity monitor for power and process projects across the Gulf, with verified specifications and technical support. Our team assists with application selection, output configuration, and integration planning.
We serve power plants and chemical facilities with reliable B2B supply of gas analysis instrumentation throughout the GCC.
Installation & Operation
The monitor is connected to the hydrogen system of the generator, and the continuous measurement verifies the purity of the cooling gas. The dual-gas capability detects air or carbon dioxide during purging operations.
Automatic calibration and the built-in diagnostics keep the measurement reliable, and the outputs integrate the monitor with the SCADA or DCS.
Why Hydrogen Purity Matters
In a hydrogen-cooled generator, purity affects both efficiency and safety. As air leaks in and purity falls, the density of the cooling gas rises, which increases windage and friction losses and reduces cooling performance. More importantly, a mixture of hydrogen and air can become flammable if purity falls too far. Continuous measurement allows operators to top up with fresh hydrogen in time and to take action on abnormal leakage.
Supporting Safe Purging
Before filling a generator with hydrogen, the air is displaced with carbon dioxide, and before opening the machine, the hydrogen is displaced with CO2 again before air is admitted. During these steps, the monitor confirms that each gas has been fully displaced before the next stage begins, so that hydrogen and air are never mixed inside the machine. Follow the generator manufacturer purging procedure and record the readings at each stage.
Installation and Commissioning
- Keep the sample line short and leak-tight, using suitable stainless steel tubing and fittings
- Set the sample flow within the range recommended by ABB
- Vent the sample outlet to a safe location according to site rules
- Check the hazardous area classification and the equipment certification at the installation point
- Verify the reading with certified test gases before putting the alarms into service
Maintenance and Troubleshooting
Unstable or drifting readings are usually caused by sample system problems such as a wrong flow rate, leaks, a blocked filter or moisture in the line, rather than by the analyzer itself. Check the sample system first, then verify the analyzer with test gas. Plan periodic checks during outages so the ABB AK100 hydrogen purity monitor stays reliable between overhauls.
Applications in Oman and the GCC
Large hydrogen-cooled turbine generators are used in several power stations in the region, where reliable purity monitoring is part of routine generator operation and outage planning.
Request a Quote for ABB AK100 Hydrogen Purity Monitor
For the ABB AK100 hydrogen purity monitor or any related control and instrumentation requirement, contact the Seven Star LLC team. Submit a formal inquiry through our RFQ page with your measurement range, connection and configuration, and our specialists will respond with a detailed commercial proposal and the official ABB documentation.
