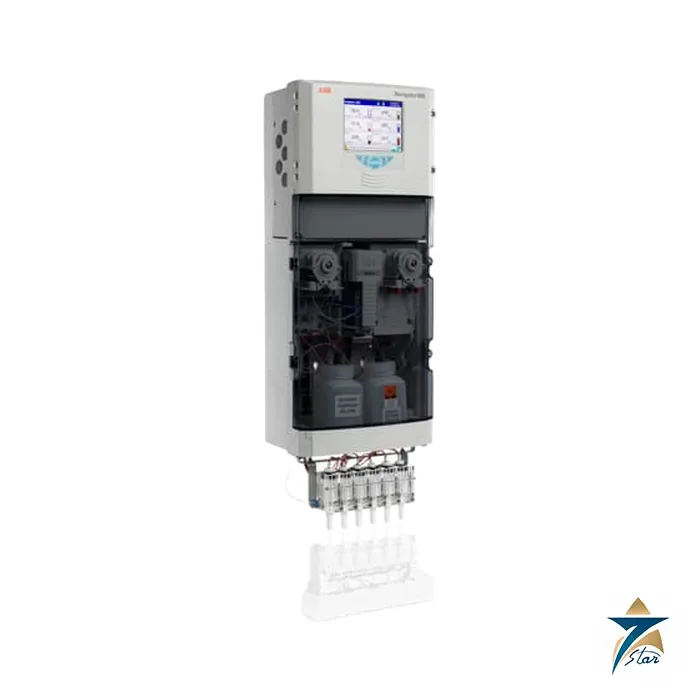

ABB Silica analyzer Navigator AW641
Overview
The ABB Silica Analyzer AW641 is an advanced and reliable silica analyzer designed for continuous monitoring of silica in water and steam systems. With high accuracy and low maintenance, the AW641 is perfect for industries such as power generation, semiconductor manufacturing, and water treatment facilities.
This analyzer utilizes advanced colorimetric technology, offering real-time measurements that ensure optimal efficiency in critical processes.
Engineering & Design
The AW641 includes a user-friendly touchscreen interface, intelligent diagnostics, and a modular design for easy maintenance. Its rugged construction and precise measurement capability make it ideal for harsh environments where reliable silica monitoring is critical.
The analyzer supports multiple communication protocols including Modbus and Profibus, allowing seamless integration into existing control systems, and automatic calibration and reagent management help reduce manual intervention and improve uptime.
Key Features
- Continuous silica monitoring
- Advanced colorimetric technology
- High accuracy, low maintenance
- User-friendly touchscreen interface
- Intelligent diagnostics
- Modular design for easy maintenance
- Modbus and Profibus communication
- Automatic calibration
- Reagent management
Applications
- Boiler water monitoring
- Steam system silica control
- High-purity water processes
- Power generation
- Semiconductor manufacturing
Specifications
| Specification | Value |
|---|---|
| Manufacturer | ABB |
| Model | Navigator AW641 |
| Type | Silica analyzer |
| Technology | Colorimetric |
| Display | Touchscreen |
| Protocols | Modbus, Profibus |
| Calibration | Automatic |
| Design | Modular, rugged |
| Diagnostics | Intelligent |
For water chemistry, the ABB AW641 silica analyzer is the continuous monitor, and Seven Star LLC supplies the ABB AW641 silica analyzer with application support.
The AW641 analyser measures the silica content of the boiler water with the colorimetric method.
The ABB AW641 silica analyzer measures the silica concentration of the boiler water with the colorimetric method. The analyzer takes the sample from the steam and the water cycle and the reagent is added for the color development. The photometric cell measures the color intensity and the control unit calculates the silica content in the µg/kg range.
The analyzer runs the automatic calibration cycles with the standard solutions and stores the measured values in the memory. The alarm output is set for the silica limit of the boiler operation and the readings are transferred to the plant DCS over the analog output. The reagent and the spare parts of the AW641 are available for the continuous operation of the analyzer.
The sample conditioning system of the analyzer includes the filter and the flow control of the line, and the maintenance covers the reagent replacement and the cleaning of the measuring cell. The analyzer head and the control unit are mounted on the wall panel of the water chemistry lab.
The AW641 analyzer is installed in the water chemistry laboratory and the sample is drawn from the boiler drum line with the sample conditioning rack. The reagent containers are connected to the analyzer head and the reagent level is monitored by the system. The measured values and the calibration records are stored in the internal memory and the data are exported to the plant database. The analyzer covers the continuous silica monitoring of the steam cycle.
The AW641 analyzer is operated with the reagent kit of the water cycle and the calibration is performed with the zero and the standard solutions. The measuring cycle is programmable for the continuous and the interval operation. The analyzer reports the maintenance alarm when the reagent is low and the spare reagent set is replaced during the routine visit.
Why Continuous Silica Monitoring Matters
Silica carryover from boiler water into steam is one of the most damaging contaminants in power generation and high-pressure steam systems, since it can deposit on turbine blades under high temperature and pressure, reducing turbine efficiency and requiring costly outages for cleaning or blade replacement. Continuous, low-level silica monitoring in the low microgram-per-kilogram range allows plant chemists to detect a developing silica excursion before it reaches levels that risk turbine deposition, giving operators time to adjust blowdown rates, condensate polishing or makeup water treatment before damage occurs.
Because silica measurement at these trace levels is sensitive to reagent quality, sample conditioning and calibration discipline, the AW641’s automatic calibration cycles and reagent management features are particularly valuable for plants that cannot dedicate a full-time chemist to manual silica testing. This is especially important in combined-cycle and cogeneration plants, where boiler chemistry excursions can have an outsized impact on turbine reliability relative to the staffing typically allocated to water chemistry monitoring.
Reagent and Consumable Planning
As with any colorimetric analyzer, the AW641 depends on a consistent supply of fresh reagent to maintain measurement accuracy, and reagent degradation over time or improper storage can introduce measurement bias well before the reagent is visibly exhausted. Plants operating the AW641 as part of a critical boiler water monitoring program should plan reagent replenishment on a fixed schedule tied to expected consumption rates rather than waiting for a low-reagent alarm, since running close to reagent depletion increases the risk of a monitoring gap during an unplanned delivery delay.
Why Seven Star LLC
Seven Star LLC supplies the ABB Navigator AW641 silica analyzer for water chemistry projects across the Gulf, with verified specifications and technical support. Our team assists with application selection, communication setup, and reagent planning.
We serve power and water customers with reliable B2B supply of water analysis instrumentation throughout the GCC.
Installation & Operation
The analyzer measures the silica in the water and steam samples with colorimetric technology, and the results are displayed on the touchscreen and transmitted over Modbus or Profibus to the control system.
Automatic calibration and reagent management reduce the manual workload, and the modular design simplifies the maintenance of the analyzer.
Request a Quote for ABB Silica analyzer Navigator AW641
For the ABB AW641 silica analyzer or any related control and instrumentation requirement, contact the Seven Star LLC team. Submit a formal inquiry through our RFQ page with your measurement range, connection and configuration, and our specialists will respond with a detailed commercial proposal and the official ABB documentation.
