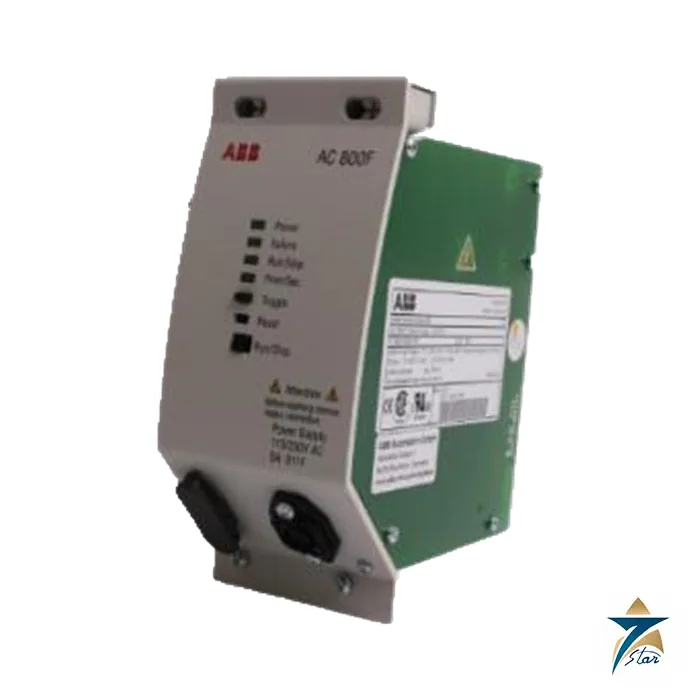

ABB AC 800F Power Supply Module SA 811F (3BDH000013R1)

Name: ABB AC 800F Power Supply SA811F | Seven Star LLC
Brand: ABB

Description

Overview: Powering the Fieldbus Controller Backbone

The ABB AC 800F Power Supply Module SA 811F, part number 3BDH000013R1, provides the necessary power for the CPU boards, Ethernet modules, and fieldbus modules within an ABB Freelance AC 800F field controller. Used together with the PM 802F or PM 803F base unit, the SA 811F is the module that keeps the controller’s Ethernet and communication interfaces energized, making it a critical component in any AC 800F station rather than optional accessory.

As a trusted supplier of ABB Freelance automation components, Seven Star LLC sources and supplies the SA 811F power supply module to refineries, chemical plants, and process facilities across Oman and the wider GCC operating AC 800F field controllers. Because power supply failures directly threaten controller availability, Seven Star LLC helps plant maintenance teams source replacement modules to hold as spares.

Working Principle: Self-Regulating, Isolated Power Conversion

The SA 811F accepts a wide input voltage range of 115/230 VAC with automatic self-regulation, meaning the module adapts to either voltage without manual switch-setting, and delivers a galvanically isolated 5V DC output to the AC 800F controller’s internal boards. This electrical isolation between the incoming mains supply and the controller’s internal DC rails protects sensitive CPU and communication electronics from mains-borne transients and noise, a standard practice in industrial power supply design for control system reliability.

Built-in power failure prediction and shutdown procedures allow the module to detect an impending power loss and initiate an orderly shutdown sequence rather than abrupt, uncontrolled loss of power, protecting controller memory and process state. Status LEDs on the module indicate both power supply health and AC 800F field controller operating status, giving maintenance technicians an immediate visual diagnostic without needing to connect a laptop or engineering tool.

Engineering Design of the SA 811F

The SA 811F includes short-circuit protection with current limiting, preventing a downstream fault from damaging the power supply itself or cascading into other controller modules. The module provides standby energy reserve in the event of a mains supply interruption, giving the controller a brief ride-through window during momentary power dips or interruptions rather than immediate hard shutdown.

Designed for compact integration within the AC 800F rack alongside the PM 802F or PM 803F base unit and associated Ethernet and fieldbus modules, the SA 811F fits the same modular, scalable mechanical architecture that characterizes the broader AC 800F field controller family, allowing straightforward like-for-like replacement during maintenance without requiring a full base unit change.

Key Features

The ABB AC 800F Power Supply Module SA 811F delivers reliable, self-regulating power for the field controller. Key characteristics include:

Self-regulating 115/230 VAC input with galvanically isolated 5V DC output.
Compatible with PM 802F and PM 803F AC 800F base units.
Power failure prediction with orderly shutdown procedures.
Status LEDs indicating power supply and field controller operating status.
Short-circuit protection with current limiting.
Standby energy reserve for momentary mains interruption ride-through.
Compact modular design for integration within the AC 800F rack.

Industrial Applications

The SA 811F power supply module is a required component wherever an ABB Freelance AC 800F field controller is deployed, including refinery process units, chemical plants, and general process facilities using AC 800F’s distributed fieldbus architecture (PROFIBUS, FOUNDATION Fieldbus, or HART) for field device connectivity. Because the AC 800F is often installed directly in the field in a breakout box as well as in the control room, reliable, self-regulating power conversion is essential to controller uptime in both installation styles.

Seven Star LLC supports refinery instrumentation teams, chemical plant operators, and process facility maintenance departments across Oman, Muscat, Sohar, and the broader GCC region with sourcing of ABB AC 800F power supply modules, helping plants maintain continuous field controller availability.

Technical Specifications

The table below summarizes the core specifications of the ABB AC 800F Power Supply Module SA 811F as supplied by Seven Star LLC.

Parameter	Specification
Model	SA 811F, P/N 3BDH000013R1
Function	Power supply for AC 800F CPU, Ethernet, and fieldbus modules
Input Voltage	115/230 VAC (self-regulating)
Output Voltage	5V DC, galvanically isolated
Compatible Base Units	PM 802F, PM 803F
Protection	Short-circuit protection, current limiting
Diagnostics	Status LEDs for power supply and controller status
Target Platform	ABB Freelance AC 800F Field Controller

Why Choose Seven Star LLC for ABB Freelance Power Supply Modules

Sourcing a replacement power supply card for an ABB Freelance AC 800F controller is not a generic parts purchase — firmware revision, backplane slot compatibility, and redundancy configuration all have to line up with the exact controller build already running on site. Seven Star LLC verifies these compatibility details with your engineering team before shipment, so the SA 811F module you receive integrates cleanly into an existing AC 800F rack rather than triggering a configuration mismatch during a planned changeout or an unplanned failure. For operators across Muscat, Sohar, and the wider GCC running continuous-process DCS platforms, we also help plan critical-spare inventory for Freelance power modules alongside related I/O and communication cards, so a single module failure never becomes an extended shutdown while a replacement is sourced internationally.

Request a Quote for ABB AC 800F Power Supply Module SA 811F (3BDH000013R1)

Seven Star LLC supplies the ABB AC 800F Power Supply Module SA 811F with datasheet documentation and regional technical support. Contact our automation division for a formal B2B quotation, to confirm compatibility with your existing AC 800F base unit, or to obtain the complete technical datasheet.Seven Star LLC supplies this item on request with the manufacturer documentation, and availability and lead time are confirmed at quotation.
