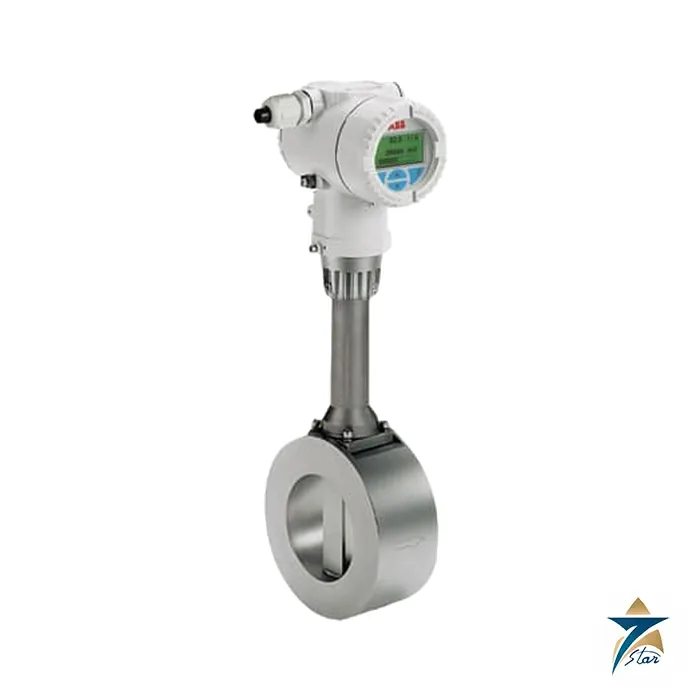

ABB VortexMaster FSV430 Vortex Flowmeter

Overview

The ABB VortexMaster FSV430 vortex flowmeter is designed for flow measurement of liquids, gases and vapors in pipes from DN 15 to DN 300 (1/2 to 12 in). It measures flow by detecting the frequency of vortices shed by a bluff body in the flow stream, providing a measurement with no moving parts that requires virtually no maintenance. Measuring accuracy is better than +/-0.65% of measured value for liquids and +/-0.9% for gases and vapors under reference conditions, with repeatability of 0.3% at DN 15, 0.2% for DN 25 to 150 and +/-0.25% from DN 200 upward.

Engineering and Design

The FSV430 provides a 4-20 mA output with HART 7 communication, powered from 12 to 42 V DC with less than 1 W consumption. Damping is adjustable from 0 to 100 s, and a low-flow cut-off between 0 and 20% suppresses false readings at zero flow. In the event of an alarm, the current output can be set to 21-23 mA per NAMUR NE43. External pressure or temperature transmitters can be read through HART burst mode for compensation (the 4-20 mA analog input and energy flow mode belong to the FSV450), and it is SIL-qualified with an overall safety accuracy of +/-4% of measuring range.

The FSV430 is offered in wafer and flanged versions with DIN flanges PN 10-40 and ASME Class 150/300, and handles standard medium temperatures from -55 to 280 C (-67 to 536 F) with high-temperature options for steam service. Electronics are rated IP66/IP67 and NEMA 4X, with approvals including ATEX, IECEx, cFMus and NEPSI for hazardous areas. Options include an integral Pt100 sensor for temperature-compensated mass flow, an oxygen service (degreased) configuration and increased EMC protection, and devices are available with HART or Modbus communication with remote transmitter mounting up to 30 m (98 ft) of signal cable.

Key Features

• Vortex shedding principle with no moving parts and minimal maintenance
• Accuracy +/- 0.65% for liquids and +/- 0.9% for gases/vapors
• Sizes DN 15 to DN 300 (1/2 to 12 in) in wafer and flanged versions
• HART 7 communication with 4-20 mA output and 12-42 V DC supply
• Damping 0-100 s and low-flow cut-off 0-20% for stable process control
• NAMUR NE43 compliant alarm output (21-23 mA)
• HART input for an external pressure or temperature transmitter (burst mode) for compensation
• Medium temperature -55 to 280 C standard with high-temperature options
• IP66/IP67 and NEMA 4X with ATEX, IECEx, cFMus and NEPSI approvals
• Oxygen service (degreased) and optional integral Pt100 temperature sensor

Applications

Flow measurement of liquids, gases and vapors including steam in chemical, petrochemical, oil and gas, power and HVAC applications, with an option for oxygen service.

Specifications

FSV430 Sizing Limits, Accuracy by Operating Mode and Straight-Run Requirements

ABB builds the FSV430 as a flanged meter from DN 15 to DN 300 (1/2 to 12 in) and as a wafer meter from DN 25 to DN 150 (1 to 6 in). Flanged devices with O-ring gasket are rated PN 10 to 40 or ASME Class 150/300 as standard, with PN 160 or Class 900 on request; wafer devices are rated PN 63 or Class 150/300. The measuring range tables give, for water, 3.1 to 75 m³/h at DN 50 and 135 to 2600 m³/h at DN 300, and for air at atmospheric conditions 23.4 to 630 m³/h at DN 50.

Accuracy depends on the operating mode. For liquids it is ±0.65% of measured value in operating volume and ±0.75% in standard volume or mass. For gases it is ±0.90% in operating volume and ±1.00% in standard volume or mass when a 0.1% pressure transmitter is used. Saturated or superheated steam mass is ±2.60% with the internal temperature sensor alone and ±1.10% with an external pressure measurement added. Reproducibility is 0.3% at DN 15, 0.2% from DN 25 to DN 150 and 0.25% from DN 200 to DN 300.

These figures apply in the linear range above the minimum Reynolds number, with 15 pipe diameters of straight inlet and 5 diameters of outlet, and a pressure tapping 3 to 5 diameters downstream. The typical measuring span is 1:20. Liquid viscosity is limited to 4 mPa s at DN 15, 5 mPa s at DN 25 and 7.5 mPa s from DN 40. The standard sensor covers -55 to +280 °C and the optional high-temperature version reaches +350 °C. Response time is 200 ms or three vortex periods, whichever is greater.

FSV430 Transmitter Variants, Communication and Functional Safety Data

The FSV430 is the entry model of the pair: its Pt100 class A temperature sensor and its digital output are options, whereas both are standard on the FSV450. The transmitter is offered with 4-20 mA HART 7, Modbus RTU, PROFIBUS PA, FOUNDATION Fieldbus or Ethernet-APL carrying PROFINET, Modbus TCP and a web server. HART devices need 12 to 42 V DC, rising to 13.6 V with surge protection and 14.2 V with the SIL or enhanced EMC option, while Modbus devices need 9 to 30 V DC. Power consumption is below 1 W, and the remote version allows 30 m of signal cable.

For safety loops ABB gives a full IEC 61508 assessment: SIL 2, systematic capability 2, hardware fault tolerance 0, type B, low demand mode. The safe failure fraction is 96.08% for the integral design and 96.05% for the remote design, with a recommended proof test interval of two years. Explosion protection is available as Ex ec, Ex ia and Ex db ia under ATEX, IECEx and NEPSI, and as NI, IS and XP-IS under cFMus.

Why Seven Star LLC

Seven Star LLC supplies ABB flow instruments with verified factory specifications across Oman and the GCC. Our engineers assist with sizing, material selection and options such as oxygen service, HART or Modbus communication for your process.

Technical Overview

The ABB VortexMaster FSV430 is a vortex flowmeter that measures flow using the Kármán vortex-shedding principle: a bluff body placed in the flow stream sheds alternating vortices downstream, and a piezoelectric sensor detects the resulting pressure oscillations, generating an electrical pulse train whose frequency is directly proportional to flow velocity. Per ABB’s official datasheet, the FSV430 is available in flanged versions covering DN15–300 (½″–12″) and wafer versions covering DN25–150 (1″–6″), with accuracy of ±0.65% for liquids and ±0.9% for gases/vapors under reference conditions, repeatability of ±0.25–0.3% depending on size, and a typical turndown ratio of approximately 1:20.

Process connections include flanges to DIN PN10–PN160 or ASME Class 150–900, with wafer-type connections up to PN63 as standard (PN100 available on request). Wetted parts are available in stainless steel 1.4571 as standard, with Hastelloy C available for more corrosive service, and gasket materials of PTFE, Kalrez®, or graphite depending on the process fluid and temperature. The housing is epoxy-coated aluminum or stainless steel CF3M. Output signal is 4–20 mA with HART 7 as standard, with optional Modbus RTU, PROFIBUS PA, or FOUNDATION Fieldbus digital communication, plus a configurable pulse/frequency/alarm digital output. Temperature range is −55°C to +280°C standard, extending to +350°C with the high-temperature option. The FSV430 carries ATEX, IECEx, cFMus, and NEPSI explosion-protection approvals, IP66/67 (NEMA 4X) ingress protection, SIL2 functional-safety capability, and compliance with the EU Pressure Equipment Directive.

Ordering Notes

When requesting a quotation, please provide the process fluid type, expected flow rate range, pipe size, operating pressure and temperature, and any required hazardous-area certification or communication protocol, so Seven Star LLC can confirm the correct FSV430 configuration, including body style, wetted-parts material, and gasket selection, before shipment.

Why Vortex Technology Reduces Maintenance Costs

Because the FSV430 has no moving parts in the flow path, unlike a mechanical turbine or positive-displacement meter, it avoids the bearing wear and mechanical fatigue failures that require periodic overhaul in mechanical flow meter designs. This translates into a lower total cost of ownership over the meter’s service life, particularly valuable in continuous-duty steam and process gas applications where meter downtime for maintenance can disrupt an entire production unit’s operation.
