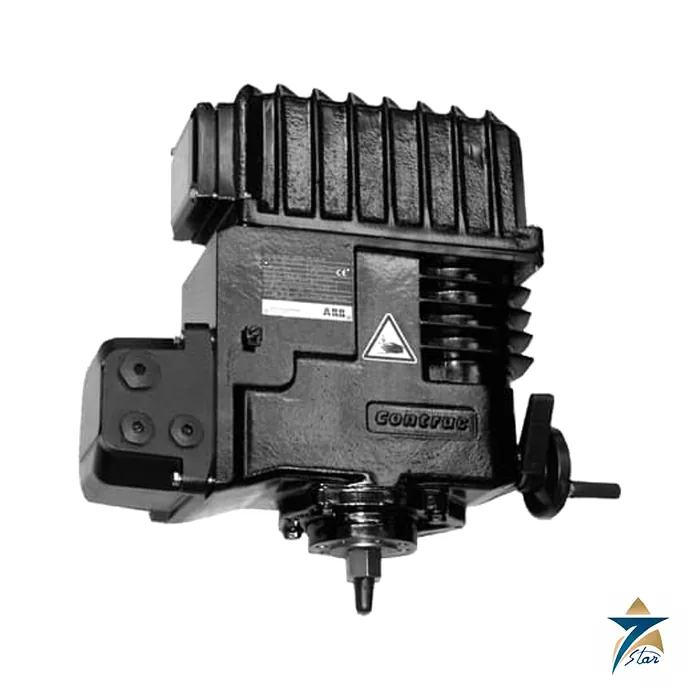

ABB Contrac LME620-AI/-AN Electric Linear Actuator

Overview

The ABB Contrac LME620-AI/-AN is an electric linear actuator engineered for precise, stall-proof positioning in industrial process control valves and dampers. Delivering 4 kN (900 lbf) of rated thrust with an adjustable stroke, the LME620 replaces pneumatic actuation on control loops where electric power is more practical to route than instrument air, without sacrificing positioning accuracy.

As part of ABB’s Contrac electric actuator range, the LME620 is built for continuous industrial duty in harsh environments. Seven Star LLC supplies the LME620 to process, power, and utility facilities across Oman and the GCC.

Operating Principle

The LME620 converts electric motor rotation into linear thrust through an internal drive mechanism, positioning a valve stem or damper linkage in direct response to a control signal from the electronic unit. Its stall-proof design, rated S9-100% duty per IEC 60034-1/EN 60034-1, allows the actuator to hold position against process forces indefinitely without overheating or requiring thermal derating — a key requirement for continuous modulating control service.

Engineering Design of the ABB Contrac LME620

The LME620 delivers a rated force of 4 kN (900 lbf), adjustable to 50%, 75%, or 100% of rated output to match the actual valve or damper load. Stroke length is configurable from a minimum of 0–12mm up to a maximum of 0–60mm, with a standard operating speed of 2mm/s, adjustable between 0.1 and 2.0mm/s to match process response requirements. The actuator is powered by 115VAC (94–130V) or 230VAC (190–260V) single-phase supply at 47.5–63Hz, and its housing is rated IP66 and NEMA 4X for protection against dust, washdown, and outdoor exposure.

Key Features

• 4 kN (900 lbf) rated thrust, adjustable to 50/75/100% of output
• Configurable stroke from 0–12mm minimum up to 0–60mm maximum
• Adjustable speed from 0.1 to 2.0mm/s (2mm/s standard)
• Stall-proof S9-100% continuous duty rating
• 115VAC or 230VAC single-phase power options
• IP66 and NEMA 4X rated enclosure
• Operating temperature to 55°C (LME620-AI) or 65°C (LME620-AN)
• Low-temperature variants available to −25°C
• Precise electric positioning without instrument air

Industrial Applications

The LME620 is specified for control valve and damper positioning in power generation, water treatment, and process plants across Muscat, Sohar, and Salalah, particularly where instrument air is unavailable, costly to route, or where a facility is standardizing on electric actuation for maintenance simplicity. Its stall-proof continuous-duty rating suits modulating control loops that hold intermediate positions for extended periods.

Across the GCC’s power and process industries, the LME620’s IP66/NEMA 4X rating and wide operating temperature range make it suitable for outdoor installation in harsh desert conditions, while its adjustable force, stroke, and speed settings let a single actuator model cover a range of valve and damper sizes.

Technical Specifications

Specifying the Actuator

Before ordering, collect the data needed to match the actuator to the valve or damper: the required thrust with a sensible margin over the valve or damper force, the stroke length, the required positioning speed, the mounting interface to the valve yoke or linkage, the available supply voltage and the ambient temperature range at the installation. Also confirm the control signal and position feedback expected by the DCS, and the behaviour required on loss of signal or power, since this affects how the electronic unit is configured. For replacements, the model code on the nameplate of the existing unit is the most reliable starting point.

Installation and Commissioning

• Mount the actuator on a rigid bracket or yoke and check that the actuator stem and valve stem are aligned to avoid side loading
• Bring power and signal cables in through suitable glands, keeping signal wiring separated from power cabling
• Set the stroke limits and force setting to suit the valve, starting with the lower force setting where practical
• Stroke the valve through its full range and check that the position reported to the control system matches the actual position
• Adjust the speed to suit the loop dynamics and avoid unnecessary hunting

Maintenance and Troubleshooting

Electric actuators need little routine maintenance compared with pneumatic systems, but periodic checks of cable entries, enclosure seals and mounting bolts are still worthwhile, especially outdoors. If the actuator stalls or does not reach its end positions, check the valve for tight packing or debris before increasing the force setting. Erratic positioning often points to a noisy or unstable control signal, while a position mismatch may call for recalibration of the stroke. Record the settings after commissioning so that a replacement ABB Contrac LME620 actuator can be configured identically.

Applications in Oman and the GCC

Power stations, desalination plants and water networks in the region often have control valves in remote or outdoor locations where instrument air is unavailable or difficult to maintain. Electric actuation with a sealed enclosure suits these sites, provided the operating temperature range is checked against local ambient conditions and direct sun exposure.

Sourcing from Seven Star LLC

Seven Star LLC supplies ABB Contrac actuators for process and utility plants in Oman and the GCC. Send your valve data and supply details, and our team will help confirm the actuator configuration.

Request a Quote for ABB Contrac LME620-AI/-AN Electric Linear Actuator

Contact Seven Star LLC to request a quotation for the ABB Contrac LME620-AI/-AN electric linear actuator and to confirm the correct stroke, force, and power configuration for your valve or damper. Our engineering team, serving Oman and the GCC, can help specify the right Contrac actuator for your application.
