ABB PSR30-600-70 Soft Starter 30A

Overview

ABB PSR30-600-70 is a compact electronic soft starter from ABB’s PSR series, built to provide controlled, stepless starting and stopping for three-phase induction motors up to 600V main voltage at a rated current of 30A (28A FLA). Designed as ABB’s most compact soft starter platform with genuinely useful functionality rather than a stripped-down basic unit, the PSR series covers motor currents from roughly 3A up to 105A and supports up to 100 starts per hour, making the PSR30-600-70 a practical fit for pumps, fans, compressors, and conveyors that need to avoid the mechanical and electrical stress of a direct-on-line start without the cost and complexity of a full variable frequency drive.

With fast quotation turnaround and technical support, Seven Star LLC proudly supplies the PSR30-600-70 soft starter to industrial and utility customers across Oman and the wider GCC. Every unit is supplied with manufacturer documentation and Seven Star’s own local technical support, giving procurement teams a formal quotation for critical motor-starting equipment.

Operating Principle

The ABB PSR30-600-70 controls motor starting by using back-to-back thyristors (SCRs) in each phase to progressively increase the voltage applied to the motor terminals over an adjustable ramp time, rather than applying full line voltage instantaneously as a direct-on-line contactor would. By phase-controlling the firing angle of the thyristors, the soft starter limits inrush current and starting torque to levels the application actually needs, reducing mechanical shock on couplings, belts, gearboxes, and driven equipment while also limiting the voltage dip that a large motor’s inrush current would otherwise impose on the local electrical supply. Once the motor reaches full speed, an integrated bypass relay closes to carry running current through a low-loss mechanical contact rather than through the thyristors, cutting heat dissipation and improving overall efficiency during normal running.

This controlled-torque starting approach is what makes soft starters the preferred choice over simple star-delta or direct-on-line starting for pumps prone to water hammer, fans with high-inertia loads, and compressors sensitive to mechanical shock loading. Because the PSR series also provides a controlled, adjustable stop ramp, it reduces the pressure transients associated with abruptly stopping a pump, a benefit that direct-on-line starting and even many basic soft starters do not offer with the same level of adjustability.

Engineering Design of the ABB PSR30-600-70

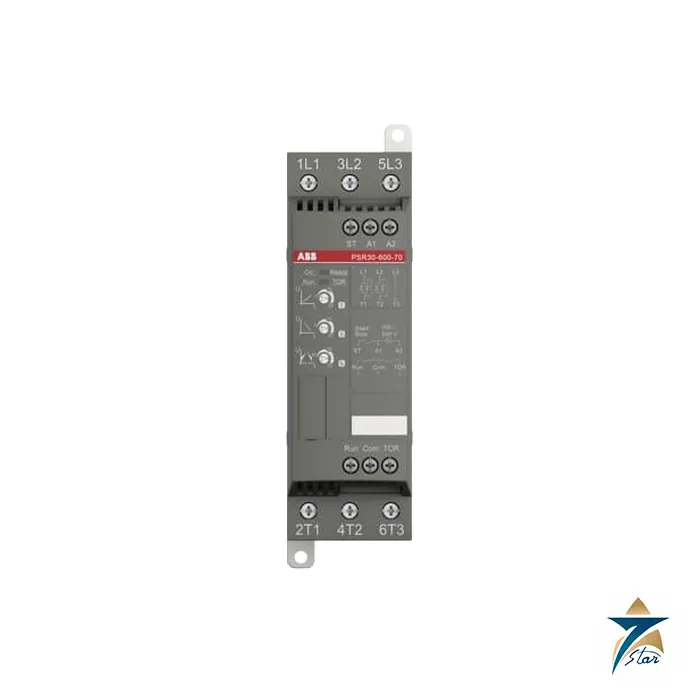

The ABB PSR30-600-70 is built into ABB’s compact PSR enclosure, designed for DIN-rail or panel mounting with clearly labeled line (1L1, 3L2, 5L3) and motor (2T1, 4T2, 6T3) terminal blocks for straightforward panel wiring. The front face carries potentiometer-style adjustment dials for start ramp time, stop ramp behavior, and current limit, along with status LEDs indicating on/ready, run, and top-of-ramp conditions, so a maintenance technician can verify operating state at a glance without connecting a laptop or handheld programmer. A separate control-voltage terminal block accepts 100–240V AC at 50/60Hz, independent of the 208–600V main power circuit, which simplifies control wiring in panels where control voltage differs from motor supply voltage.

Internally, the back-to-back thyristor pairs per phase are sized and heat-sinked for the unit’s 30A/28A FLA continuous rating, with the enclosure’s compact PSR form factor keeping panel footprint to a minimum compared with larger PST/PSTB soft starters in the same ABB family. Run, common, and top-of-ramp (TOR) auxiliary contacts are provided for interfacing with a PLC, motor control center, or building management system, allowing the soft starter’s status to be monitored remotely as part of a larger automation scheme.

Key Features

The ABB PSR30-600-70 delivers dependable, adjustable motor starting in one of ABB’s most compact soft starter enclosures. Key features include:

• 30A rated current (28A FLA) for three-phase motors up to 600V main voltage.
• Independent 100–240V AC, 50/60Hz control supply voltage terminal block.
• Adjustable start ramp, stop ramp, and current-limit potentiometer controls on the front face.
• Integrated bypass relay reducing heat dissipation and improving efficiency once the motor is running.
• Supports up to 100 starts per hour for demanding duty-cycle applications.
• Run, Common, and Top-of-Ramp (TOR) auxiliary contacts for PLC and MCC integration.
• Compact DIN-rail or panel-mount enclosure minimizing control-panel footprint.
• Controlled, adjustable stop ramp reducing pressure transients and mechanical shock on pump systems.

Industrial Applications

The ABB PSR30-600-70 is well suited to pump stations, HVAC and process fans, air and refrigeration compressors, and conveyor systems where a controlled start meaningfully extends equipment life and reduces electrical supply disturbance. Across Oman’s water and utility infrastructure, industrial pump stations and compressor rooms in the Sohar and Salalah economic zones use PSR-class soft starters of this rating to limit inrush current on shared electrical feeders, reduce water-hammer risk on pipeline pump starts, and cut mechanical wear on belt-driven fan and compressor systems that would otherwise see repeated direct-on-line starting stress.

With engineering support in Muscat, Seven Star LLC supplies the PSR30-600-70 soft starter to utility operators, industrial maintenance teams, and panel builders throughout Oman and the GCC, supporting projects from Muscat’s municipal water infrastructure to process facilities across the wider Gulf region. Lead time and availability are confirmed at quotation so a failed starter replacement can be planned, and Seven Star’s automation division supports engineers in confirming the correct PSR rating for their specific motor and duty cycle.

Technical Specifications

The table below summarizes the key manufacturer-published ratings for the ABB PSR30-600-70 soft starter, and every ABB PSR30-600-70 unit sold by Seven Star LLC matches this exact factory specification.

Request a Quote for ABB PSR30-600-70

Seven Star LLC invites plant engineers, panel builders, and procurement teams across Oman and the GCC to submit a formal RFQ for the ABB PSR30-600-70 soft starter; availability and lead time for the ABB PSR30-600-70 are confirmed at quotation. Seven Star LLC supplies on request with lead time confirmed at quotation, provides the ABB technical datasheet for engineering review, and connects buyers directly with our automation division for sizing, technical, and retrofit support. Contact Seven Star LLC today to request pricing, lead times, and full technical documentation for your next motor-starting procurement.
