ABB Electrical rotary actuator RHD16000 (Contrac)
Overview

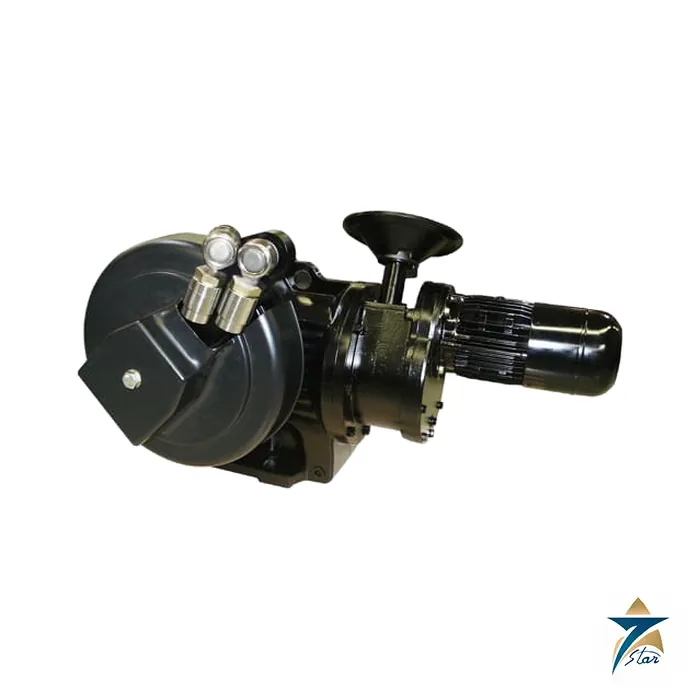

The ABB RHD16000 (Contrac RHD16000) is the heavy-duty top of ABB’s RHD electric rotary actuator range, delivering 16000 Nm (11,800 lbf-ft) of rated torque for the largest quarter-turn valves and dampers in industrial process service. It replaces hydraulic or large pneumatic rotary actuators on high-torque duty where electric power is more practical to route and maintain.
Seven Star LLC supplies the RHD16000 to power generation, oil and gas, and heavy process facilities across Oman and the GCC, helping specify the correct high-torque actuator for large valve and damper installations.
Operating Principle
The RHD16000 converts electric motor rotation into rotary output torque, driving a large valve or damper shaft between end positions in response to a control signal from its dedicated Contrac electronic unit. Its stall-proof S9-100% duty rating, per IEC 60034-1/EN 60034-1, lets the actuator hold an intermediate modulating position indefinitely under high load without thermal derating, with rotation angle field-configurable between 35° minimum and 270° maximum around a typical 90° quarter-turn setting.
Engineering Design of the ABB Contrac RHD16000
The RHD16000 delivers 16000 Nm of rated torque, adjustable to 0.5, 0.75, or 1.0 times rated output to match the actual valve or damper load. Travel time for a 90° stroke is adjustable from 30 to 900 seconds, with operating speed adjustable from 3.0 down to 0.1°/s for precise large-valve positioning. It is powered by 115VAC (94–130V) or 230VAC (190–260V) single-phase supply at 47.5–63Hz, housed in an IP66/NEMA 4X-rated enclosure, and operates standard across −10°C to 65°C, with higher-temperature variants available.
Key Features
- 16000 Nm (11,800 lbf-ft) rated torque, adjustable to 0.5/0.75/1.0×
- Field-configurable rotation angle, 35° to 270° (90° typical)
- Adjustable 90° travel time, 30–900 seconds
- Stall-proof S9-100% continuous duty rating
- 115VAC or 230VAC single-phase power
- IP66 and NEMA 4X rated enclosure
- Higher-temperature variants available beyond standard −10°C to 65°C
- Top-of-range torque for the largest quarter-turn valves and dampers
- Eliminates need for hydraulic power units on high-torque duty
Industrial Applications
The RHD16000 is specified for the largest quarter-turn butterfly valves, dampers, and isolation valves in power generation, oil and gas, and heavy process facilities across Muscat, Sohar, and Salalah, where the required torque exceeds what a hydraulic-alternative electric actuator in the RHD1250 or RHD4000 class can provide. It is commonly used on large flue-gas dampers, major process isolation valves, and cooling water intake valves.
Across the GCC’s power and heavy industrial sectors, the RHD16000’s stall-proof continuous-duty rating and IP66/NEMA 4X enclosure make it suitable for outdoor, high-duty installation on critical large-diameter valves where reliable electric actuation replaces a maintenance-intensive hydraulic system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ABB Contrac RHD16000 |
| Rated Torque | 16000 Nm (11,800 lbf-ft), adjustable 0.5/0.75/1.0× |
| Rotation Angle | 35° to 270° (90° typical) |
| Travel Time (90°) | 30–900 seconds, adjustable |
| Power Supply | 115VAC (94–130V) or 230VAC (190–260V), single-phase |
| Duty Cycle | S9-100% stall-proof continuous |
| Protection Rating | IP66 / NEMA 4X |
| Operating Temperature | −10°C to 65°C standard, higher-temp variants available |
Specifying a High-Torque Actuator
At the top of the RHD range, correct sizing matters because the valves are large and often critical to plant availability. Start with the valve maker’s torque data across the full stroke, including breakaway under maximum differential pressure, and apply the project safety factor. The ABB RHD16000 torque can then be set to 0.5, 0.75 or 1.0 times rated output to protect the valve train. Also check the weight and support of the actuator on the valve, since large rotary actuators can impose significant loads on the valve body and mounting bracket.
- Confirm shaft dimensions, keyway and mounting interface, and whether a gearbox adapter or lever linkage is needed.
- Check the required stroke time for process safety studies, including any fast-closing requirement.
- Confirm ambient conditions, as higher-temperature variants are available for hot locations.
- For replacement units, quote the full type code from the nameplate and the electronic unit model.
Handling and Installation
Plan lifting with suitable rigging and lifting points before delivery reaches site. Mount the actuator with the valve in a defined position and align the coupling carefully, as misalignment on high-torque drives can damage bearings and seals. Use appropriately rated glands for power and signal cables, and route signal cables away from motor power wiring.
Commissioning Steps
- Verify supply voltage and earthing before first power-up.
- Set end positions and rotation angle through the Contrac electronic unit.
- Set the torque limit and travel time to match the valve and process requirements.
- Stroke the valve locally, then from the DCS, and confirm feedback and alarm signals.
Maintenance and Reliability
Large damper and valve drives often run continuously in hot, dusty service. Include cover seal inspection, cable entry checks and a review of the electronic unit’s diagnostics in routine rounds. Rising torque during stroking can warn of damper bearing wear or valve seat problems before a trip occurs. On critical services, holding a spare actuator or electronic unit reduces recovery time.
Heavy-Duty Applications in the GCC
Power stations, desalination plants and gas processing facilities in Oman and the wider Gulf use very large butterfly valves and flue-gas dampers. Electric actuation at this torque level removes the need for hydraulic power packs and their oil leaks, filters and accumulators, simplifying long-term maintenance at remote sites.
Working with Seven Star LLC
Seven Star LLC supplies Contrac actuators and electronic units for large-valve projects and plant upgrades. Share the valve torque data or existing nameplate details, and our engineers will help confirm a suitable configuration.
Request a Quote for ABB Electrical rotary actuator RHD16000 (Contrac)
Contact Seven Star LLC to request a quotation for the ABB Contrac RHD16000 heavy-duty electric rotary actuator and to confirm the correct torque and rotation configuration for your large valve or damper. Our engineering team, serving Oman and the GCC, can help select the right RHD-series actuator for your highest-torque applications.
Browse the full ABB range or see more Valve Actuator products supplied by Seven Star LLC in Oman and the GCC.
