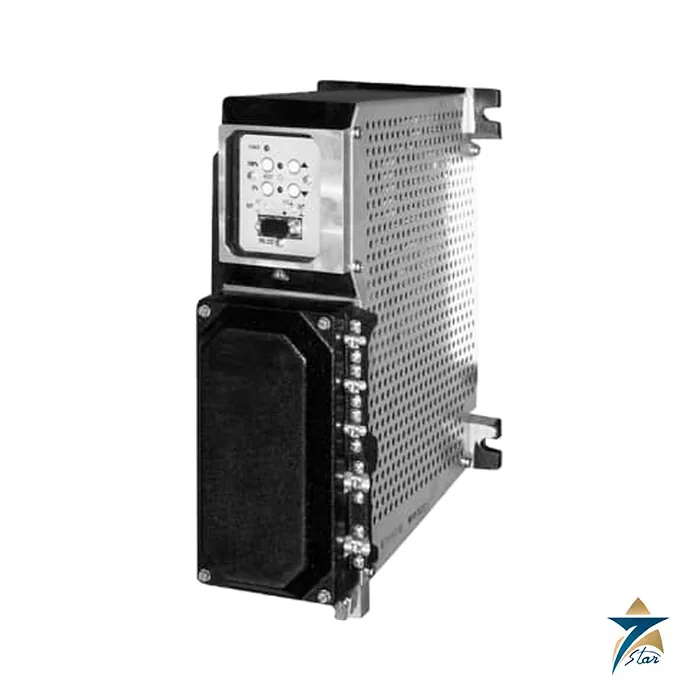

ABB Electronic unit EAS822

Overview

The ABB EAS822 electronic unit is a precision-engineered electronic module built for integration within ABB Contrac rotary or linear actuators. It delivers dependable signal processing, seamless control, and intelligent feedback for demanding industrial automation applications.

Whether used in power generation, chemical processing, water treatment, or oil and gas facilities, the EAS822 ensures stability, safety, and long-term durability of the actuation system.

Engineering & Design

Designed to handle harsh environments, the EAS822 supports both analog and digital inputs and outputs, providing high adaptability for various process control needs. It includes comprehensive protection features such as thermal shielding, signal integrity safeguards, and short-circuit protection.

The unit can be easily configured via the local interface or remote tools, reducing maintenance downtime and improving system efficiency. Its compatibility with modern PLCs and DCS systems makes it ideal for engineers looking to upgrade or integrate with legacy infrastructure, and diagnostics and alarm signaling help operators identify faults early and optimize response time.

Key Features

• For ABB Contrac rotary or linear actuators
• Dependable signal processing and control
• Intelligent feedback
• Analog and digital inputs and outputs
• Thermal shielding and signal protection
• Short-circuit protection
• Local and remote configuration
• PLC and DCS compatible
• Diagnostics and alarm signaling

Applications

• Power generation
• Chemical processing
• Water treatment
• Oil and gas facilities
• Actuator upgrade and integration

Specifications

For actuator control, the ABB EAS822 electronic unit is the Contrac module, and Seven Star LLC supplies the ABB EAS822 electronic unit with configuration support for your actuator.

The EAS822 electronic unit provides the control and the feedback functions for the Contrac electrical actuator.

The ABB EAS822 electronic unit is the converter of the ABB oxygen measuring system and is connected to the zirconia probe for the flue gas analysis. The unit is installed on the wall or the panel near the probe and is connected with the probe cable. The electronics provide the sensor heating control, the signal conditioning and the 4-20 mA output for the combustion control of the boiler.

The unit is configured with the local keypad for the range and the calibration settings. The automatic calibration sequence with the reference gas is initiated from the front panel. The status LEDs and the diagnostic messages indicate the probe and the heater condition. The EAS822 is matched to the installed probe of the plant.

The EAS822 electronic unit is connected to the probe with the dedicated cable and the heater voltage of the probe is monitored by the unit. The calibration with the span and the zero gases is performed through the keypad and the results are stored in the unit memory. The output is ranged for the combustible control of the boiler and the alarm contact signals the sensor fault. The spare unit is exchanged while the probe stays in the duct.

The EAS822 unit provides the analog output and the alarm contact for the oxygen loop of the boiler. The probe reference cell is verified during the calibration and the unit stores the last calibration data. The spare unit is exchanged with the probe connected and the wiring is transferred to the new terminal block.

Why Seven Star LLC

Seven Star LLC supplies the ABB EAS822 electronic unit for Contrac actuator projects across the Gulf, with verified specifications and technical support. Our team assists with unit selection, configuration, and spare planning for installed actuators.

We serve power, water, and process industries with reliable B2B supply of ABB actuator electronics throughout the GCC.

Installation & Operation

The electronic unit is mounted on the Contrac actuator and connected to the control system over the analog or digital interface. The configuration is set through the local interface or remote tools, and the protection features guard the electronics in plant environments.

Diagnostics and alarm signaling report the actuator condition, supporting early fault identification and planned maintenance.

Identifying the Correct EAS822 Replacement

Electronic units for ABB actuators are closely matched to the actuator they serve, so the replacement must be confirmed before ordering. Record the following from the installed equipment:

• The complete type designation and order code on the nameplate of the electronic unit, not only the short model name.
• The actuator type and serial number, since the unit is set up to suit the actuator’s torque or thrust, travel and motor data.
• The signal interface used by the plant, whether analog set point and feedback, digital communication, or both, together with the binary inputs and outputs in use.
• The supply voltage and any options fitted to the original unit.

Photos of the nameplate and the terminal wiring are the fastest way for our engineers to check that the ABB EAS822 electronic unit on offer matches your installation.

Replacement and Commissioning

Before removing the old unit, save its configuration if the local interface or configuration software allows it, and label every cable. Isolate the power and move the actuator to a safe position agreed with operations. After fitting the new unit, load or enter the parameters, then check the end positions and the direction of action. Confirm that the position feedback follows the set point across the full stroke. Finally, test the alarm and fault signals back to the control system before returning the loop to automatic.

Maintenance and Troubleshooting

• Use the built-in diagnostics and alarm messages as the first step when an actuator fails to move or hunts around the set point.
• Check supply voltage, signal wiring and terminal tightness before replacing hardware, because many field faults are caused by connections.
• Keep a copy of the current parameter set for every critical actuator, so a spare unit can be commissioned quickly.

Applications in Oman and the GCC

Contrac actuators drive dampers and valves in power stations, desalination plants and process units throughout the region, where high ambient temperatures put electronics under constant stress. Keeping a verified spare electronic unit on site reduces the time a critical damper or valve stays in manual.

Supply from Seven Star LLC

Seven Star LLC supplies ABB actuator electronics and spares for maintenance and shutdown work. Share the nameplate data and actuator details, and our team will confirm compatibility before dispatch.

Request a Quote for ABB Electronic unit EAS822

For the ABB EAS822 electronic unit or any related control and instrumentation requirement, contact the Seven Star LLC team. Submit a formal inquiry through our RFQ page with your configuration and application details, and our specialists will respond with a detailed commercial proposal and the official ABB documentation.
