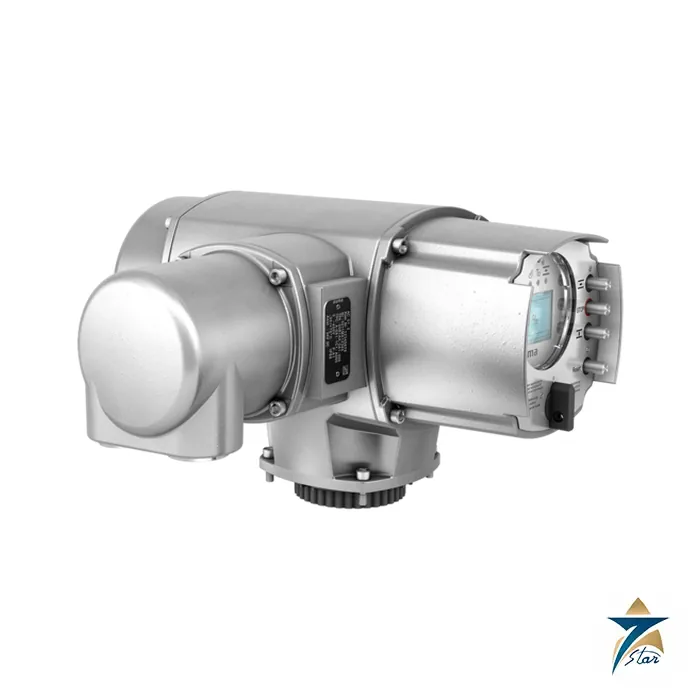

AUMA MATIC AM/AC Integral Actuator Controls
Overview
The AUMA MATIC AM/AC actuator controls are AUMA’s integral electronic and electromechanical control units, mounted directly onto AUMA multi-turn and part-turn electric actuators to evaluate operating commands and actuator feedback signals and switch the drive motor on and off without delay. The AM series provides basic, reliable open-stop-close functionality with integral reversing contactors, motor protection, and local/remote selector switching, while the AC series adds a microprocessor-based platform with a graphic display, menu-driven parameterization, torque and position monitoring, and native support for Profibus DP, Profinet, Modbus, HART, Foundation Fieldbus, and WirelessHART. Together, the AM and AC families let plant engineers match control sophistication — from simple on/off duty to fully networked modulating control — to the actual requirements of each valve in the plant.
Backed by genuine manufacturer documentation, Seven Star LLC proudly supplies the AUMA MATIC AM/AC actuator control range to process plants, water utilities, and power generation projects across Oman, Muscat, and the wider GCC. Every control unit supplied through Seven Star LLC is AUMA product, supplied with manufacturer documentation and local technical support suited to the harsh ambient conditions common across the Sultanate of Oman.
Operating Principle
The AUMA MATIC control unit sits between the plant control system and the actuator’s motor, interpreting OPEN-STOP-CLOSE commands, torque switch signals, and limit switch position feedback to start and stop the actuator motor at exactly the right moment. In the AM series, this logic is handled by hard-wired relay and contactor circuits: reversing contactors switch motor phases for CW/CCW rotation, while torque and limit switches provide end-of-travel and overload protection, and control inputs operate on a 24V DC opto-isolated signal that keeps the field wiring galvanically separated from the actuator’s internal supply. The AC series performs the same core switching function but through a microprocessor, which continuously digitizes torque, position, and temperature data, allowing features such as torque bypass for unseating a tightly closed valve, adjustable operating-time extension to avoid water hammer, and comprehensive self-diagnostics.
Because the control electronics are integral to the actuator rather than housed in a separate remote cabinet, cable runs between the actuator and the control system are minimized, reducing both installation cost and the number of potential fault points in the signal path. The practical result for the operator is a valve package that reports its own health, protects itself against mechanical overload, and can be commissioned and re-parameterized locally via the AC’s graphic display without opening the actuator’s motor compartment.
Engineering Design of the AUMA MATIC AM/AC
The AUMA MATIC AM/AC enclosure is rated to IP66/IP68 as standard, with options for ATEX and IECEx explosion-proof certification for use in classified hazardous areas such as tank farms, gas metering stations, and offshore platforms. The AM unit houses mechanically and electrically interlocked reversing contactors sized for motor ratings up to 7.5 kW, along with control transformers, fuses, and interlocking relays in a compact, weatherproof compartment mounted directly on the actuator housing. The AC unit replaces this with a solid-state switching and monitoring platform built around AUMA’s field-proven electronics, featuring a backlit graphic display for local status and fault indication in multiple languages, and an optional Bluetooth interface for wireless commissioning using AUMA’s CDT setup tool.
Both control types are designed for direct mounting on AUMA SA multi-turn and SQ part-turn actuator ranges, sharing common terminal layouts and cable entries so that a plant standardizing on AUMA actuators can mix AM and AC units across different criticality valves without changing the surrounding wiring infrastructure. Output relay contacts (typically four potential-free NO contacts for end positions and selector status, plus one change-over contact for collective fault) give the plant DCS or PLC a clean, standardized interface regardless of which control variant is fitted, while the AC’s fieldbus card can additionally transmit continuous torque and position telemetry back to the control room for predictive maintenance.
Key Features
Specifying the AUMA MATIC AM/AC range gives instrumentation engineers a proven, field-ready control platform for automated valve operation:
- Integral mounting on the actuator eliminates long control cable runs and reduces installation and wiring cost.
- AM series provides reliable relay-based OPEN-STOP-CLOSE switching with reversing contactors up to 7.5 kW motor rating.
- AC series adds a microprocessor platform with graphic display, torque bypass, and adjustable operating-time extension to prevent water hammer.
- Native fieldbus support on the AC includes Profibus DP/DP-V2, Profinet, Modbus RTU/TCP, HART, Foundation Fieldbus, and WirelessHART.
- IP66/IP68 enclosure protection as standard, with ATEX and IECEx explosion-proof variants for hazardous-area duty.
- Local/remote selector switching and illuminated indicator lights give operators immediate valve status at the actuator itself.
- Bluetooth commissioning via AUMA CDT allows wireless parameterization of AC units without opening the enclosure.
- Standardized terminal and mounting interface across AM and AC lets plants mix control sophistication by valve criticality while keeping spares commonality.
Industrial Applications
The AUMA MATIC AM/AC AUMA MATIC AM/AC is specified wherever a multi-turn or part-turn electric actuator needs local, self-contained intelligence rather than a remote control cabinet. Typical duty includes isolation and control valves in refining and petrochemical process units, sluice gates and penstocks in water and wastewater treatment plants, damper drives in power generation and district cooling plants, and modulating control valves in desalination trains where precise torque and position feedback prevent water hammer and pipeline stress. Networked AC units are particularly common on new-build projects that specify a plant-wide fieldbus architecture, while AM units remain the standard choice for simple on/off isolation duty across utility and balance-of-plant systems.
Working closely with plant engineers in the region, Seven Star LLC distributes the AUMA MATIC AM/AC range to EPC contractors and plant operators across Oman and the GCC, supporting district cooling networks, RO desalination plants, and refining and petrochemical facilities from Muscat to the Sohar and Salalah economic zones. Sourcing of AUMA MATIC AM/AC configurations on request, combined with technical support, allows Seven Star LLC to supply valve automation packages for both greenfield EPC projects and plant turnaround work.
Technical Specifications
The AUMA MATIC AM/AC technical specifications below summarize the core data for the AUMA MATIC AM/AC actuator controls; contact Seven Star LLC for full ordering codes and actuator compatibility data.
| Parameter | Specification |
|---|---|
| Model | AUMA MATIC AM 01.1/AM 02.1 and AUMATIC AC 01.1 |
| Control Type | AM: relay/contactor logic; AC: microprocessor-based with graphic display |
| Control Input Signal | 24V DC, opto-isolated OPEN-STOP-CLOSE |
| Motor Switching (AM) | Reversing contactors up to 7.5 kW, or thyristor unit up to 1.5 kW / 500V AC |
| Output Signals | 4 potential-free NO contacts (end positions, local/remote) + 1 change-over fault contact |
| Fieldbus Options (AC) | Profibus DP/DP-V2, Profinet, Modbus RTU/TCP, HART, Foundation Fieldbus, WirelessHART |
| Enclosure Protection | IP66/IP68; ATEX and IECEx explosion-proof variants available |
| Local Interface | Illuminated indicator lights, local/remote selector; graphic display and Bluetooth (AC) |
| Actuator Compatibility | AUMA SA multi-turn and SQ part-turn actuator ranges |
| Certifications | ATEX, IECEx, SIL 2/3 suitable (application dependent) |
Request a Quote for AUMA MATIC AM/AC Integral Actuator Controls
For every AUMA MATIC AM/AC inquiry, Seven Star LLC supports formal RFQs, actuator-and-control package sizing, and fieldbus protocol selection for the AUMA MATIC AM/AC range, with lead time confirmed at quotation. Technical datasheets and wiring diagrams are available on request through our automation and valve actuation division. With fast quotation turnaround and technical support, Seven Star LLC gives EPC contractors and plant operators a single point of contact for genuine product, warranty, and commissioning support — contact our team today to request a quotation.
Compatible AUMA Actuators and Related Controls
AUMA MATIC AM and AUMATIC AC controls are mounted on AUMA multi-turn actuators such as the AUMA SA 07.2, AUMA SA 10.2 and the explosion-proof AUMA SAEx, and on part-turn actuators such as the AUMA SQ and AUMA SQEx.
For plant-wide supervision and system accessories, see the AUMA SIMA2 master station.
Related Products
- Datasheet AUMA MATIC AM 01.1 - AM 02.1 Datasheet Download
AUMA actuator and gearbox types
SA multi-turn actuators handle open-close duty on gate and globe valves, and SAR is the modulating version; the listing includes the SA 07.2, SA 10.2 and SA 25.1. SAEx and SAREx are the explosion-proof equivalents. Part-turn duty on ball and butterfly valves is covered by SQ and the modulating SQR, or by an SA actuator combined with a GS part-turn gearbox. LE linear thrust units convert multi-turn output to thrust, and GHT multi-turn gearboxes extend the torque range up to 120,000 Nm. PROFOX is the compact actuator line. Special items include the seawater-resistant SGM and SGMR part-turn actuators with bronze housings, the SVC and SVCR globe valve actuators and the FQM fail-safe unit. Integral controls come as AM or AC versions.Where AUMA electric actuators are used
AUMA actuators are found in water, power, oil and gas, marine and general industry. In practice that means isolation and control valves in water treatment and pumping stations, power plant steam and cooling systems, tank farms and pipelines, and sluice gates and dampers.Ordering AUMA actuators and parts: what we need
For a replacement send photos of the actuator, motor and controls nameplates: type, order number, serial number and wiring diagram number. For a new actuator we need:- valve type, required torque or thrust, and turns or stroke
- valve mounting flange and stem or shaft details
- output speed, duty (open-close or modulating)
- supply voltage and frequency, control signals or fieldbus
- enclosure protection, ambient temperature, Ex requirement
Browse AUMA products by category: Valve Actuator, Industrial Communications.
