Thickness Gauges
Specialty Thickness Gauges

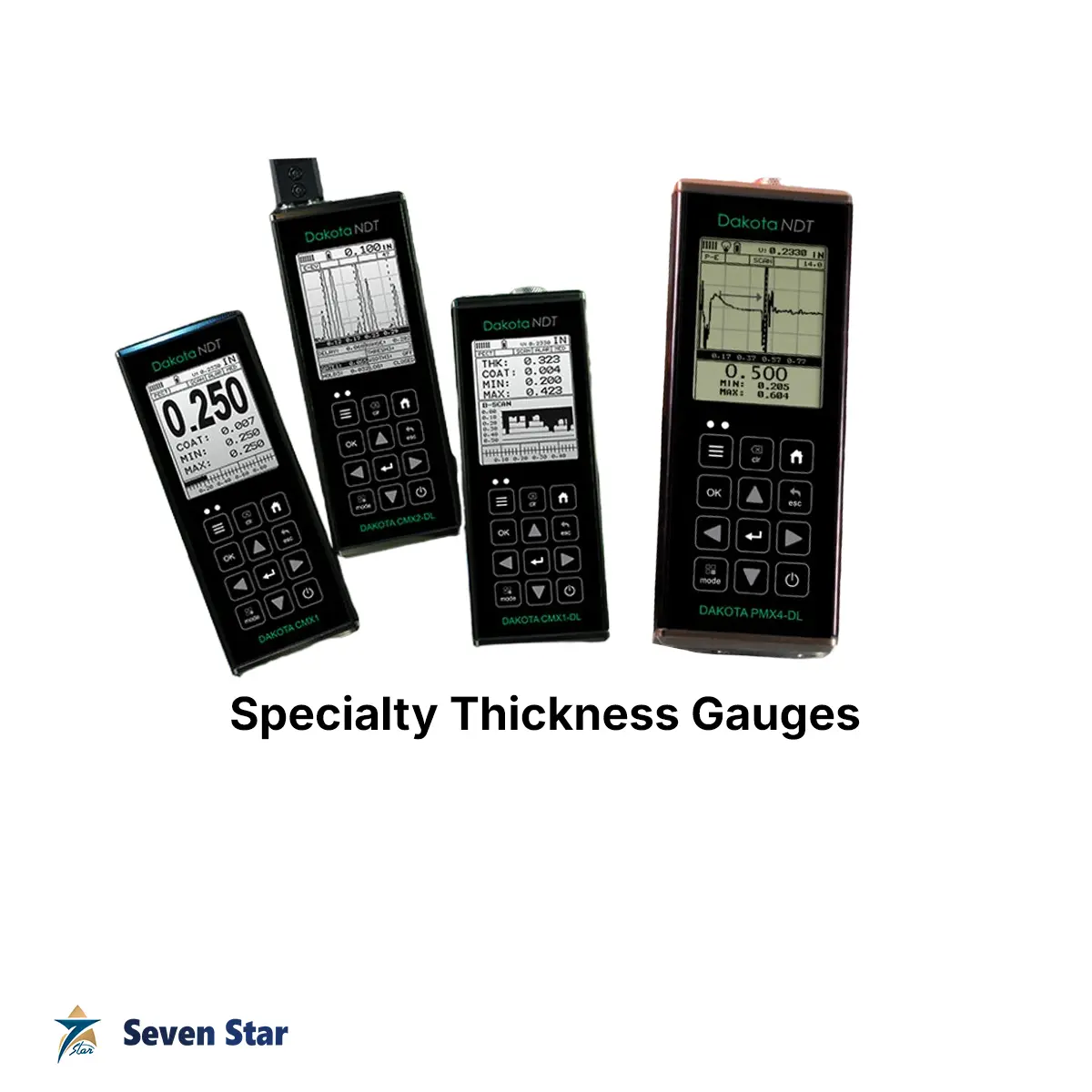

Specialty thickness gauges are the instruments that fit neither the corrosion nor the precision group. Listed here are the Dakota NDT PMX4-DL high penetration gauge and the R9 and RX8-DL sonic testers, together with coating thickness gauges from Elcometer (415, 355 and the 456 with separate probe), DeFelsko (PosiTector 6000 and the ultrasonic PosiTector 200) and Yowexa (EC-900). Seven Star LLC is the agency for Dakota NDT in Oman and the GCC. The group therefore mixes ultrasonic wall measurement on difficult materials with dry film coating measurement.
Read the full category guide ↓- 9 products
- 4 brands

9 products
Category guide
About Specialty Thickness Gauges
9 products · 4 brands
Specialty thickness gauges are the instruments that fit neither the corrosion nor the precision group. Listed here are the Dakota NDT PMX4-DL high penetration gauge and the R9 and RX8-DL sonic testers, together with coating thickness gauges from Elcometer (415, 355 and the 456 with separate probe), DeFelsko (PosiTector 6000 and the ultrasonic PosiTector 200) and Yowexa (EC-900). Seven Star LLC is the agency for Dakota NDT in Oman and the GCC.
The group therefore mixes ultrasonic wall measurement on difficult materials with dry film coating measurement.
High penetration ultrasonic thickness gauges and sonic testers
Some materials absorb or scatter sound so strongly that a standard gauge cannot hold a back wall echo. Cast iron, fiberglass, rubber and thick plastics are typical. High penetration gauges address this with lower frequency probes and more pulser energy. The Dakota sonic testers are ultrasonic thickness gauges as well. Check the datasheet of each model for its intended materials and range.
Coating thickness gauges
Most of the coating gauges listed measure paint, powder coat, galvanizing and similar layers on a metal base; the DeFelsko PosiTector 200 is an ultrasonic gauge for coatings on non-metal substrates such as wood, concrete and plastic. Magnetic induction is used on steel, eddy current on non-ferrous metals. Painting inspectors on pipelines, tanks and structural steel verify dry film thickness against the coating specification, commonly to ISO 19840 or SSPC-PA 2.
What to tell us
For ultrasonic work give material, thickness and surface condition. For coating gauges give substrate metal, coating type, expected thickness and probe style. Other specialty models can be sourced on request.
What to include in your inquiry
These details let us quote the right item the first time.
- Material and thickness range
- Application (corrosion survey, weld inspection, bolt tension)
- Instrument model, when ordering probes or accessories
- Transducer frequency and type
- Standards the inspection must follow
Missing some of them? Send what you have. A nameplate photo or an old part number is enough to start.
Brands in Specialty Thickness Gauges
All brands →Related categories
Request a Quote for Specialty Thickness Gauges
Looking for a specific model, part number or brand in Specialty Thickness Gauges? Send us your requirements and quantities. Seven Star LLC sources genuine industrial equipment for customers across Oman and the GCC and replies with a formal quotation.
- Genuine OEM products
- Supply across Oman & the GCC
- Formal quotation from our sales team
Free, no-obligation quotation · takes about 1 minute
Other enquiries: [email protected] · WhatsApp
FAQ
Questions about Specialty Thickness Gauges
Common questions about selecting and sourcing Specialty Thickness Gauges for projects in Oman and the GCC.
01Do I need a ferrous or non-ferrous probe for a coating thickness gauge?
The probe is chosen by the substrate, not the coating. Ferrous (F) probes use magnetic induction and measure non-magnetic coatings on steel and iron. Non-ferrous (N) probes use eddy currents and measure non-conductive coatings on aluminum, copper, brass and non-magnetic stainless steel. Combined FNF probes switch automatically between the two. Tell us the substrate and the expected coating thickness so the correct probe and scale are selected.
02What is the difference between an integral and a separate coating thickness gauge?
An integral gauge has the probe built into the instrument body, which suits one-handed work on open, flat surfaces. A separate gauge has the probe on a cable, so you can reach into pipes, recesses and corners and onto small or curved parts while still seeing the display, and you can change to a different probe type or range. The Elcometer 456 listed here is the separate-probe version.
03When do I need a high penetration thickness gauge?
When a standard gauge cannot get a stable back wall echo because the material itself attenuates the sound. Typical cases are gray and ductile cast iron, glass fiber laminates, rubber linings, and thick or filled plastics. High penetration gauges use low frequency probes, which trade fine resolution for depth. If you are unsure, tell us the material and thickness and we will check the manufacturer's application data.
04Do you supply underwater or hazardous-area thickness gauges?
The gauges listed in this category are standard portable instruments. Underwater work by divers or ROV needs a gauge with a pressure-rated housing and probe, and use in classified zones needs an instrument carrying ATEX or IECEx certification from the manufacturer. Both exist as separate product classes. State the requirement, depth or zone classification in your inquiry and we will look for a suitable model to source.
05Can an ultrasonic gauge measure the coating and the steel at the same time?
Some ultrasonic gauges offer a mode that reports metal thickness and coating thickness together, and echo-to-echo mode gives the metal thickness alone while ignoring the paint. Neither replaces a dedicated coating thickness gauge for painting inspection, where the specification defines the instrument type, the number of readings per area and the acceptance criteria. Check the datasheet of the specific ultrasonic model for its coating functions.
