Overview

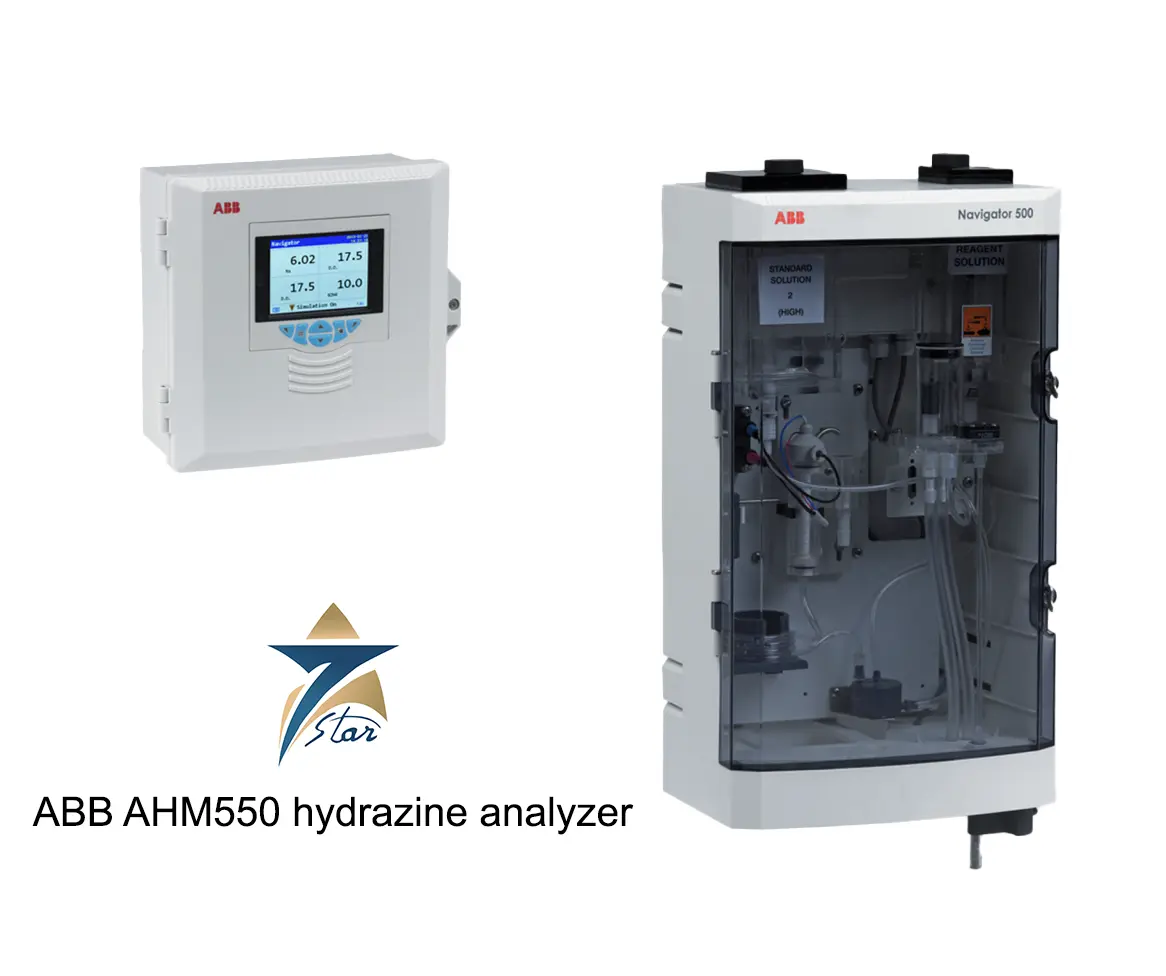

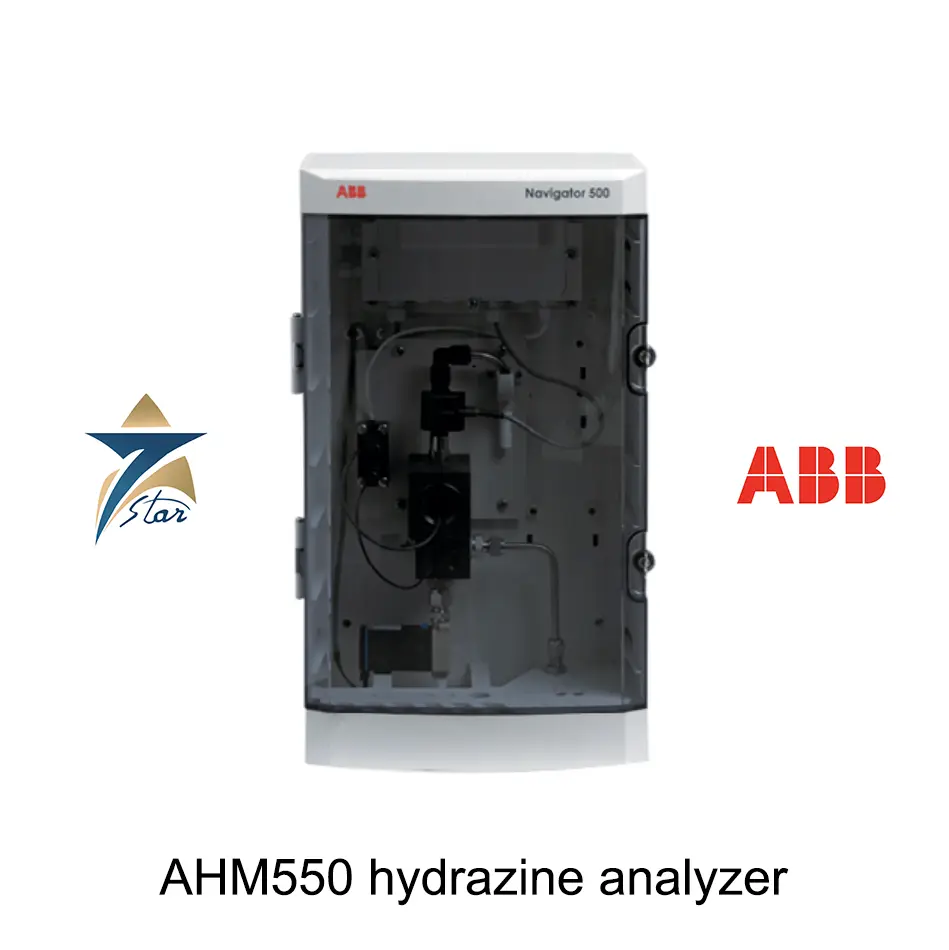

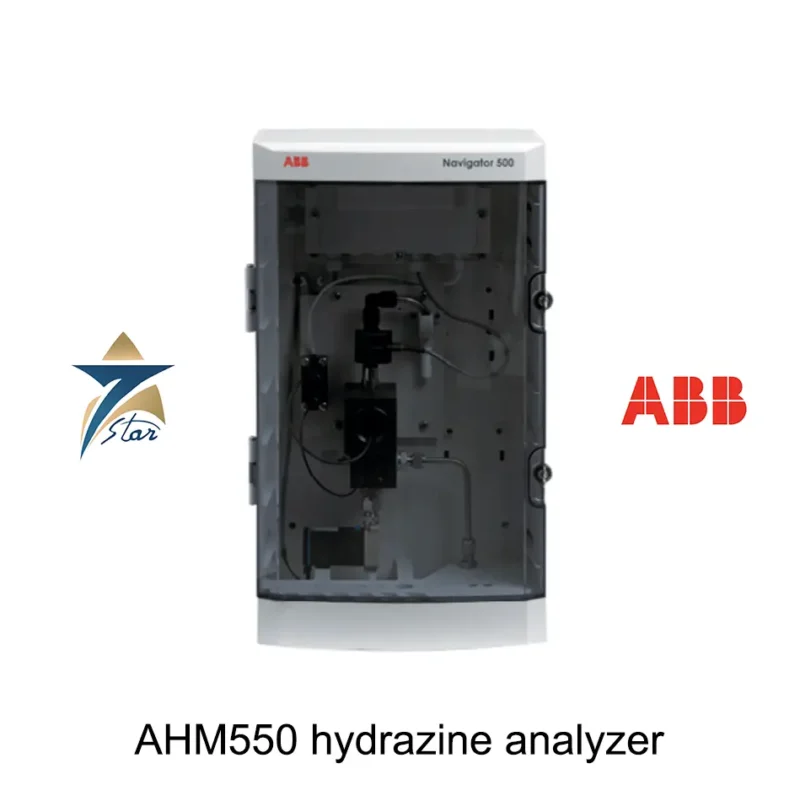

The ABB AHM550 hydrazine analyzer continuously measures hydrazine in high-purity water so you can control scavenger dosing precisely—avoiding both under-dosing (corrosion risk) and over-dosing (chemical waste). The analyzer’s architecture separates the Navigator 550 hydrazine wet-section from the Navigator 540 transmitter, reducing footprint and allowing multi-stream builds where one transmitter trends up to four wet-sections (same or mixed parameters from the Navigator 500 range). Maintenance is simplified with buffered chemistry and temperature compensation within the wet-section; the transmitter provides local trending, audit logs and data export.
Key Features & Specs
• Continuous hydrazine measurement for boiler feedwater/condensate; optimized for power cycle chemistry.
• Modular design: ABB AHM550 wet-section + AWT540 transmitter; up to 4 wet-sections per transmitter for multi-point monitoring.
• Electrochemical measurement with automatic pH buffering and temperature compensation for accuracy and stability.
• Communications & I/O (AWT540): options for Profibus/Ethernet; transmitter can add current outputs + relays and on-board data storage (per build).
• Low maintenance wet-section; simplified periodic reagent/consumable service.
• Local color display & trending on the transmitter; export logs for QA/compliance.
Typical Applications
• Power generation: boiler feedwater & condensate hydrazine control
• Industrial high-purity water loops using oxygen scavengers
• Deaerator outlet monitoring & chemical optimization
What’s Included / Ordering Notes
• AHM550 hydrazine wet-section (wall mount, with 6 mm or 1/4 in. sample fitting)
• AWT540 transmitter (order codes vary by mount, supply, and comms/I/O card)
• Reagents/consumables ordered per ABB kit codes; consult the datasheet for ranges, flow and ambient limits.
Installation & Maintenance
• Mount wet-section near sample point; maintain ABB-specified sample flow, temperature and pressure.
• Provide clean, conditioned sample (per datasheet), route waste safely.
• Schedule routine checks: reagents, tubing, zero/span verification; log alarms/trends via AWT540.
Compliance & Integration
• Designed for boiler water service and DCS integration via AWT540 comms (Profibus/Ethernet options). Verify your plant protocol and I/O card selection at order time.
Request a Quote for ABB AHM550 – Hydrazine Analyzer – Navigator
Need the right build? Send your boiler pressure/temperature, expected hydrazine range, sample conditions, and preferred comms (Profibus/Ethernet). Seven Star LLC will validate configuration, availability, and pricing—then ship a ready-to-commission kit.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | AHM550 (Navigator 500 platform) |
| Measured Parameter | Hydrazine in high-purity water |
| Measurement Method | Electrochemical cell (platinum anode, silver cathode) with alkaline reagent dosing to pH approx. 10.5 |
| Measuring Range | 0–1000 ppb (µg/l) |
| Resolution | 0.1 ppb |
| Accuracy | ±3% of reading or ±1 ppb, whichever is greater |
| Response Time | Under 2 minutes for a 90% step change |
| Sample Temperature | 5°C to 55°C, automatic temperature compensation |
| Outputs | 2 analog outputs standard plus 2 optional (0 to 22 mA), 4 relays standard plus 2 optional, 6 configurable digital I/O |
| Communications | Optional Ethernet (TCP/IP, HTTP) or Profibus DPV1 |
| Transmitter | AWT540 (Navigator 540), up to 4 wet-sections |
| Approvals | cULus; EN61010-1; IEC61326 |
| Repeatability | ±3% of reading or ±1 ppb, whichever is greater |
| Units of Measure | ppb, µg/l, µg/kg |
| Sample Pressure | 1.5 bar gauge (21.7 psi) maximum |
| Sample Flow Rate | 100 to 400 ml/min |
| Sample Connections | 1/4 in. ID flexible tubing to barbed connector |
| Automatic Calibration Frequency | Programmable from 1 to 7 days or 1 to 8 weeks |
| Ambient Operating Temperature | 0 to 55 °C, up to 95% RH non-condensing |
| Enclosure Protection | Wet-section IP54; transmitter IP66 / NEMA 4X |
Technical Overview

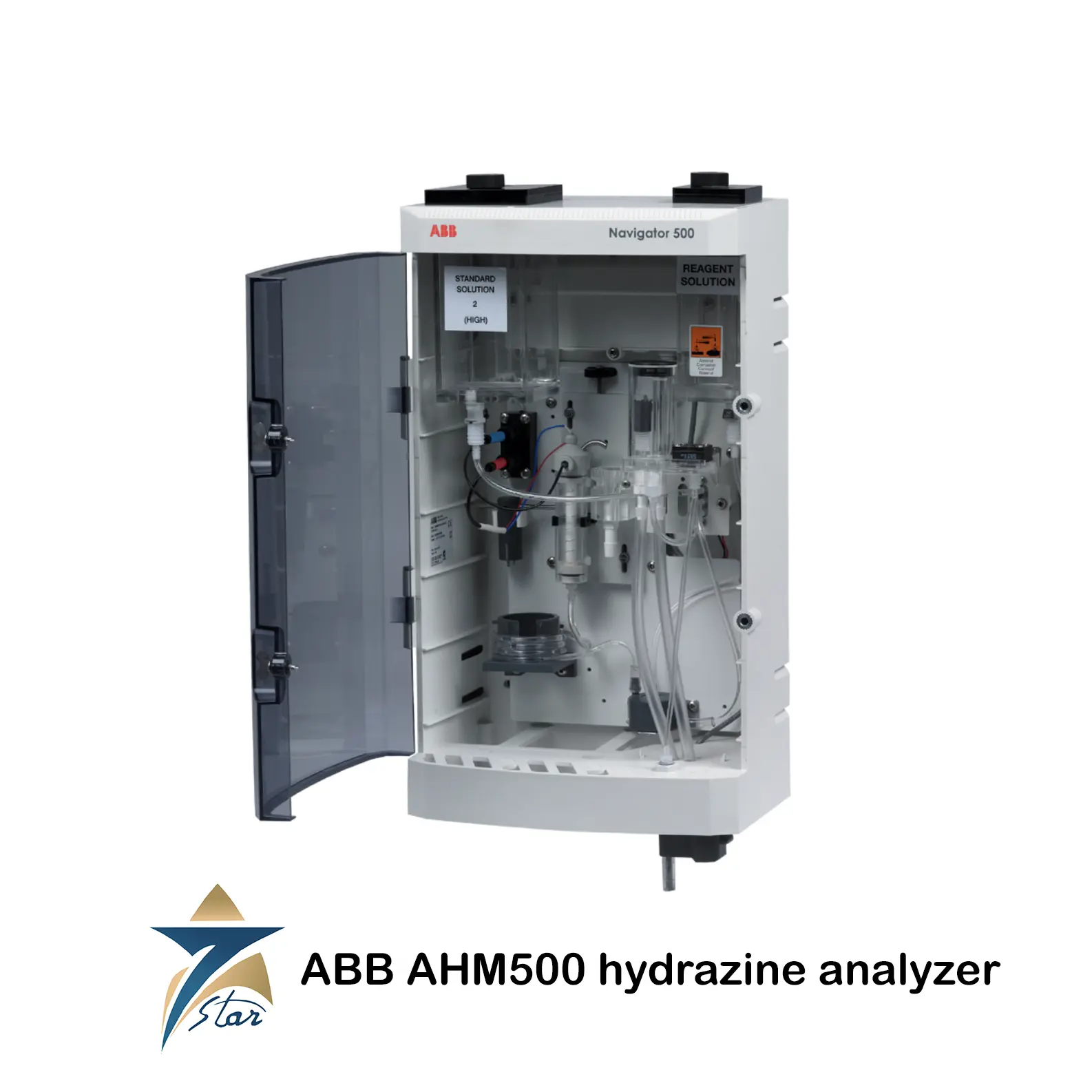

The ABB AHM550 is a continuous hydrazine analyzer within ABB’s Navigator 500 platform of liquid process analyzers, designed to monitor hydrazine dosing concentration in boiler feedwater treatment systems for corrosion control. Per ABB’s official datasheet (DS/AHM550-EN), the analyzer uses a wet-chemical, electrochemical measurement method: the water sample is first dosed with an alkaline reagent to raise its pH to approximately 10.5, then passed through an electrochemical cell containing a platinum anode and silver cathode, where the resulting cell current is directly proportional to the concentration of hydrazine present in the sample.
The AHM550 measures hydrazine concentration across a range of 0–1000 ppb (µg/l), with a fine resolution of 0.1 ppb, and measurement units selectable as ppb, µg/l, or µg/kg to match plant reporting conventions. Accuracy and repeatability are both specified at ±3% of reading or ±1 ppb, whichever is greater, with a response time of under 2 minutes for a 90% step change — fast enough to give operators timely feedback on dosing pump performance. The analyzer operates across a sample temperature range of 5°C to 55°C with automatic temperature compensation applied to the measurement. Output signals include 2 standard programmable analog outputs (0–22 mA range) and 4 standard relay outputs (with 2 additional relays available as an option), plus 6 configurable digital inputs/outputs; optional Ethernet (TCP/IP, HTTP) and Profibus DP connectivity are available for integration into a plant’s digital control network.

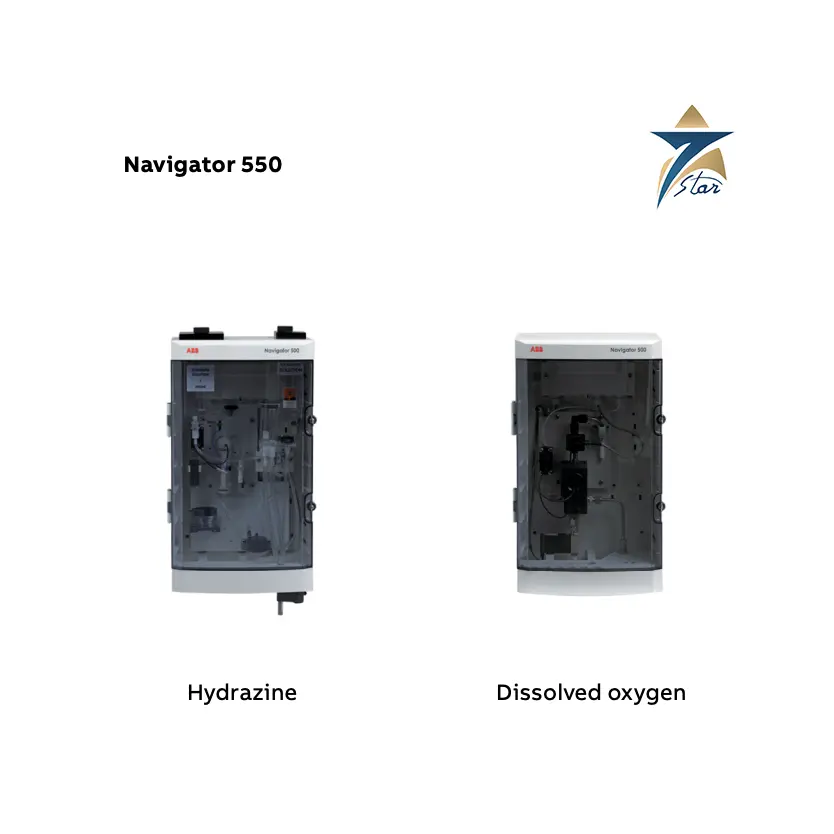

The AHM550 carries cULus safety approval, complies with EN61010-1 for electrical safety and IEC61326 for industrial EMC, and is CE-marked to both the EMC and Low Voltage Directives. As part of the shared Navigator 500 analyzer platform, the AHM550’s electronics and enclosure are common across ABB’s family of continuous liquid analyzers for different measured parameters (hydrazine, sodium and dissolved oxygen), simplifying spares and operator training for plants running multiple Navigator 500 analyzers for different water-chemistry parameters.
Applications
The AHM550 is installed in power generation plants and industrial steam systems to continuously monitor hydrazine dosing efficiency — typically ahead of the boiler economizer inlet — ensuring the correct oxygen-scavenging chemical dose is maintained to prevent corrosion in boiler feedwater and steam-cycle piping. Accurate, continuous hydrazine monitoring helps plants avoid both under-dosing (corrosion risk) and over-dosing (chemical waste and potential downstream effects), directly supporting boiler reliability and reduced unplanned maintenance.
AHM550 and AWT540 Ordering Codes

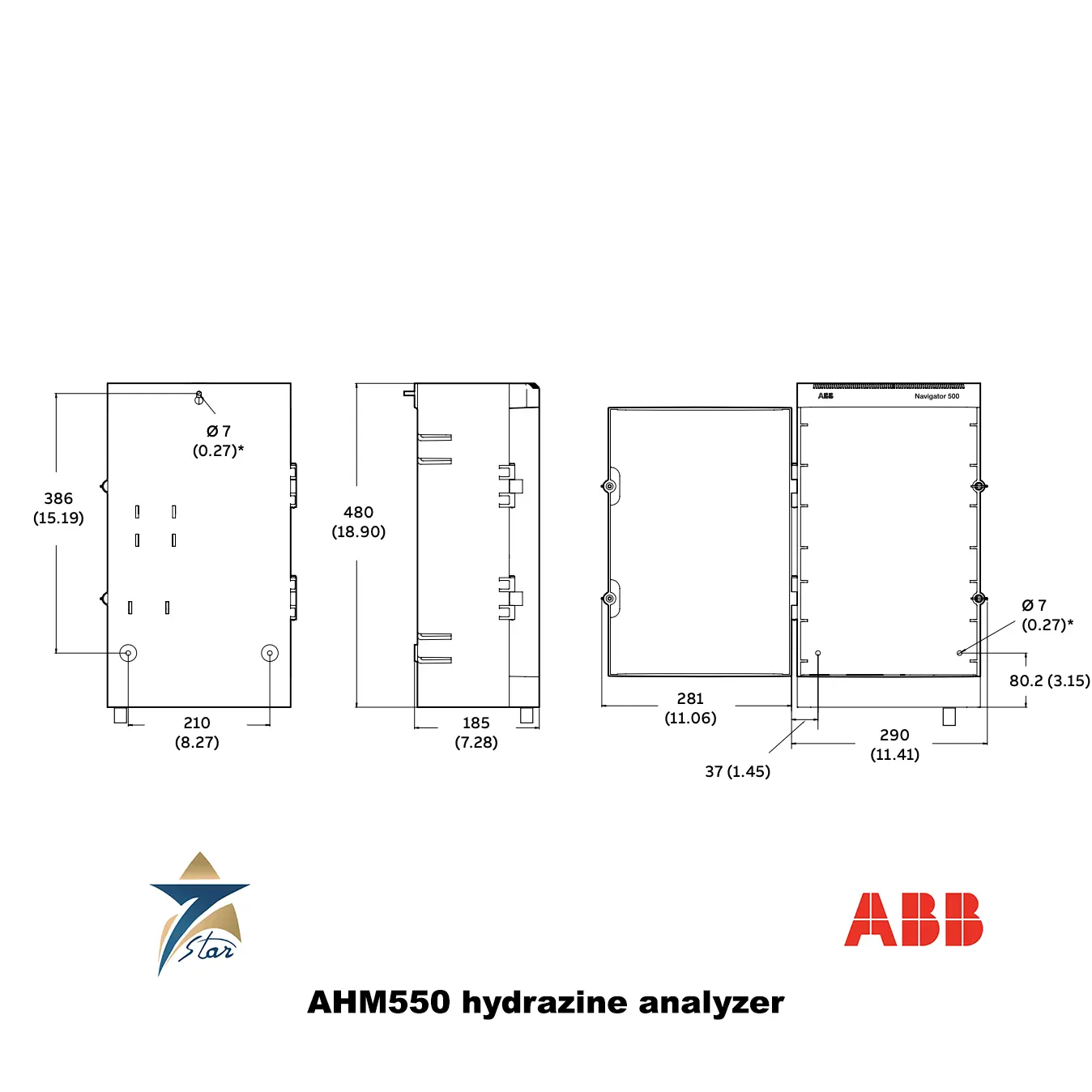

The analyzer is ordered as two items. The wet-section code AHM550 defines the standard 0 to 1000 ppb range, wall-mount enclosure, single stream, sensor (standard, or supplied without sensor) and the process connection, either a 6 mm fitting or a 1/4 in. fitting. Optional codes add sample flow measurement, a signal cable of 1.5, 5, 10 or 20 m (no signal cable is supplied as standard), a test certificate and the documentation language. Decide the cable length from the distance between the wet-section and the transmitter.
The transmitter code AWT540 defines a wall-mount enclosure with color display and a 90 to 260 V AC supply. The output position selects none, an additional output card with 2 current outputs and 2 relays, Ethernet, or Profibus DPV1. The data storage position selects none, SD card or USB. A panel mount kit and a metric gland pack with 9 glands are optional accessories. One transmitter accepts up to 4 single-stream wet-sections from the Navigator 500 range, so sodium or dissolved oxygen wet-sections can share it.
Sample Conditions and Routine Operation

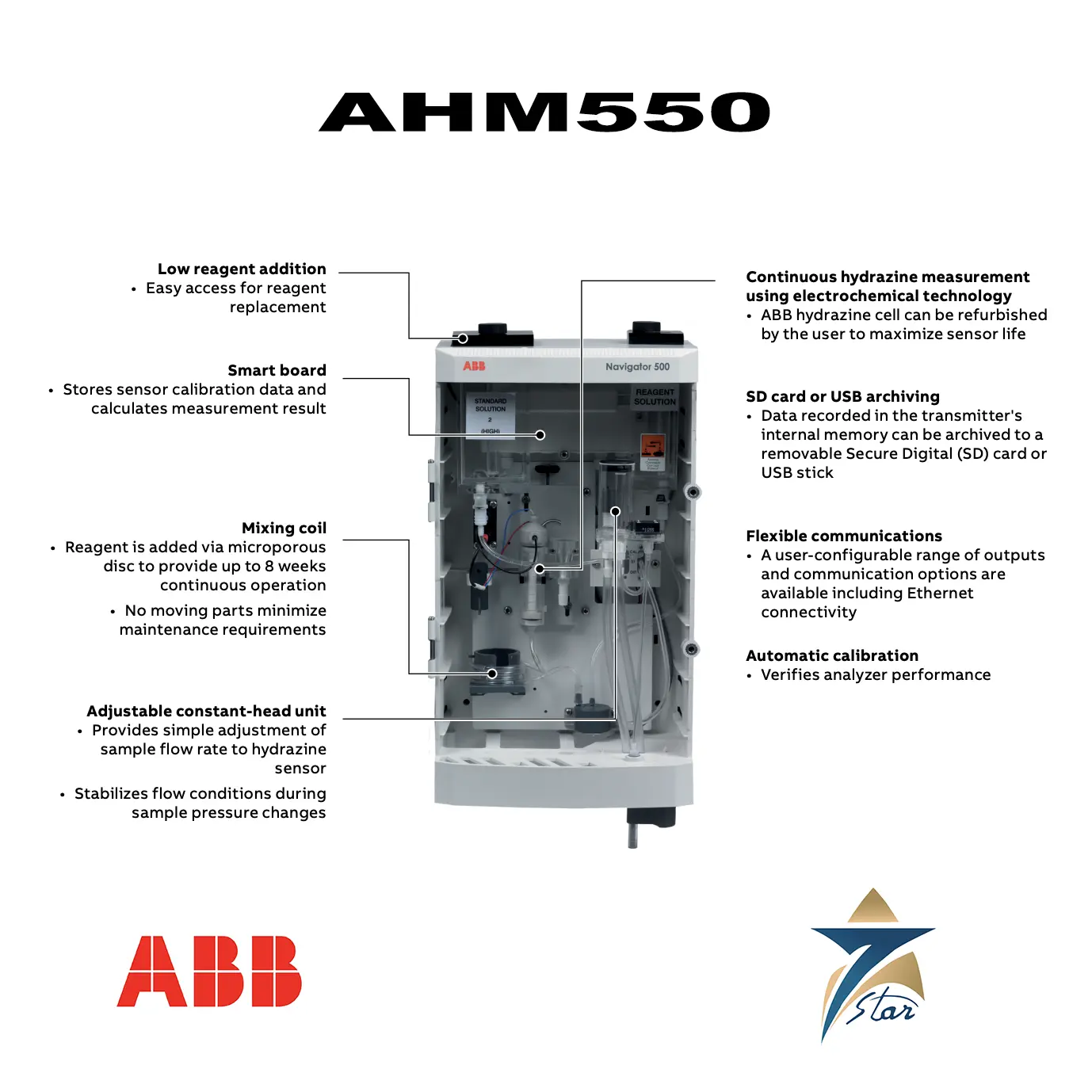

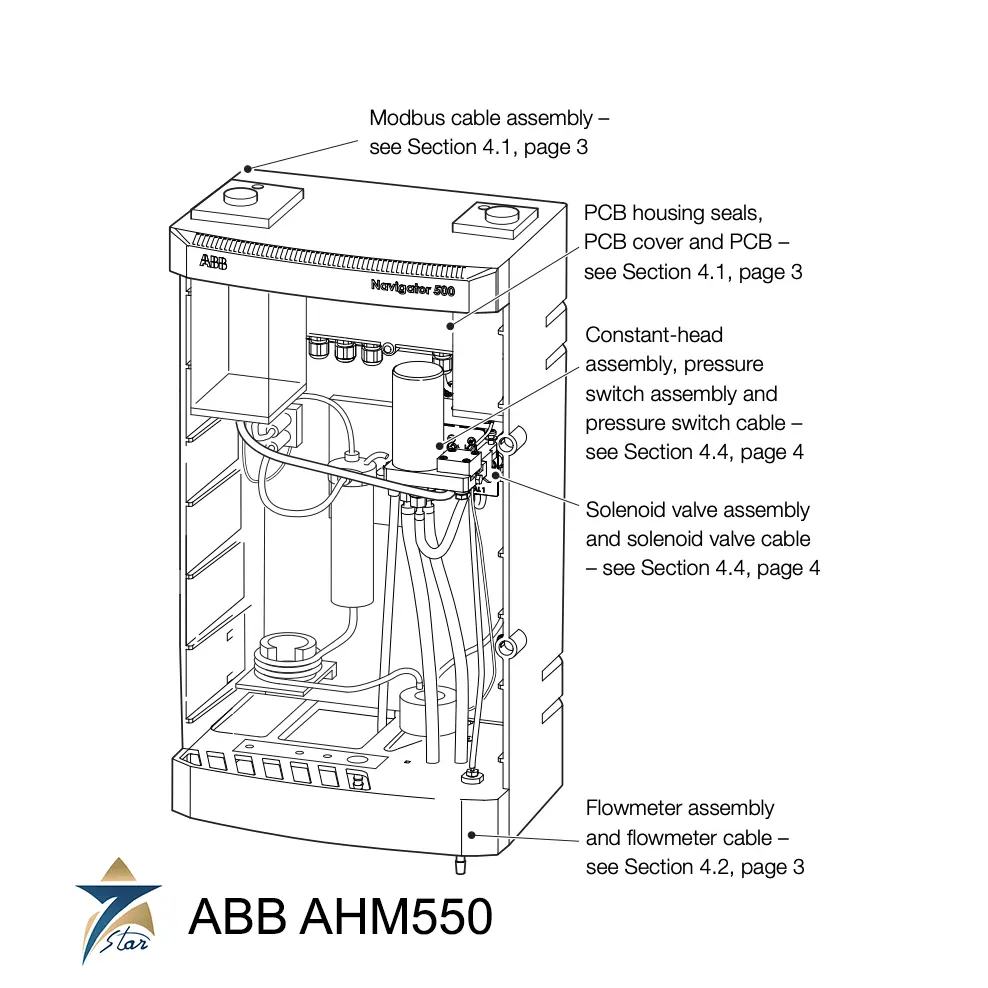

The sample must reach the wet-section at 5 to 55 °C, at no more than 1.5 bar gauge and at a flow of 100 to 400 ml/min; sample lines connect to barbed connectors for 1/4 in. ID flexible tubing. An integrated constant-head unit holds the flow to the sensor steady when sample pressure changes. The alkaline reagent is added through a microporous disc with no pump, and ABB states that this gives up to 8 weeks of continuous measurement. Automatic calibration can be scheduled from 1 to 7 days or 1 to 8 weeks, using a freshly prepared hydrazine standard.
Why Seven Star LLC
Seven Star LLC supplies genuine ABB Navigator 500 series analyzers, including the AHM550 hydrazine analyzer, to power generation and industrial customers across Oman and the GCC, and assists with output configuration, communications protocol selection, and reagent/consumables supply to keep the analyzer in continuous, accurate operation.
Request a Quote for ABB AHM550 – Hydrazine Analyzer – Navigator
Contact Seven Star LLC to request a quotation for the ABB AHM550 Navigator hydrazine analyzer. Our team can help confirm the correct output configuration and communications options for your plant’s control system, and support reliable delivery and ongoing consumables supply across Oman and the wider GCC region.
Ordering Notes and Maintenance
When requesting a quotation, please specify the required analog output range, relay configuration, and any digital communications protocol (Ethernet or Profibus DP) needed for integration with your plant’s control system. Seven Star LLC also supplies genuine ABB reagents and consumables for the AHM550’s electrochemical measurement cell, and can advise on a recommended reagent replenishment and cell maintenance schedule to keep the analyzer’s accuracy within specification for continuous boiler feedwater treatment monitoring.
