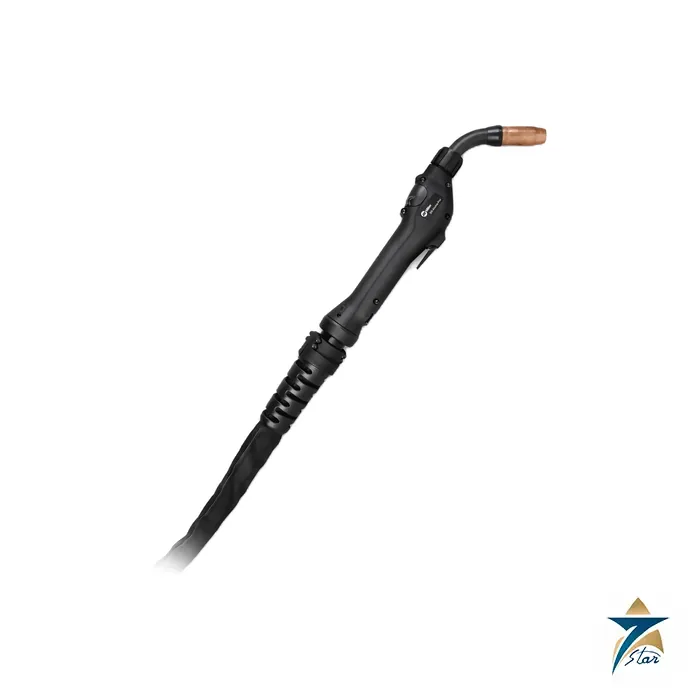

Miller XR-Aluma-Pro Push-Pull MIG Gun for Aluminium

Overview

The Miller XR-Aluma-Pro is a gooseneck-style push-pull MIG gun designed for aluminium welding, and Miller describes the XR family as the industry’s most reliable line of push-pull welding guns. It is rated at 300 A at 100 percent duty cycle in the air-cooled version and 400 A at 100 percent duty cycle in the water-cooled version, and supports MIG and pulsed MIG with aluminium, stainless steel and gas-shielded cored wires. The Miller XR-Aluma-Pro is built to be used with the Millermatic 355 power source or the XR-AlumaFeed Suitcase feeder as part of a complete push-pull system, and it is available with 15, 25 or 35 ft cables.

Seven Star LLC supplies the Miller XR-Aluma-Pro and its consumables to aluminium fabricators, boat builders, trailer and truck body shops and maintenance teams in Oman and the GCC. Aluminium work in the region, from marine craft in Muscat and Sur to tanks, enclosures and transport bodies in Sohar and Rusayl, depends on stable wire feeding, and the right push-pull gun is often the single biggest improvement a workshop can make.

Operating Principle

As general background, aluminium MIG wire is soft and has low column strength. When a standard feeder tries to push it through a long gun cable, the wire tends to buckle and tangle at the drive rolls, a fault welders call bird-nesting. A push-pull system solves this by placing a small motor and drive rolls in the gun handle that pull the wire through the cable while the feeder pushes from the spool end. The wire stays under light, even tension along its entire path, so feeding is smooth even with long cables and large spools.

The Miller XR-Aluma-Pro uses aluminium-series-specific tension settings to ensure smooth feeding with 4000 or 5000 series aluminium wires. It feeds wire at 70 to 900 inches per minute, depending on the feeder or Millermatic used, which Miller says is faster than any of its predecessors. A 3-3/4 turn potentiometer gives fine resolution when setting wire speed, and the recessed wire feed speed control is durable yet easy to use while wearing welding gloves. The result is stable arc length and consistent bead appearance on aluminium joints.

Engineering Design of the Miller XR-Aluma-Pro

The Miller XR-Aluma-Pro is balanced to give a natural feel in the hand, so welders have better joint access and can hold correct gun angle, stick-out and travel speed for longer with less fatigue. The industrial-quality cable has a durable covering and strain relief to resist damage, and a cable cover with full-length hook-and-loop closure protects the hose and cable assembly. A replaceable feed cable liner keeps arc performance consistent and lets the liner be changed without replacing the whole feed cable, reducing parts cost and service time.

Inside the handle, the isolated, common, knurled drive roll helps reduce wear, and a pressure release lever holds the drive rolls open for wire changeover. The drive assembly is easy to access and the head tube is removable, easy to rotate and self-seating, with options in several lengths and bend angles, including 45, 60 and 180 degree heads, heavy-duty heads for high duty cycle work, tight-access heads and a flexible 10-inch neck. Quick connectors join the control cable to the trigger, motor and potentiometer. The gun body measures about 127 by 64 by 432 mm.

Consumables for the Miller XR-Aluma-Pro are designed for quick replacement. FasTip contact tips are sold in packs of 25 for each wire size, and heavy-duty gas diffusers are offered with flush, 1/8 inch or 1/4 inch tip recess. Screw-on brass and copper nozzles come in several orifice sizes and tapers. A 50-degree curved nozzle kit reaches confined joints, and a hardwire liner kit allows the gun to run 0.8 to 1.2 mm mild steel or stainless wire when a shop needs one gun for mixed materials.

Key Features

Key features of the Miller XR-Aluma-Pro from the manufacturer literature are:

• Air-cooled rating of 300 A and water-cooled rating of 400 A, both at 100 percent duty cycle.
• Wire feed speeds from 70 to 900 ipm, depending on the control box or Millermatic used.
• Feeds 0.8 to 1.2 mm wire out of the box, with kit 230708 for 1.6 mm wire.
• Aluminium-series-specific tension settings for 4000 and 5000 series wires.
• Replaceable feed cable liner reduces parts cost and service time.
• Rotatable, self-seating head tubes in multiple lengths, angles and heavy-duty versions.
• Balanced, fatigue-reducing design with a glove-friendly recessed wire speed control.
• FasTip consumables as standard, with optional Centerfire conversion kits, and a one-year parts and labour warranty.

Industrial Applications

Miller lists emergency vehicles, recreational vehicles, trucks and trailers, heat exchangers, sign manufacturing, shipbuilding, tool boxes, railcars and general fabrication with pulsing power sources as typical uses. In Oman and the GCC, the Miller XR-Aluma-Pro is well matched to aluminium boat and marine fabrication, aluminium tanker and truck body construction, architectural aluminium, and the fabrication of aluminium enclosures and frames for oil and gas, utilities and telecom projects.

The most common combination is the Millermatic 355 with XR-Aluma-Pro package (951927), which Miller supplies with a 25 ft air-cooled gun, FasTip consumables, U-groove drive rolls and running gear. Seven Star LLC can also quote the gun with the XR-AlumaFeed Suitcase feeder for use with existing CV power sources, and supplies other welding equipment such as the ESAB Rebel EMP 285ic and the Lincoln Electric Power Wave S500. More guns and torches are listed in our TIG torches and MIG guns category.

Technical Specifications

The Miller XR-Aluma-Pro specifications below are taken from Miller spec sheet M/1.71 (subject to change without notice).

Call To Action

To order the Miller XR-Aluma-Pro, send Seven Star LLC an RFQ stating air- or water-cooled, cable length, wire diameter and the power source or feeder you will connect it to, plus any spare FasTip tips, liners and head tubes. Download the Miller XR-Aluma-Pro spec sheet from this page and contact our Muscat team for a quotation and engineering support across Oman and the GCC.
