Brand: Miller

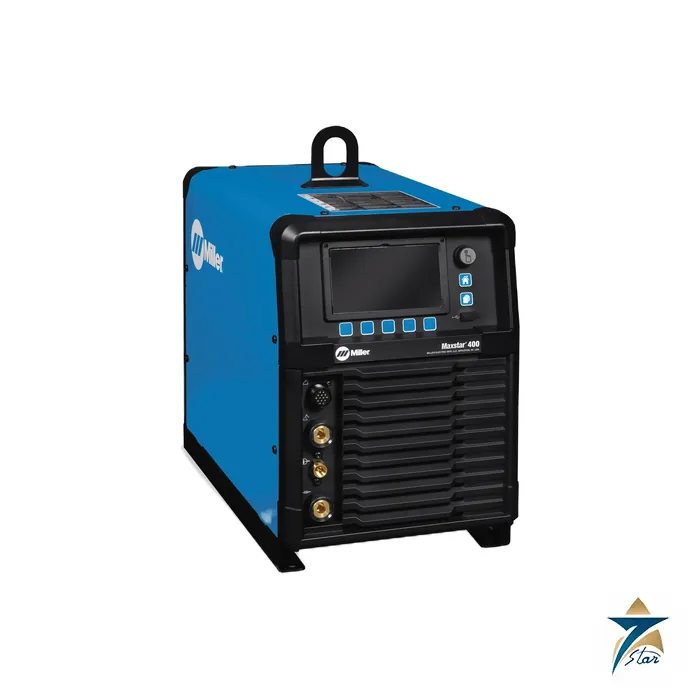

Miller Maxstar 400 DC TIG/Stick Welding Power Source
Description
Overview
The Miller Maxstar 400 is an advanced DC TIG and stick welding power source built for precision fabrication where weld quality is audited joint by joint: pipe and tube work, pressure vessels, tool and die repair and exotic material fabrication. Miller has re-engineered the platform around a 7-inch colour LCD interface that walks the welder through setup with on-screen explanations and dynamic images, so the Miller Maxstar 400 can be set correctly by experienced and newer operators alike. It delivers a 3–400 A output range and a rated output of 300 A at 32 V at 60% duty cycle on three-phase supply, in a cabinet weighing 126 lb (57 kg).
Seven Star LLC supplies the Miller Maxstar 400 to fabrication workshops, mechanical contractors and maintenance departments across the Sultanate of Oman and the wider GCC. For buyers in Muscat, Sohar, Duqm and Salalah, the machine fits the root, hot-pass and stainless work that dominates oil and gas, petrochemical and power-plant piping, and we support the selection of the right package, torch kit and remote control for each job.
Operating Principle
As a general principle, an inverter TIG power source rectifies the incoming mains, converts it to high-frequency AC through power semiconductors, steps it down through a compact transformer and then rectifies it again to a tightly controlled DC welding current. Because the control loop works at high frequency, the current can be regulated precisely and changed quickly, which is what makes pulsed TIG practical. The Maxstar 400 uses this capability to offer pulsing from 0.1 to 5,000 pulses per second, with peak time and background amperage each adjustable from 5 to 95 percent.
On the Miller Maxstar 400, pulsing alternates between a peak current that melts the joint and a lower background current that lets the puddle freeze slightly. Miller notes that pulsing can increase puddle agitation, arc stability and travel speed while reducing heat input and distortion. Three pulse waveshapes are available: square for a fast-freezing puddle and ultimate arc control, sine for a more fluid puddle suited to overlaying, and triangular for a quick-forming puddle with further reduced heat on thin material. Selecting sine or triangular activates QuietPulse, which reduces audible arc noise in the workshop.
Engineering Design of the Miller Maxstar 400
The Miller Maxstar 400 accepts any input voltage from 208 to 600 V, single- or three-phase, with no manual linking. Miller describes this as an ideal solution for dirty or unreliable power, which is a practical advantage on construction sites and generator-fed shutdown projects where supply quality varies. On three-phase supply the machine is rated at 250 A at 30 V at 100% duty cycle and 300 A at 32 V at 60% duty cycle; on single-phase it is rated 200 A at 28 V at 100% and 250 A at 30 V at 60%. The cabinet measures roughly 613 mm high, 352 mm wide and 618 mm deep.
Arc starting on the Miller Maxstar 400 uses Blue Lightning high-frequency starting, which Miller states gives more consistent starts and greater reliability than traditional arc starters, or Lift-Arc for sites where high frequency could disturb nearby electronics. A dedicated Cooler Power Supply receptacle runs the Coolmate PRO 4 cooler, and the Cooler-On-Demand feature operates the cooling system only when needed, reducing noise, energy use and airborne contaminants. A front USB port lets supervisors update software, back up settings and transfer saved programs from one unit to the next, and an optional 28-pin automation interface kit allows PLC control for mechanised welding.
Key Features
The main features of the Miller Maxstar 400 listed on the manufacturer spec sheet are:
- A 7-inch colour LCD interface with informative on-screen explanations ensures proper machine setup and parameter selection.
- Pro-Set eliminates guesswork by recommending weld parameters, and up to 99 programs can be named, saved and recalled.
- Locks and Limits restricts individual parameters to a set range, minimising deviation from the welding procedure specification.
- Pulsed TIG from 0.1 to 5,000 pps with square, sine and triangular waveshapes gives fine control of heat input on thin and heat-sensitive alloys.
- Blue Lightning high-frequency starting and Lift-Arc starting cover both standard shop work and electronics-sensitive locations.
- A full amperage sequencer controls initial amps and time, initial slope, weld time, final slope, final amps, preflow and postflow.
- Stick welding includes DIG control, adaptive Hot Start and Stick-Stuck detection, with normal or low open-circuit voltage.
- The power source carries a three-year parts and labour warranty from Miller, and wireless foot and hand remotes are available.
Industrial Applications
In Oman the Miller Maxstar 400 is a natural choice for stainless and alloy piping on refinery, petrochemical and gas processing projects, where root passes in 304L, 316L, duplex grades and chrome-moly steels must pass radiography. The DC TIG material thickness range of 0.3 to 15.9 mm, together with stick capability up to 1/4-inch electrodes in E6010, E7018 and E7024 classes, means one machine can root with TIG and then fill and cap with stick when the procedure allows it. Power stations, desalination plants and water transmission projects use the same combination for tube, header and spool repairs.
Pressure vessel shops in Sohar and Rusayl industrial areas using the Miller Maxstar 400 benefit from the program memory and Locks and Limits features, which help a supervisor hold every welder to the qualified parameters across shifts. Seven Star LLC supplies the Maxstar 400 together with matching consumables from our welding range, such as the LongTeng EL8 submerged arc welding wire used on heavier seams, and can compare it with MIG platforms like the Lincoln Electric Power Wave S500 when a workshop is deciding between processes. More machines are listed in our TIG welding machines category.
Technical Specifications
The table below summarises the Miller Maxstar 400 data from the manufacturer spec sheet DC/24.5 (subject to change by Miller without notice).
| Parameter | Specification |
|---|---|
| Model | Miller Maxstar 400 (stock 907955; CE 907955002) |
| Processes | DC TIG (HF and Lift-Arc), pulsed DC TIG, DC stick, air carbon arc gouging |
| Input power | 208–600 V, 1- or 3-phase, 50/60 Hz, auto-linking |
| Amperage range | 3–400 A (TIG range depends on tungsten size) |
| Rated output, 3-phase | 250 A at 30 V, 100% duty cycle; 300 A at 32 V, 60% duty cycle |
| Rated output, 1-phase | 200 A at 28 V, 100% duty cycle; 250 A at 30 V, 60% duty cycle |
| Max. open-circuit voltage | 75 VDC (10–15 VDC sense voltage for low OCV stick and Lift-Arc) |
| Pulse | 0.1–5,000 pps; peak time and background amps 5–95%; square, sine, triangular |
| DC TIG thickness range | 0.3–15.9 mm (.012–5/8 in.) |
| Max. stick electrode / gouging carbon | 6.4 mm (1/4 in.) |
| Programs | 1–99, user-defined names |
| Generator requirement | 20 kW |
| Dimensions (H × W × D) | 613 × 352 × 618 mm |
| Net weight | 57 kg (126 lb); TIGRunner package 112 kg |
| Standards | CSA certified; CE models conform to applicable parts of IEC 60974 |
How to Order
To order the Miller Maxstar 400, send Seven Star LLC a formal RFQ stating your site input voltage, whether you need the machine only, the TIGRunner or the Complete package, and the torch and remote control you prefer. Download the Miller Maxstar 400 spec sheet attached to this page, contact our welding equipment team in Muscat for current availability and engineering support, and we will reply with a quotation for delivery anywhere in Oman and the GCC.
Datasheets & Documents
- Datasheet Miller Maxstar 400 Spec Sheet (DC/24.5) Download
Reviews (0)
How would you rate this product? Cancel reply
About brand
Miller Electric is the American maker of arc welding and cutting equipment: TIG, stick and multiprocess power sources, engine-driven welders, plasma cutters, induction heating systems, guns and welding helmets. Niels Miller built his first arc welder in his home in Appleton, Wisconsin, in 1929. The company, still headquartered in Appleton, has been part of Illinois Tool Works (ITW) since 1993 and sits in ITW's welding segment.
Seven Star LLC sources and supplies Miller welding power sources, engine-driven welders, induction heating systems, MIG guns and auto-darkening helmets for fabricators and contractors in Oman, and checks each model and its input power configuration against the manufacturer's documentation before quoting.
Miller company profile
| Founded | 1929, Appleton, Wisconsin, USA, by Niels Miller |
|---|---|
| Incorporated | 1935, as Miller Electric Mfg. Co. |
| Ownership | Illinois Tool Works (NYSE: ITW) since 1993; part of ITW's welding segment |
| Headquarters | Appleton, Wisconsin, USA |
| Product families | Dynasty and Maxstar TIG inverters, XMT and PipeWorx multiprocess systems, Millermatic MIG welders, Trailblazer and Big Blue engine drives, Spectrum plasma cutters, ProHeat induction heating, MIG guns and Digital Infinity helmets |
Milestones
- 1929: Niels Miller starts building arc welders at his home in Appleton.
- 1935: The business is incorporated as Miller Electric Mfg. Co.
- 1971: The Millermatic combines power source and wire feeder in one unit, bringing MIG welding to a wider market.
- 1993: Illinois Tool Works acquires Miller Electric.
Miller product families listed here
Miller welding machines on this page cover most processes used in plant construction and maintenance:
- TIG and stick: Dynasty 400 AC/DC and Maxstar 210 STR
- Multiprocess: XMT 400 ArcReach, XMT 650 and the PipeWorx 400 pipe welding system
- Engine-driven welders: Trailblazer 330 and Big Blue 800 Duo Pro
- Induction heating: ProHeat 35
- Guns and helmets: XR-Aluma-Pro push-pull gun; T94, Classic, Digital Performance, Digital Elite and Digital Infinity helmets
Where Miller equipment is used
An XMT or PipeWorx set suits pipe spools and structural work where one power source must run stick, TIG, MIG and flux-cored procedures. Dynasty machines handle aluminum and stainless TIG. Trailblazer and Big Blue engine drives go where no mains supply exists, such as pipelines, tank erection and remote maintenance in the GCC. The ProHeat 35 is used for preheat and post-weld heat treatment of pipe joints.
Miller products we list
Ordering Miller machines and parts: what we need
State the model and the Miller part number of the exact package, because the same machine is sold in several configurations. Give the supply at your site (voltage, phase and 50 Hz), the process and maximum current, and the accessories needed: wire feeder, remote control, cable length, torch or gun, cooler, running gear. For spare parts, the serial number from the rating label is essential, since Miller parts lists are issued by serial number range. For helmets, name the series and lens type.
Facts checked against published histories of Miller Electric and ITW, October 2026.
FAQ
Questions about the Miller Maxstar 400 DC TIG/Stick Welding Power Source
Answers from our engineering team on installation, compatibility and integration.
01What processes does the Miller Maxstar 400 support?
According to the Miller spec sheet, the Miller Maxstar 400 performs DC TIG with high-frequency (Blue Lightning) or Lift-Arc starting, pulsed DC TIG, DC stick (SMAW) and air carbon arc gouging with carbons up to 1/4 inch. It is a DC-only machine, so it is intended for steels, stainless steels, nickel alloys, titanium and other materials that are welded on DC rather than aluminium, which normally needs an AC TIG source.
02What input power does the Maxstar 400 need on site?
The machine accepts any input from 208 to 600 V, single- or three-phase, 50/60 Hz, with no manual linking. On three-phase supply it delivers 300 A at 32 V at 60% duty cycle and 250 A at 100% duty cycle; on single-phase the ratings are 250 A at 60% and 200 A at 100%. Miller lists a 20 kW generator requirement for full output, which is useful for remote pipeline and plant shutdown sites.
03Can the Maxstar 400 be supplied as a complete water-cooled package?
Yes. Miller offers the machine only (stock 907955, CE version 907955002), the Maxstar 400 TIGRunner with Coolmate PRO 4 cooler (907955001, CE 907955003) and a Complete package with wireless foot control, W-375 torch kit, coolant and Runner cart (951000265). Seven Star LLC can quote the configuration that matches your procedure and site voltage.
04How does the Maxstar 400 help control welding procedures?
The colour interface includes Pro-Set parameter guidance, 99 user-named programs and a Locks and Limits function that restricts individual parameters to a set range. This helps keep welders inside the welding procedure specification (WPS) on code work. Programs can be backed up and copied to other units through the front-panel USB port.
05Does Seven Star LLC supply the Miller Maxstar 400 in Oman?
Seven Star LLC supplies Miller welding equipment, including the Miller Maxstar 400, to fabrication shops, contractors and plant maintenance teams across Oman and the GCC. We provide quotations, help select the correct package, torch and remote, and offer engineering support from Muscat.
