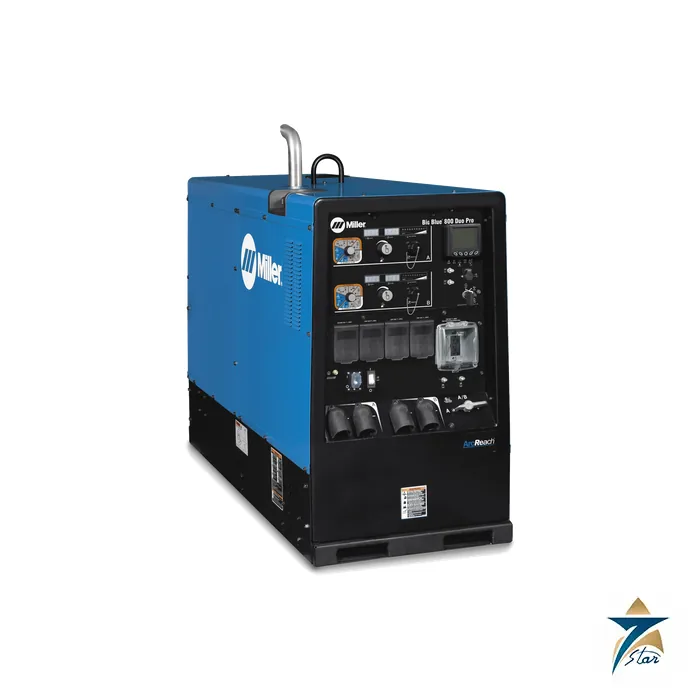

Miller Big Blue 800 Duo Pro Dual-Operator Diesel Welder

Overview of the Miller Big Blue 800 Duo Pro

The Miller Big Blue 800 Duo Pro is a heavy industrial, diesel engine-driven welding generator that gives two welders their own premium arc from a single engine. Miller describes the Big Blue 800 Series as the most powerful lineup of diesel engine-driven welders in the industry, offering 800 A of weld power and 27,000 W of peak auxiliary power, and positions it for dual-operator work on labour-intensive sites or sites with limited space. The Duo Pro version is the multi-operator work platform of the family: two arcs of up to 400 A each, or one paralleled output of up to 800 A for heavy single-operator jobs.

Seven Star LLC supplies the Miller Big Blue 800 Duo Pro to mechanical contractors, construction groups and maintenance teams in the Sultanate of Oman and across the GCC. From Muscat we help clients choose between the Duo Pro and its sister models, define the feeders and remotes for each operator, and coordinate supply and engineering support for the project.

Single Engine, Two Independent Arcs

As general background, a dual-operator engine drive splits one generator into two isolated welding circuits so that two people can weld at the same time without one arc disturbing the other. On the Miller Big Blue 800 Duo Pro a simple paralleling switch handles this changeover. In dual mode each side supplies 20 to 400 A constant current or 15 to 50 V constant voltage. In paralleled mode the outputs combine to give 40 to 800 A constant current, which is enough for 1/2-inch (13 mm) carbon arc gouging, stud welding up to 1/2 inch and submerged arc welding, all of which appear in the processes list on the spec sheet.

Miller points out that running more arcs from one engine improves fuel economy and states that a dual-operator unit can save about 34 percent compared with two single-operator units. The Miller Big Blue 800 Duo Pro also supports a wider multi-operator setup: additional inverter power sources can be plugged into the auxiliary output, and the manufacturer gives the example of adding two XMT multiprocess machines so that four operators weld at up to 200 A each.

Engine, Controls and Duty Ratings

Power for the Miller Big Blue 800 Duo Pro comes from a Deutz TD2.9 L4 turbo-charged, four-cylinder, liquid-cooled industrial diesel rated at 65.7 HP and compliant with EPA Tier 4 Final, with a 120 V block heater. Miller notes that Tier 4 Final models use diesel oxidation catalyst technology with no exhaust aftertreatment maintenance. The engine idles at 1,350 rpm, runs at 1,800 rpm under weld load and carries 25 gallons (95 L) of fuel, and it shuts down automatically on low oil pressure, high coolant temperature or low fuel level.

The control panel of the Miller Big Blue 800 Duo Pro combines digital meters with SunVision technology for sunlight readability, an electronic engine display showing fuel level, engine hours, coolant temperature, oil pressure, battery volts and rpm, a standard 14-pin receptacle with Auto-Remote Sense, an industrial USB port for updates and log files, and lockable hinged steel panels that protect the nameplate, gauges and ignition switch. Dynamic DIG gives independent control of puddle fluidity and arc drive in stick welding, and ArcReach sends control information over the weld cable so operators can change settings at the feeder or remote. Wireless interface control is a factory-installed option, and Duo machines with it include two pendants so each welder controls his own side.

Key Features of the Miller Big Blue 800 Duo Pro

The main points listed in the Miller spec sheet for the Miller Big Blue 800 Duo Pro are summarised here.

• Two independent arcs of 20 to 400 A each, or one paralleled output of 40 to 800 A, selected with a simple paralleling switch.
• Constant-voltage range of 15 to 50 V for MIG and flux-cored welding, with RMD and pulsed MIG available through the ArcReach Smart Feeder.
• Paralleled CC rating of 700 A at 44 V and 800 A at 38 V at 100% duty cycle and 104°F (40°C).
• Three-phase auxiliary power of 27,000 W peak and 20,000 W continuous, and single-phase power of 15,000 W peak and 12,000 W continuous.
• ArcReach technology as standard, allowing parameter changes at the feeder or pendant without a control cord.
• Heavy-duty powder coat over a zinc-rich primer to protect the sheet metal from rust and corrosion, and an IP23S rating for Big Blue models.
• Vandalism lockout with lockable hinged steel panels and a padlock included.
• Electronic engine display that tracks oil change intervals and shows engine diagnostics for faster servicing.

Where the Duo Pro Fits in Oman and GCC Projects

The manufacturer lists pipe welding, maintenance and repair rigs, mechanical contracting, construction, mining maintenance and railroad maintenance as applications for the Big Blue 800 Series. In Oman the Miller Big Blue 800 Duo Pro suits station and terminal construction, tank and structural erection in the Sohar and Duqm industrial zones, and shutdown campaigns at refineries and power plants, where two welders often work side by side on the same spool or structure and a single towable power plant keeps the site tidy.

For high-amperage jobs such as large-diameter gouging or submerged arc seams, the paralleled 800 A output on the Miller Big Blue 800 Duo Pro removes the need for a second heavy machine. Seven Star LLC supports buyers across the GCC with supply on request and engineering support from Muscat. For workshop production welding, see the Lincoln Electric Power Wave S500 and the ESAB Rebel EMP 285ic, and for submerged arc consumables the LongTeng EL8 wire. Browse all engine-driven welders for single-operator options.

Technical Specifications of the Miller Big Blue 800 Duo Pro

Figures below are taken from the Big Blue 800 Series spec sheet and apply to the Miller Big Blue 800 Duo Pro unless noted; Miller states they are subject to change without notice.

Order the Miller Big Blue 800 Duo Pro from Seven Star LLC

Send Seven Star LLC a formal RFQ for the Miller Big Blue 800 Duo Pro with the stock number, the required wireless or ArcReach accessories and the feeders for each operator. The attached Miller document is the Big Blue 800 Series spec sheet, which covers the Duo Pro and the Duo Air Pak models together. Our Muscat welding team provides quotations on request and engineering support for buyers throughout Oman and the GCC.
