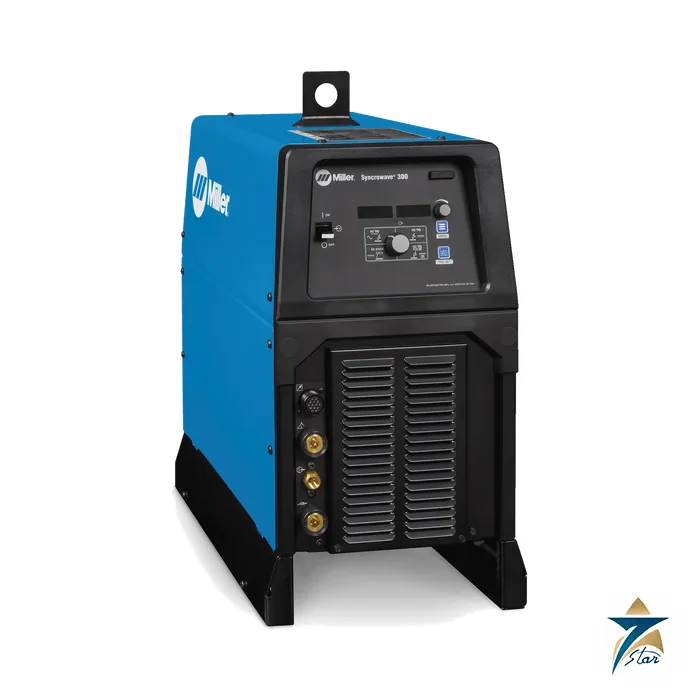

Miller Syncrowave 300 AC/DC TIG and Stick Welding Power Source

Name: Miller Syncrowave 300 AC/DC TIG Welder – Datasheet & Quote
Brand: Miller
SKU: Syncrowave 300

Description

An AC/DC TIG and stick power source for aluminium, steel and stainless

The Miller Syncrowave 300 is a 300 A TIG and stick welding power source with AC squarewave output for aluminium, DC TIG for steels and stainless, DC pulsed TIG and DC stick. Miller aims it at precision metal fabrication, maintenance and repair, light and heavy manufacturing, shipbuilding, tube and pipe, automotive and vocational training. Its Auto-Link circuit accepts 208, 240 or 480 V on single-phase or three-phase supplies, which makes installation straightforward in workshops with different supplies.

Technical specifications

Parameter	Specification
Model / catalog number	Syncrowave 300, 907782 (208/240/480 V), machine only
Processes	AC TIG, DC TIG, DC pulsed TIG, DC stick; Lift-Arc and high-frequency starting
Input power	208/240/480 V, single-phase or three-phase, 50/60 Hz (Auto-Link)
Amperage range	TIG 5 to 300 A; stick 5 to 230 A
Rated output, TIG	300 A at 22 V (30% duty cycle); 210 A at 18.4 V (60%); 175 A at 17 V (100%)
Rated output, stick	230 A at 28.4 V (30%); 160 A at 26.4 V (60%); 125 A at 25 V (100%)
Input current, TIG 300 A (208 / 240 / 480 V)	Three-phase 27 / 23 / 11 A; single-phase 47 / 41 / 19 A
Maximum open-circuit voltage	60 VDC (13 VDC sense voltage for Lift-Arc and low-OCV stick)
AC frequency / balance	AC frequency range 50 to 150 Hz; balance range shown as ball, 60 to 80% EN
Dimensions, power source (H x W x D)	746 x 381 x 625 mm
Dimensions with cooler and running gear (H x W x D)	1114 x 521 x 921 mm
Net weight	Power source 45.8 kg; with cooler and running gear 80 kg
Warranty (Miller)	Power source three years, parts and labor

Arc controls that matter on aluminium

On AC TIG the balance control sets how much of each cycle is electrode-positive, which cleans the oxide layer, against electrode-negative, which gives penetration and keeps the tungsten tip stable. The frequency control sets the width of the arc cone: a lower frequency gives a soft, wide arc for buildup, and a higher frequency gives a narrower, more directional arc for fillets and automated welds. Pro-Set locks in factory settings, with a stated default of 68% balance and 70 Hz.

Other listed functions include auto-postflow that adjusts postflow time to the amperage setting, line voltage compensation within plus or minus 10 percent, an arc timer and cycle counter for job costing, Fan-On-Demand cooling and a memory card port for updates. For stick welding, DIG control changes arc characteristics for electrodes such as E7018 or E6010.

Packages and related Syncrowave models

Miller offers the machine only (907782), a TIGRunner package with a Coolmate 3S cooler and running gear (907782001), and complete packages with a water-cooled Weldcraft W-280 torch kit and wired (951000003) or wireless (951872) foot control. The Syncrowave family on the Miller site also includes the Syncrowave 212, the Syncrowave 400 and a Syncrowave 400 for 600 V supplies in Canada. For inverter AC/DC capability at higher current, see the published Miller Dynasty 400; other machines are listed under TIG welding machines.

Documents and quotation

The attached Miller spec sheet (index AD/4.25, issued February 2023) lists the specification table, duty cycle chart, control panel, packages and accessories. Input power plug, shielding gas and tungsten are not included. For a quotation, state the package number, supply voltage, torch cooling and the foot control or accessories required.

Datasheets & Documents

Datasheet Miller Syncrowave 300 spec sheet AD/4.25 (Feb 2023) Download
