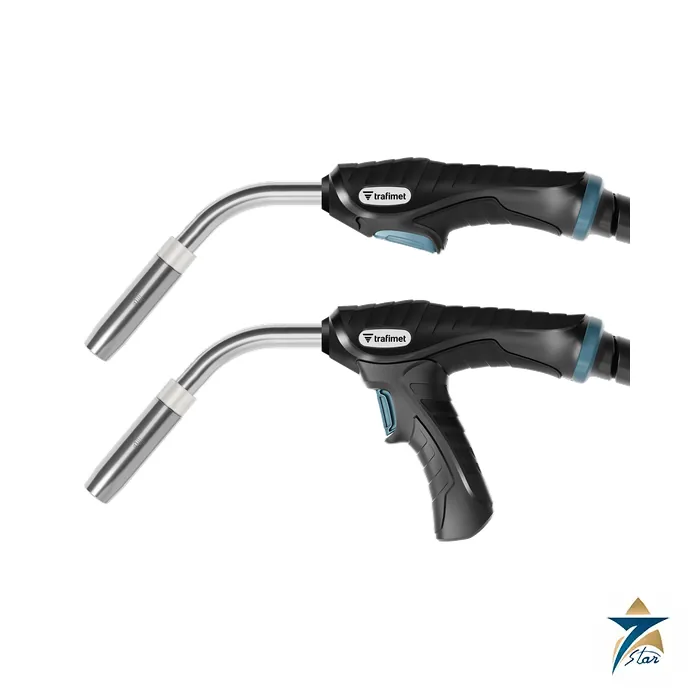

Trafimet ERGOMEGA 40 Gas-Cooled MIG Torch

Name: Trafimet ERGOMEGA 40 Gas-Cooled MIG Torch – Datasheet
Brand: Trafimet
SKU: ERGOMEGA 40

A 400 A gas-cooled MIG torch with adaptable machine connections

The Trafimet ERGOMEGA 40 is a heavy gas-cooled MIG/MAG torch rated at 400 A with CO2 and 350 A with mixed gas at 60% duty cycle (EN 60974-7). It takes 0.8 to 1.6 mm wire, which covers solid and flux-cored wire for structural steel, heavy fabrication and general workshop production without the need for a water cooler.

Its distinguishing point is the connection: besides the EURO-TW version, Trafimet offers it with a 5/8-18UNF power connector and conversion kits, so the same torch can be fitted to wire feeders that do not have a EURO socket.

Technical specifications

Parameter	Specification
Manufacturer / model	Trafimet / ERGOMEGA 40
Cooling	Gas-cooled
Rating (EN 60974-7)	400 A CO2, 350 A mixed gas, 60% duty cycle
Wire diameter	0.8 to 1.6 mm
Voltage rating (V peak)	113 V
Weight per metre	1.37 kg (3.02 lb)
EURO-TW packages	MA4502B030 (3 m), MA4502B040 (4 m), MA4502B050 (5 m)
5/8-18UNF packages	MA4502B030A (3 m), MA4502B040A (4 m), MA4502B050A (5 m)
Torch head	MF1547-SP; X 167 mm, Y 109 mm, 45 degrees
Gas nozzles	MC0298 (14 mm), MC0011 (16 mm), MC0012 (18 mm), MC0013 (20 mm), all 82 mm long
Contact tips	M9x1 CuCrZr, 38 mm: MD0250-78/-79/-80/-82/-84/-86 for 0.8, 0.9, 1.0, 1.2, 1.4, 1.6 mm
Tip holders	ME0370-SP (51 mm), ME0382-SP long (56 mm)
Coaxial cable	MH0841-030-SP / -040-SP / -050-SP

Connector kits for other wire feeders

The 5/8-18UNF versions use the FB0395-SP power connector and can be adapted with the kits listed on the Trafimet sheet: AR0170 Tweco 1-4, AR0171 Tweco 5, AR0172 Lincoln L, AR0173 Miller M, AR0176 Lincoln L4, AR0177 Lincoln L2, AR0178 Lincoln L3 and AR0179 Lincoln L1. Trafimet notes that these kits are to be assembled by a qualified technician. The EURO-TW version uses connector AR0083 with the Euro metal nut BW0020 and Euro-TW nut FA0027; GM0013 is the grey steel liner for 1.2 to 1.6 mm wire with the EURO-TW connector.

Using a 400 A gas-cooled torch

Gas cooling keeps the installation simple, but the 60% rating means that long continuous runs at the top of the range are better handled by a water-cooled torch. The CuCrZr contact tips listed for this torch resist wear and softening better than plain copper at high current. Choosing the nozzle bore to suit the joint is a balance: the 20 mm nozzle gives wider gas coverage for spray transfer on plate, while 14 or 16 mm nozzles improve access in fillet and root positions. For lighter work, the Trafimet ERGOPLUS 36 MIG torch is another gas-cooled Trafimet option from the Ergoplus range.

Mixed-gas ratings are lower than CO2 ratings because argon-rich arcs radiate more heat back to the nozzle and neck; when a job runs on mixed gas, plan around the 350 A figure rather than the CO2 value.

Documents and quotation

The Trafimet ERGOMEGA 40 technical sheet is attached under Datasheets & Documents. More torches are listed under TIG Torches & MIG Guns.

For a quotation, send the package code or the connector type and cable length, and list any contact tips, nozzles, liners or connector kits needed, with quantities.

Trafimet Group, based in Castegnero, Vicenza, Italy, manufactures torches and consumables for plasma cutting and for MIG/MAG and TIG welding. Since 2019 Trafimet has been part of the Kemppi Oy Group.

Seven Star LLC is an independent supplier in Muscat. We list the ERGOPLUS 36 gas-cooled MIG torch and source Trafimet torches, spare parts and consumables on request.

Trafimet product groups

The plasma range includes the PLUSCUT and EXPRESCUT torch families with their consumables. For MIG/MAG welding the manufacturer builds the ERGOPLUS, ERGOMEGA and ERGOFRESH torch lines in gas-cooled and water-cooled versions, and it also offers TIG torches, accessories and safety products. Each torch is listed in the Trafimet catalogue with its order codes, spare parts and wear parts.

Ordering Trafimet torches and consumables: what we need

Give the torch model and cable length, or the full Trafimet order code, and the connection on your machine, for example EURO. For consumables state the wire diameter, contact tip thread and nozzle type, or simply send the Trafimet codes from the old parts.
