Miller Big Blue 400 PipePro Diesel Engine-Driven Welder

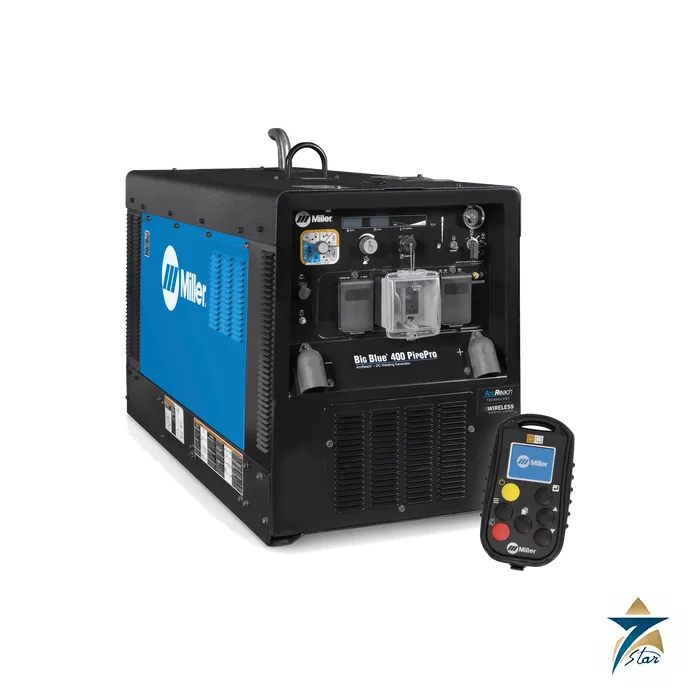

Overview of the Miller Big Blue 400 PipePro

The Miller Big Blue 400 PipePro is a diesel engine-driven welding generator that Miller designed specifically for the transmission pipeline welder. According to the manufacturer’s spec sheet (index ED/5.8, issued October 2025), it combines strong downhill stick arc characteristics with MIG and flux-cored capability so that crews can meet high-strength steel requirements on demanding cross-country and process pipe jobs. Output covers 20 to 400 A in DC stick and DC TIG and 14 to 40 V in constant-voltage wire modes, and the unit also supplies 10,000 W of continuous auxiliary power for tools and lighting on the right of way.

Seven Star LLC supplies the Miller Big Blue 400 PipePro to pipeline contractors, shutdown maintenance teams and fabrication yards in the Sultanate of Oman and the wider GCC. Our Muscat engineering team helps buyers match the machine, the wire feeder and the remote accessories to the welding procedure before a request for quotation is raised, so the package that arrives on site is complete and ready for work.

How the Engine-Driven Welder Works

As a general description of the equipment class, an engine-driven welder couples an internal combustion engine to a generator and an electronic weld control, so the same skid produces a regulated welding arc and separate auxiliary power wherever there is no grid supply. In this machine the prime mover is a Mitsubishi S4L2 four-cylinder, liquid-cooled industrial diesel rated at 24.7 HP. Miller notes that the S4L2 is used in industrial applications around the world and is designed to run 10,000 hours before a major overhaul. The engine idles at 1,500 rpm and runs at 1,800 rpm when welding, and automatic idle drops the speed whenever the arc and auxiliary loads are off, which helps the Miller Big Blue 400 PipePro save fuel and reduce noise.

The weld control is constant current for stick and TIG and constant voltage for MIG and flux-cored wire. Arc control is adjustable in both families: in stick mode it works through Dynamic DIG, and in wire mode it acts as inductance control to change puddle fluidity. Maximum open-circuit voltage of the Miller Big Blue 400 PipePro is 85 VDC, while the low OCV stick function (VRD) reduces open-circuit voltage to 30 V whenever the power source is not in use, which the manufacturer describes as increasing operator safety without compromising arc starts.

Dynamic DIG, ArcReach and Wireless Control

Three Miller technologies define how the Miller Big Blue 400 PipePro behaves at the joint. Dynamic DIG is a time-based algorithm that optimises metal deposition and gives independent control of puddle fluidity (arc control) and arc drive (DIG range), helping welders handle poor fit-up and inconsistencies in the pipe. ArcReach uses the existing weld cable to carry control information between the power source and an ArcReach SuitCase feeder, ArcReach Smart Feeder or ArcReach Stick/TIG Remote, which removes control cords and the costs that come with them.

Wireless interface control is factory installed on every Miller Big Blue 400 PipePro. The handheld pendant shows engine status, fuel level and battery charge, lets the operator select processes, adjust amperage or voltage while welding, fine-tune DIG, DIG range, inductance and Auto-Stop, turn the contactor and engine on or off, and save up to four custom weld programs. On a long spread this means fewer walks back to the truck and fewer climbs into the bed between passes.

Key Features of the Miller Big Blue 400 PipePro

The points below are taken from the manufacturer’s spec sheet for the Miller Big Blue 400 PipePro.

• DC stick and DC TIG output from 20 to 400 A, with Lift-Arc TIG, Auto-Stop and Auto-Crater functions for clean arc starts and ends.
• Constant-voltage output from 14 to 40 V for MIG and flux-cored welding through a wire feeder, with RMD and pulsed MIG available through the ArcReach Smart Feeder.
• Rated stick output of 300 A at 32 VDC, 350 A at 27 VDC and 400 A at 24 VDC at 100% duty cycle and 104°F (40°C).
• Auxiliary power of 12,000 W peak and 10,000 W continuous, enough to run a second Miller inverter such as an XMT 400 ArcReach for a second arc.
• Digital meters with SunVision technology that remain readable in direct sunlight and at wide viewing angles.
• Standard 14-pin receptacle with Auto-Remote Sense, which switches from panel to remote control automatically when a remote is connected.
• Industrial USB port for software updates and for downloading machine log files with diagnostics and statistics.
• LINE-X top cover for impact, corrosion and abrasion protection, with an optional stainless steel enclosure.
• Engine protection with automatic shutdown on low oil pressure, high coolant temperature above 230°F (110°C) and low fuel level, plus a maintenance interval reminder.

Pipeline and Field Applications in Oman and the GCC

Miller positions the Miller Big Blue 400 PipePro for cross-country pipeline and process pipe welding. In Oman this maps naturally onto flowline and trunk-line spreads in the interior oil and gas concessions, tie-in and repair work on gathering networks, and turnaround campaigns at refineries and gas plants where temporary welding power is needed at many points at once. The manufacturer states that its engine drives are tested to perform in high-temperature climates up to 56.7°C, and the machine is rated at 104°F (40°C), which are both relevant figures for summer work in the region.

Because Miller describes the Miller Big Blue 400 PipePro as the smallest, lightest and most powerful welder in its class, it suits the compact welding rigs used by pipeline subcontractors. Seven Star LLC supports buyers in Muscat, Sohar, Duqm and across the GCC with help in choosing feeders and remotes, and technical support with selection. For shop-based pipe spools, compare it with the Lincoln Electric Power Wave S500 or the portable ESAB Rebel EMP 285ic, and pair heavy plate seams with consumables such as LongTeng EL8 submerged arc wire. The full range is listed under engine-driven welders.

Technical Specifications of the Miller Big Blue 400 PipePro

Values for the Miller Big Blue 400 PipePro below are copied from the manufacturer’s spec sheet; they are subject to change without notice by Miller.

Request a Quote for the Miller Big Blue 400 PipePro

To order the Miller Big Blue 400 PipePro through Seven Star LLC, send a formal RFQ with the stock number, the enclosure finish and the feeders, remotes and field accessories you need, such as the ArcReach SuitCase 12, the ArcReach Smart Feeder, the engine filter kit or the spark arrestor kit. Download the Miller spec sheet from this page for the full accessory list, and contact our welding team in Muscat for current availability and engineering support anywhere in Oman and the GCC.
