Brand: Miller

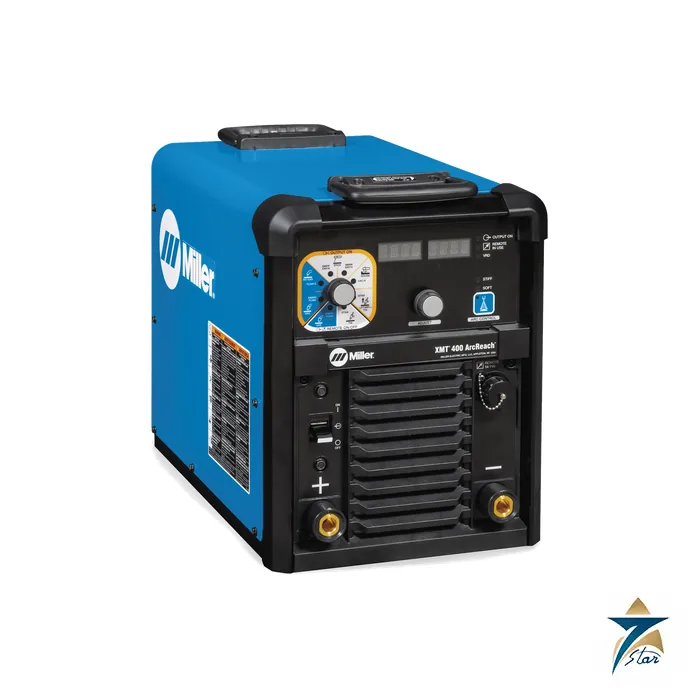

Miller XMT 400 ArcReach Multiprocess Welding Power Source
Description
Overview of the Miller XMT 400 ArcReach
The Miller XMT 400 ArcReach is a portable CC/CV multiprocess inverter that Miller calls the next step in the XMT legacy. According to the spec sheet (index DC/18.97, issued November 2025), it lets a contractor simplify the fleet and tackle more jobs with one machine: MIG, pulsed MIG, RMD, stick, TIG, flux-cored, carbon arc gouging rated for 5/16-inch carbons, and even induction heating when combined with the ArcReach Heater. On three-phase power it delivers 400 A at 36 VDC at 60% duty cycle, yet the power source weighs only 34 kg.
Seven Star LLC supplies the Miller XMT 400 ArcReach to construction contractors, shipyards, power plant maintenance teams and fabrication shops in the Sultanate of Oman and across the GCC. Our Muscat team helps clients choose between the MIG/flux-cored, stick/TIG and RMD/pulse system packages and supports them with quotations on request and engineering advice.
Inverter Technology and Auto-Line Input
As general background, an inverter power source rectifies the incoming supply, switches it at high frequency through a small transformer and then regulates the output electronically. This is why a 400 A class machine can be carried by one or two people. Miller adds Auto-Line, which accepts any input from 208 to 575 V, single- or three-phase, without manual linking. The manufacturer describes it as an ideal solution for dirty or unreliable input power, a common situation on sites in Oman that are fed by temporary generators or long distribution runs.
Inside, Wind Tunnel Technology routes cooling air so that electrical components and PC boards are protected from dirt, dust and debris, and Fan-On-Demand runs the fan only when needed to reduce noise, energy use and contaminants. Adaptive Hot Start helps promote fast positive arc ignition, and infinite arc control in stick and wire modes allows fine tuning on tough materials and out-of-position work. A universal connector system lets the Miller XMT 400 ArcReach be configured with Tweco-, Dinse- or Cam-Lok-style output receptacles.
ArcReach Control at the Point of Use
The defining feature of the Miller XMT 400 ArcReach is ArcReach. Weld settings are carried over the existing weld cable between the power source and an ArcReach SuitCase feeder, ArcReach Smart Feeder or ArcReach Stick/TIG Remote, so welders do not trace cables hundreds of feet back to the machine and the business no longer maintains easily damaged control cords. Cable Length Compensation automatically adjusts the output for voltage drop in long leads, so the operator gets the voltage he sets.
Several safeguards come with the system. Connecting an ArcReach accessory locks out the power source panel so other workers cannot change parameters by accident. Auto-Process Select sets the correct weld process from the polarity applied at the accessory, and once the accessory is removed the machine returns to its previous process and settings. Operators can also Adjust While Welding with the arc on. ArcReach equipment works with non-ArcReach accessories, but Miller notes the full benefit needs the complete ArcReach system.
Key Features of the Miller XMT 400 ArcReach
From the Miller literature, the main capabilities of the Miller XMT 400 ArcReach are:
- True multiprocess output covering MIG, pulsed MIG and RMD with the Smart Feeder, stick, TIG, flux-cored and air carbon arc gouging rated for 5/16-inch carbons.
- Rated output of 400 A at 36 VDC at 60% duty cycle on three-phase power and 300 A at 32 VDC at 60% on single-phase power.
- Auto-Line input from 208 to 575 V, single- or three-phase, with no manual linking.
- ArcReach cordless remote control with Cable Length Compensation and Adjust While Welding.
- Voltage Reduction Device that lowers open-circuit voltage to 25/12 VDC when active.
- Wind Tunnel Technology and Fan-On-Demand cooling for dusty environments.
- Universal connector system for Tweco-, Dinse- or Cam-Lok-style receptacles.
- Net weight of 34 kg, which Miller describes as the smallest and lightest machine in its amperage class.
Construction, Shipbuilding and Plant Applications
Miller lists construction, shipbuilding, power generation plants, rental fleets, maintenance and repair operations and fabrication as typical uses for the Miller XMT 400 ArcReach. In Oman these map onto structural steel erection for industrial buildings in Sohar and Duqm, ship repair at the drydock in Duqm, outage work at gas-fired power and desalination plants along the Batinah coast, and rental fleets serving contractors across the GCC. Multi-pack racks of four or six units, fused for 460/575 V, are available where many operators work from one supply.
The Miller XMT 400 ArcReach also pairs well with engine drives such as the Big Blue 400 PipePro, which can power it from auxiliary output for a second arc. Seven Star LLC supports buyers with quotations on request and engineering support from Muscat. Compare it with the Lincoln Electric Power Wave S500 for advanced waveform work or with the lighter ESAB Rebel EMP 285ic, and for heavy plate seams consider LongTeng EL8 submerged arc wire. More options are listed under multi-process welding machines.
Choosing the right package is mostly a question of process. Miller offers the power source as a MIG and flux-cored system with an ArcReach SuitCase 12 feeder and Bernard BTB 300 A gun, as a stick and TIG system with the ArcReach Stick/TIG Remote, and as an RMD and pulse system with the ArcReach Smart Feeder and Bernard PipeWorx 300-15 gun. Crews doing structural flux-cored work usually start with the first package, while pipe crews that want RMD root passes and pulsed fill passes generally need the Smart Feeder version.
Technical Specifications of the Miller XMT 400 ArcReach
The following data for the Miller XMT 400 ArcReach come from the Miller spec sheet and are subject to change without notice.
| Parameter | Specification |
|---|---|
| Model | XMT 400 ArcReach power source, stock no. 907865 (208–575 V, 50/60 Hz, Tweco-style receptacles) |
| System packages | 951000113 MIG/flux-cored system; 951000114 stick/TIG system; 951000112 RMD/pulse system |
| Input power | Auto-Line 208–575 V, single- or three-phase |
| Voltage range, CV mode | 10–38 V |
| Amperage range, CC mode | 5–425 A |
| Rated output, three-phase | 400 A at 36 VDC, 60% duty cycle (17.1 kVA, 16.0 kW) |
| Rated output, single-phase | 300 A at 32 VDC, 60% duty cycle (11.5 kVA, 10.8 kW) |
| Input amps at rated output, three-phase | 47.4 A at 208 V; 42.4 A at 230 V; 24.4 A at 400 V; 21.4 A at 460 V; 18.0 A at 575 V |
| Maximum open-circuit voltage | 91 VDC (25/12 VDC with Voltage Reduction Device active) |
| Carbon arc gouging | Rated for 5/16 in carbons |
| Dimensions (H × W × D) | 438 × 324 × 514 mm (17.25 × 12.75 × 20.25 in) |
| Net weight | 34.0 kg (75 lb) |
Request a Quote for the Miller XMT 400 ArcReach
Send Seven Star LLC an RFQ for the Miller XMT 400 ArcReach stating whether you need the power source alone, a complete system package or a multi-pack rack, together with the feeders and remotes for your crew. The Miller spec sheet on this page lists every component and accessory. Our Muscat team provides quotations on request and engineering support throughout Oman and the GCC.
See also: Miller XMT 650 CC/CV Multiprocess Welding Power Source.
Datasheets & Documents
- Datasheet Miller XMT 400 ArcReach Systems Spec Sheet (DC/18.97) Download
Reviews (0)
How would you rate this product? Cancel reply
About brand
Miller Electric is the American maker of arc welding and cutting equipment: TIG, stick and multiprocess power sources, engine-driven welders, plasma cutters, induction heating systems, guns and welding helmets. Niels Miller built his first arc welder in his home in Appleton, Wisconsin, in 1929. The company, still headquartered in Appleton, has been part of Illinois Tool Works (ITW) since 1993 and sits in ITW's welding segment.
Seven Star LLC sources and supplies Miller welding power sources, engine-driven welders, induction heating systems, MIG guns and auto-darkening helmets for fabricators and contractors in Oman, and checks each model and its input power configuration against the manufacturer's documentation before quoting.
Miller company profile
| Founded | 1929, Appleton, Wisconsin, USA, by Niels Miller |
|---|---|
| Incorporated | 1935, as Miller Electric Mfg. Co. |
| Ownership | Illinois Tool Works (NYSE: ITW) since 1993; part of ITW's welding segment |
| Headquarters | Appleton, Wisconsin, USA |
| Product families | Dynasty and Maxstar TIG inverters, XMT and PipeWorx multiprocess systems, Millermatic MIG welders, Trailblazer and Big Blue engine drives, Spectrum plasma cutters, ProHeat induction heating, MIG guns and Digital Infinity helmets |
Milestones
- 1929: Niels Miller starts building arc welders at his home in Appleton.
- 1935: The business is incorporated as Miller Electric Mfg. Co.
- 1971: The Millermatic combines power source and wire feeder in one unit, bringing MIG welding to a wider market.
- 1993: Illinois Tool Works acquires Miller Electric.
Miller product families listed here
Miller welding machines on this page cover most processes used in plant construction and maintenance:
- TIG and stick: Dynasty 400 AC/DC and Maxstar 210 STR
- Multiprocess: XMT 400 ArcReach, XMT 650 and the PipeWorx 400 pipe welding system
- Engine-driven welders: Trailblazer 330 and Big Blue 800 Duo Pro
- Induction heating: ProHeat 35
- Guns and helmets: XR-Aluma-Pro push-pull gun; T94, Classic, Digital Performance, Digital Elite and Digital Infinity helmets
Where Miller equipment is used
An XMT or PipeWorx set suits pipe spools and structural work where one power source must run stick, TIG, MIG and flux-cored procedures. Dynasty machines handle aluminum and stainless TIG. Trailblazer and Big Blue engine drives go where no mains supply exists, such as pipelines, tank erection and remote maintenance in the GCC. The ProHeat 35 is used for preheat and post-weld heat treatment of pipe joints.
Miller products we list
Ordering Miller machines and parts: what we need
State the model and the Miller part number of the exact package, because the same machine is sold in several configurations. Give the supply at your site (voltage, phase and 50 Hz), the process and maximum current, and the accessories needed: wire feeder, remote control, cable length, torch or gun, cooler, running gear. For spare parts, the serial number from the rating label is essential, since Miller parts lists are issued by serial number range. For helmets, name the series and lens type.
Facts checked against published histories of Miller Electric and ITW, October 2026.
FAQ
Questions about the Miller XMT 400 ArcReach Multiprocess Welding Power
Answers from our engineering team on installation, compatibility and integration.
01What input power does the Miller XMT 400 ArcReach accept?
Auto-Line allows any input voltage from 208 to 575 V, single- or three-phase, with no manual linking. Miller describes this as an ideal solution for dirty or unreliable input power, which is common on construction sites fed by temporary generators.
02What is the rated output of the XMT 400 ArcReach?
On three-phase input the machine is rated 400 A at 36 VDC at 60% duty cycle, and on single-phase input 300 A at 32 VDC at 60% duty cycle. The spec sheet lists a CV range of 10 to 38 V and a CC range of 5 to 425 A, with 91 VDC maximum open-circuit voltage.
03What does ArcReach add compared with a conventional XMT?
ArcReach sends control information over the existing weld cable, so the operator changes voltage or process at an ArcReach SuitCase feeder, Smart Feeder or Stick/TIG Remote without a control cord. Cable Length Compensation adjusts output for voltage drop on long leads, and connecting an ArcReach accessory locks out the front panel to prevent accidental changes.
04Can the XMT 400 ArcReach run from an engine-driven welder?
Yes. Miller lists the XMT 400 ArcReach as an inverter that can run from the auxiliary power of engine drives such as the Big Blue 400 PipePro to give a second arc, provided the generator output meets the input requirement in the owner's manual.
05Does Seven Star LLC supply the Miller XMT 400 ArcReach and its feeders?
Seven Star LLC supplies the power source, ArcReach feeders, remotes and multi-pack racks to fabricators and contractors in Oman and across the GCC, with engineering support from Muscat.
