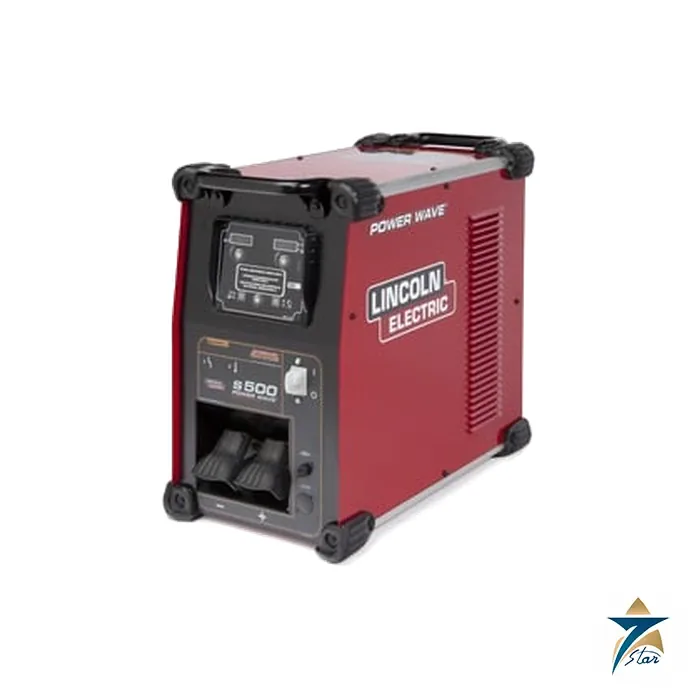

Lincoln Electric Power Wave S500

Overview

Lincoln Electric Power Wave S500 is an inverter-based advanced process welder engineered for fabrication shops that need one machine capable of MIG, pulsed MIG, flux-cored, stick, and TIG welding at outputs up to 550 amps. Built around Lincoln’s Waveform Control Technology® and PowerConnect™ automatic input-voltage sensing, the Lincoln Electric Power Wave S500 delivers rated output of 550A/41.5V at 40% duty cycle and 450A/36.5V at 100% duty cycle, giving fabricators the flexibility to run demanding, high-deposition welding processes without derating on long production runs.

Working closely with plant engineers in the region, Seven Star LLC proudly supplies the Lincoln Electric Power Wave S500 to fabrication shops, EPC contractors, and industrial maintenance teams across Oman and the wider GCC. Buyers in the Sultanate of Oman and neighboring Gulf markets benefit from genuine Lincoln Electric equipment, full manufacturer warranty coverage, and access to certified consumables and spare parts through a local, authorized support channel.

Operating Principle

The Lincoln Electric Power Wave S500 uses a digital inverter power source controlled by Lincoln’s Waveform Control Technology, which shapes the output current and voltage waveform many thousands of times per second rather than relying on a fixed transformer-based characteristic. This allows the same physical machine to switch between welding processes — from a soft, spatter-controlled short-circuit MIG transfer to an aggressive pulsed spray transfer for thicker material — simply by selecting a different digital weld program, rather than requiring a different power source for each process.

PowerConnect™ technology automatically senses and adjusts to any input voltage between 200 and 600V, three-phase, 50/60 Hz, without manual voltage-tap changes, which is particularly valuable in Gulf industrial facilities where available site power can vary between plants. The Tribrid™ Power Module architecture improves overall electrical efficiency, reducing input current draw and generator loading compared with a conventional inverter design, an important factor for site welding powered from portable generator sets.

Engineering Design of the Lincoln Electric Power Wave S500

Physically, the Lincoln Electric Power Wave S500 is housed in an industrial-rated steel enclosure weighing approximately 150 lbs (68 kg) and measuring 22.5 x 14 x 24.8 inches (571 x 355 x 630 mm), sized to be moved around a fabrication floor on a cart or integrated into a fixed welding cell. Built-in Ethernet connectivity allows the machine to report weld data to Lincoln’s CheckPoint® production monitoring software, giving quality and production managers visibility into weld parameters, arc-on time, and consumable usage across a shop floor of multiple machines.

The Lincoln Electric Power Wave S500 is designed to pair with Lincoln PowerFeed® wire feeders for MIG and flux-cored applications, and integrates directly into robotic and automated welding cells through digital communication protocols, making it equally suitable as a standalone manual welder or as the power source at the center of an automated production line. STT® (surface-tension transfer) and Rapid Arc® process options extend the machine’s capability into root-pass pipe welding and high-speed thin-gauge applications respectively.

Key Features

The Lincoln Electric Power Wave S500 combines multi-process flexibility with the durability fabrication shops demand from a primary production welder:

• Output range of 5–550A, rated 550A/41.5V at 40% duty cycle and 450A/36.5V at 100% duty cycle.
• Supports MIG, pulsed MIG, flux-cored, stick, and TIG welding processes from one power source.
• Waveform Control Technology® enabling precise, process-specific arc characteristics.
• PowerConnect™ automatic voltage sensing across 200–600V, three-phase, 50/60 Hz input.
• Tribrid™ Power Module design for improved electrical efficiency and reduced generator loading.
• Built-in Ethernet connectivity for Lincoln CheckPoint® production data monitoring.
• Compatible with Lincoln PowerFeed® wire feeders and robotic automation integration.
• STT® and Rapid Arc® process options for root-pass pipe and high-speed thin-gauge welding.

Industrial Applications

The Lincoln Electric Power Wave S500 is specified across heavy fabrication shops, shipbuilding yards, structural steel erection, and pipeline construction projects where a single machine must reliably cover multiple welding processes on a demanding production schedule. Its automatic voltage sensing and robust enclosure also make it well suited to industrial maintenance welding in oil and gas facilities, power generation plants, and desalination infrastructure, where site power quality and ambient conditions are less controlled than in a dedicated welding shop.

With fast quotation turnaround and technical support, Seven Star LLC distributes and supports the Lincoln Electric Power Wave S500 across Oman’s growing fabrication and industrial maintenance sector, including facilities serving the Sohar and Salalah industrial and free zones and the wider Muscat metropolitan area. Regional fabricators benefit from a welding platform proven in demanding Gulf production environments, backed by genuine Lincoln Electric consumables, factory-trained technical support, and a local authorized-partner service channel.

Technical Specifications

Key parameters for the Lincoln Electric Power Wave S500 advanced process welder:

Request a Quote for Lincoln Electric Power Wave S500

Fabrication shops and EPC contractors in Oman and the GCC can request a formal quotation for the Lincoln Electric Power Wave S500 directly from Seven Star LLC, including current regional stock availability, full technical datasheets, and process-selection support for MIG, TIG, stick, or flux-cored applications. With regional stock and engineering support in Muscat, Seven Star LLC’s welding equipment division is available to advise on machine sizing, wire feeder pairing, and automation integration — contact our technical sales team today to begin your Power Wave S500 project.
