Brand: CK Worldwide

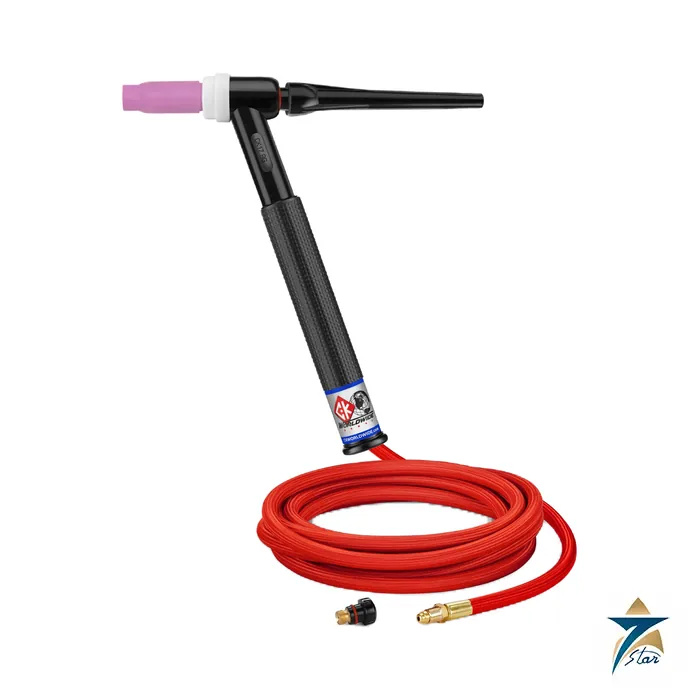

CK Worldwide CK17 Gas-Cooled TIG Torch
Description
A 150 A gas-cooled TIG torch on 3 Series parts
The CK Worldwide CK17 is a gas-cooled TIG torch rated at 150 A, ACHF or DCSP, at 100% duty cycle. CK states it is the same as its CK150. It runs without a water cooler, so it is often chosen for field repairs, site fabrication and workshops where running coolant lines is not practical.
Unlike the smaller CK9, the CK17 uses 3 Series consumables, which take a 3/8 in-32 thread and are shared with the CK18 and CK26. Body options are rigid (RG), flex (FX), pencil (CK17P) and a thread-on rigid body (RG-T) that uses the threaded 17HT handle instead of the standard HM handle.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | CK Worldwide / CK17 |
| Cooling | Gas-cooled |
| Rating | 150 A ACHF or DCSP at 100% duty cycle |
| Body styles | Rigid, flex, pencil, thread-on; valved CK17V versions |
| Rigid / thread-on body | 8-1/8 in (20.6 cm), 5 oz (141 g) |
| Flex body | 8-3/4 in (22.2 cm), 5 oz (141 g) |
| Pencil body | 8-1/2 in (21.6 cm), 3 oz (85 g) |
| Handles | HM (standard), 17HT (thread-on) |
| Consumables | 3 Series, thread 3/8 in-32 |
| Power cable thread | 3/8 in-24 RH |
| Example packages | CK17-12-R RG, CK17-25-2SF FX, CK17V-12-R RG-T |
| Gas purge at installation | 20 cfh inert gas |
Cables, adapters and accessory kits
Packages come with 1-piece or 2-piece cables of 12.5 ft (3.8 m) or 25 ft (7.6 m), in standard or Super-Flex hose. The manual lists 1-piece power cables 1512PCHF and 1525PCHF, Super-Flex 1512PCSF and 1525PCSF, 2-piece leads 1512CN and 1525CN, and argon hoses 212AH or 225AH. Machine-side connectors include SL2-25 and SL2-35 for DINSE 25 and 35 sockets, SL2-25M and SL2-35M for gas-through DINSE, SL-2 for Tweco and SL2-CL for Cam-Lock.
The 3 Series accessory kit AK-2 contains a short back cap, collets and collet bodies in .040, 1/16 and 3/32 in, alumina cups #4 to #6 and ceriated tungsten. AK-3GS is the gas-saver kit, with tungsten adapters, a heatshield and a #8 Pyrex cup.
Choosing between the CK17 and its relatives
The CK17 is the lightest 3 Series option. If the job regularly needs more than 150 A without a cooler, the CK26 gas-cooled torch steps up to 200 A on the same consumables; with a cooler, the CK18 reaches 350 A. Where a 2 Series fleet is already in use, the CK20 water-cooled TIG torch and CK9 share a different consumable family.
Thread-on bodies are useful where the handle must not rotate on the body, for example when a remote amperage control or finger switch is fixed to the handle. Pencil bodies are shorter at the back and reach into narrow grooves, at the cost of a lower practical current because there is less body mass to absorb heat. When converting a torch from standard collets to gas-saver parts, change the collet body, collet and cup together so the parts seat correctly.
Documents and quotation
The CK Worldwide 3 Series torch manual (Form TM-3) is attached under Datasheets & Documents. Our TIG Torches & MIG Guns range lists other torches.
For a quotation, send the CK package number or the body style, valve, cable type and length and the machine connection, plus quantities.
Datasheets & Documents
- Manual CK Worldwide Torch Manual for CK17, CK18, CK26 (Form TM-3) Download
Reviews (0)
About brand
CK Worldwide is a family-owned manufacturer of TIG welding torches and accessories in Auburn, Washington, USA. Art Kleppen and Jim Conley founded the company in 1967 to make TIG welding more efficient, and it still designs and manufactures its products in Auburn. Its developments include silicone rubber insulated torch heads, Gas Saver kits, Max-Flo water cooling, wedge collets, Flex-Loc torches and Super-Flex hoses.
Seven Star LLC is an independent supplier in Muscat. We list the CK20 water-cooled TIG torch and source CK Worldwide torches, hoses and consumables on request.
CK Worldwide product groups
The TIG torch program covers the Standard, MasterTIG, Diamond and UltraTIG series, machine torches and Airco torches, in gas-cooled and water-cooled versions. Accessories include Gas Saver kits, wedge collets, cables and hoses, cable connectors, trailing shields, purge cups and torch parts. The range also includes remote amperage controls, cold wire feed equipment, a purge chamber, tungsten electrodes with a grinder, and TIG machines with a water cooler.
Ordering CK Worldwide torches and parts: what we need
Give the CK part number, or the torch series, head style (rigid, flex or pencil), valve option, cable length and hose type. For consumables state the thread series and tungsten diameter, and name the machine connection so the correct adapter can be checked.
Related products
Frequently Asked Questions
What is the rating of the CK17?
150 A ACHF or DCSP at 100% duty cycle; CK lists it as the same as the CK150.
Which consumables does the CK17 use?
3 Series consumables with a 3/8 in-32 thread, shared with the CK18 and CK26.
What is the thread-on version?
The CK17 RG-T is a rigid body that uses the threaded 17HT handle instead of the standard HM handle.
Which DINSE adapters suit CK17 cables?
SL2-25 and SL2-35 for standard DINSE 25 and 35 sockets, and SL2-25M or SL2-35M for gas-through.
Does the CK17 need water cooling?
No. It is gas-cooled; for higher continuous currents CK offers the water-cooled CK18.
