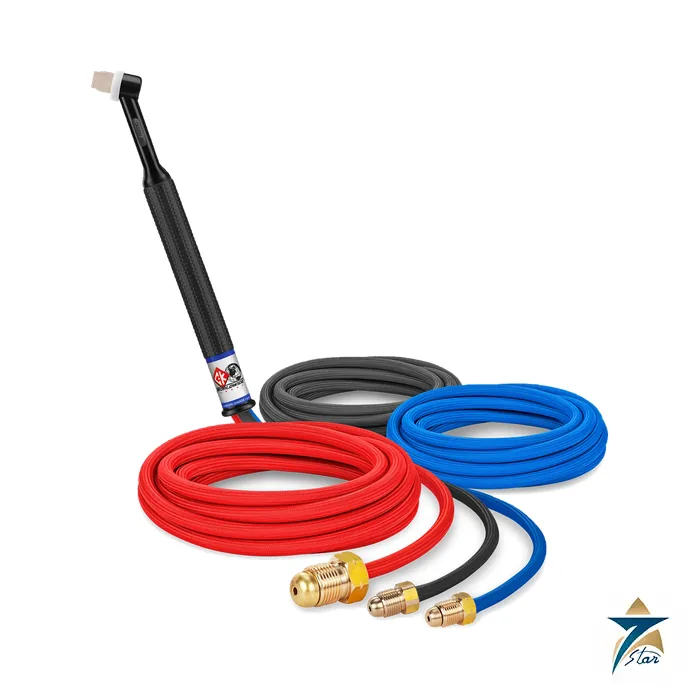

CK Worldwide CK24W Water-Cooled TIG Torch
Description
A small 180 A water-cooled TIG torch for tight joints
The CK Worldwide CK24W is a water-cooled TIG torch rated at 180 A, ACHF or DCSP, at 100% duty cycle. CK lists it as the same torch as the CK180. It uses the small 8 Series consumables, which keeps the head short and narrow, so it reaches into corners, small-bore tube and fillet joints that a 2 Series or 3 Series head cannot get close to, while the water cooling keeps the handle cool on long runs.
The body is rigid, with or without a gas valve, and CK offers extended necks and two low-profile package styles for very restricted access.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | CK Worldwide / CK24W (same as CK180) |
| Cooling | Water-cooled |
| Rating | 180 A ACHF or DCSP at 100% duty cycle |
| Head style | Rigid; valved body CK24WV |
| Body length / weight | 8-1/8 in (20.6 cm), 3-1/2 oz (99 g) |
| Consumables | 8 Series |
| Extended bodies | CKL180 4-1/2 in neck (overall 10 in / 25.4 cm), CKXL180 7-1/2 in neck (13 in / 33.0 cm), CKXXL180 11-1/2 in neck (17 in / 43.2 cm) |
| Extended packages | CKL1812 / CKL1825, CKXL1812 / CKXL1825, CKXXL1812 / CKXXL1825 (Tri-Flex; SF suffix for Super-Flex) |
| Low-profile packages | Ozmo CK24W-12SF-OZMO / CK24W-25SF-OZMO; cut-down CK24W-12SF-CD / CK24W-25SF-CD |
| Power cable | 212PC / 225PC, Super-Flex 212PCSF / 225PCSF |
| Water hose | 212WH / 225WH, Super-Flex 212WHSF / 225WHSF |
| Argon hose | 212AH / 225AH, Super-Flex 212AHSF / 225AHSF |
Extended necks, Ozmo and cut-down versions
The extra-length series moves the head away from the handle for deep joints, inside vessels or behind flanges. Cable lengths are 12.5 ft (3.8 m) or 25 ft (7.6 m). For the opposite problem, where there is no room above the joint, CK offers two 180 A low-profile packages on Super-Flex hoses. The Ozmo package uses kit KIT-OZMO (heatshield, two gas lenses, two collets, two alumina cups and five 3/32 in tungstens); the cut-down package uses KIT-CD with the same content in cut-down form. Both kits also fit the CK24, CK80, CK90 and CK180.
Selecting between the CK24W and other CK torches
For work below about 80 to 90 A, the gas-cooled CK24 uses the same 8 Series parts without needing a cooler. Above 180 A a 2 Series water-cooled torch such as the 250 A CK20 is the next step, at the cost of a larger head. Because the CK24W is water-cooled, the hoses must be connected to a recirculating cooler; the machine ends of the power cable and water hose are 7/8 in-14 LH.
Gas lens parts for the 8 Series, such as 8CG collets and 8GHS heatshields, are listed in the same manual and help where a longer tungsten stick-out and smoother gas coverage are needed, for example on stainless root runs.
Documents and quotation
The CK Worldwide torch manual for the CK24 and CK24W (8 Series) is attached under Datasheets & Documents. Related torches are in our TIG Torches & MIG Guns category.
For a quotation, give the package number or body, neck length, valve option, cable type and length and the power source connection, with quantities.
Datasheets & Documents
- Manual CK Worldwide Torch Manual for CK24 and CK24W (Form TM-8) Download
Reviews (0)
About brand
CK Worldwide is a family-owned manufacturer of TIG welding torches and accessories in Auburn, Washington, USA. Art Kleppen and Jim Conley founded the company in 1967 to make TIG welding more efficient, and it still designs and manufactures its products in Auburn. Its developments include silicone rubber insulated torch heads, Gas Saver kits, Max-Flo water cooling, wedge collets, Flex-Loc torches and Super-Flex hoses.
Seven Star LLC is an independent supplier in Muscat. We list the CK20 water-cooled TIG torch and source CK Worldwide torches, hoses and consumables on request.
CK Worldwide product groups
The TIG torch program covers the Standard, MasterTIG, Diamond and UltraTIG series, machine torches and Airco torches, in gas-cooled and water-cooled versions. Accessories include Gas Saver kits, wedge collets, cables and hoses, cable connectors, trailing shields, purge cups and torch parts. The range also includes remote amperage controls, cold wire feed equipment, a purge chamber, tungsten electrodes with a grinder, and TIG machines with a water cooler.
Ordering CK Worldwide torches and parts: what we need
Give the CK part number, or the torch series, head style (rigid, flex or pencil), valve option, cable length and hose type. For consumables state the thread series and tungsten diameter, and name the machine connection so the correct adapter can be checked.
