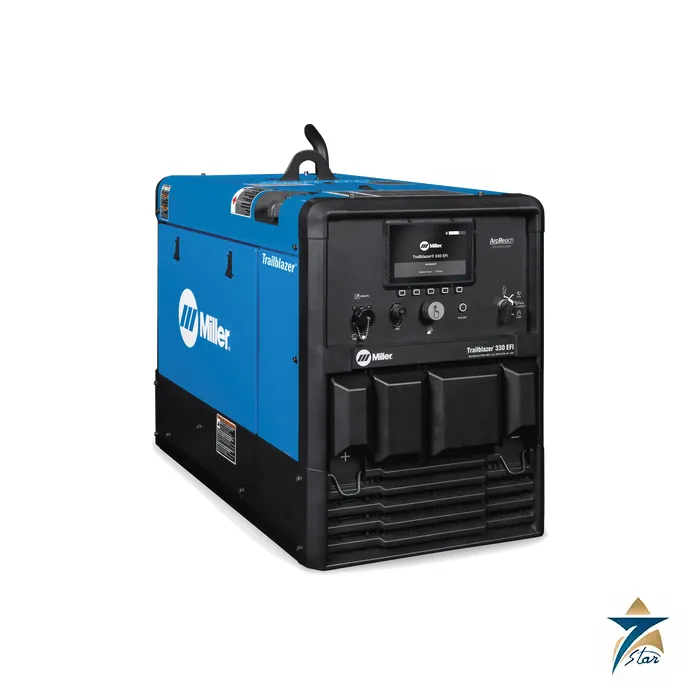

Miller Trailblazer 330 Gas Engine-Driven Welder

Overview of the Miller Trailblazer 330

The Miller Trailblazer 330 is a compact, gasoline engine-driven welder generator built for fabrication, maintenance, repair, structural steel, sheet metal and pipe work. The Miller spec sheet (index ED/4.76, issued July 2026) claims that no other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise. It runs stick and DC TIG from 20 to 330 A, MIG and flux-cored from 15 to 40 V with a wire feeder, and carbon arc gouging with 3/16-inch carbons, while supplying up to 12,000 W of peak auxiliary power for tools.

Seven Star LLC supplies the Miller Trailblazer 330 to service companies, maintenance contractors and facility teams in the Sultanate of Oman and the wider GCC that need a light, truck-mounted welder for repair calls. Our engineers in Muscat help clients select between the standard and EFI models and the available options, and confirm availability and lead time at quotation.

Advanced Auto-Speed and Engine Design

As general information, an engine-driven welder normally holds the engine at a set speed whenever there is a load. Miller instead fits the Miller Trailblazer 330 with Advanced Auto-Speed, which varies engine speed between 1,800 and 3,600 rpm to match the weld and battery-charge demand. The manufacturer states this reduces fuel consumption, maintenance cost and noise. The base model uses a Rehlko CH730 twin-cylinder, four-cycle, overhead-valve, air-cooled industrial engine rated 23.5 HP at 3,600 rpm, and the EFI model uses the electronically fuel-injected Rehlko ECH730 rated 23 HP. Both carry an 11-gallon (41.6 L) fuel tank and shut down on low oil pressure.

Inside the housing the engine is rotated towards the front to create reversed airflow. Miller explains that this layout eliminates hot air recirculation when the machine is mounted in tight spots, keeps internal parts cool and contributes to lower sound and a smaller size. The spec sheet says the current Miller Trailblazer 330 is over 80 pounds lighter and 13 percent smaller than the previous model, which frees space and payload on service trucks.

Arc Performance and Control Technologies

Dynamic DIG is a time-based algorithm that automatically adjusts the current needed to clear a short circuit in stick welding, giving a smoother arc that can be tailored to the application, material, fit-up and technique. Auto-Set offers predefined weld settings so that operators of all skill levels can set the Miller Trailblazer 330 correctly, and an integrated 10-pin connection lets Spoolmate and Spoolmatic spool guns plug in directly for aluminium MIG without adapters.

ArcReach uses the existing weld cable to carry control information between the power source and an ArcReach feeder or Stick/TIG remote, so parameter changes are made at the point of use. Wireless interface control is a factory-installed option on select carbureted and EFI models, providing remote process selection, parameter changes, four preset programs, engine start and stop and service reminders. Front-panel maintenance displays, an oil check through the top access door, toolless panels and single-side fuel fill and oil drain simplify daily servicing.

Key Features of the Miller Trailblazer 330

Highlights of the Miller Trailblazer 330 drawn from the manufacturer’s document are listed below.

• DC stick and DC TIG output from 20 to 330 A, rated 330 A at 30 V at 100% duty cycle.
• MIG and flux-cored output from 15 to 40 V, rated 325 A at 30.25 V at 100% duty cycle, with RMD available through the ArcReach Smart Feeder.
• Auxiliary power of 12,000 W peak and 10,500 W continuous with four percent total harmonic distortion.
• Optional Excel power giving 2,400 W of 60 Hz pure sine power at 120 V and 20 A at idle and while welding.
• Optional battery charge and crank assist on EFI models: 12/24 V with 150 A charge and 300 A crank assist.
• Advanced Auto-Speed engine control between 1,800 and 3,600 rpm for lower fuel use and noise.
• Direct 10-pin spool gun connection for aluminium welding with Spoolmate and Spoolmatic guns.
• Compact footprint of 673 × 511 × 941 mm and a net weight of 181 kg without fuel.

Service, Maintenance and Fabrication Uses in Oman

The Miller Trailblazer 330 is aimed at mobile work rather than continuous heavy pipeline duty. Across Oman it is a practical choice for plant maintenance crews at desalination and power facilities, mechanical contractors installing steel structures and handrails, agricultural and fisheries workshops, and service trucks that answer breakdown calls along the coastal highways between Muscat, Sohar and Salalah. The combination of a welding arc, a gouging capability and 10,500 W of continuous generator power means one machine can weld a bracket, run a grinder and light the work area.

For aluminium boat and tank repairs, the direct spool gun connection on the Miller Trailblazer 330 is a useful extra. Seven Star LLC supports buyers in Oman and the GCC with supply on request, help in selecting feeders and spool guns, and engineering support from Muscat. Workshop buyers may also compare the ESAB Rebel EMP 285ic and the Lincoln Electric Power Wave S500, while heavy plate fabricators may need submerged arc consumables such as LongTeng EL8. See every machine in our engine-driven welder category.

Technical Specifications of the Miller Trailblazer 330

The table lists data for the Miller Trailblazer 330 taken from the Miller spec sheet, which notes the figures are subject to change without notice.

Request Pricing for the Miller Trailblazer 330

For a quotation on the Miller Trailblazer 330, send Seven Star LLC an RFQ with the stock number, the engine version and any options such as Excel power, wireless interface control or an electric fuel pump. The Miller spec sheet attached to this page lists the field options and accessories. Our Muscat team provides quotations on request and engineering support throughout Oman and the GCC.
