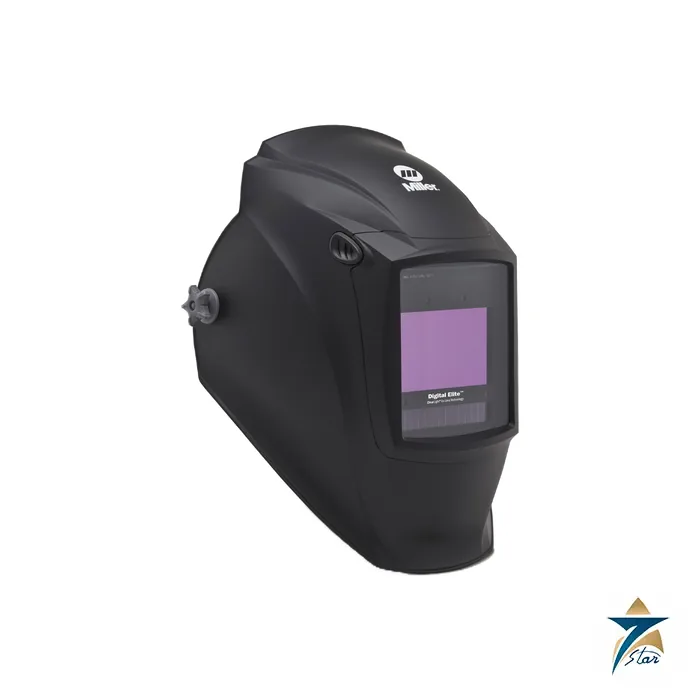

Miller Digital Elite Auto-Darkening Welding Helmet

Description

Overview

The Miller Digital Elite is a four-sensor auto-darkening welding helmet from Miller Electric Mfg. LLC of Appleton, Wisconsin, an ITW Welding company. It sits in the upper middle of the Miller helmet range and is aimed at welders who switch between processes during a shift: stick and MIG on structural steel in the morning, low-amperage TIG on stainless in the afternoon, then plasma cutting or grinding before the job is closed out. Instead of carrying separate shields for each task, the operator selects one of four modes on a digital keypad inside the shell and keeps the same helmet on. The Miller Digital Elite combines a 9.2 square inch (59.48 sq cm) viewing window, a ClearLight 4x lens rated 1/1/1/2 for optical clarity under EN 379, and a switching speed of 1/25,000 second.

Seven Star LLC supplies the Miller Digital Elite helmet, its replacement lenses and its consumables to fabrication shops, maintenance departments and contractors in Muscat, Sohar, Duqm and Salalah, and to project teams across the GCC. We hold the manufacturer spec sheet for the series, can help match shade and accessory choices to the processes on your site, and quote complete welder PPE kits so that every person on a crew is equipped the same way.

How the Auto-Darkening Filter Works

As general background, an auto-darkening filter is a stack of liquid-crystal cells between polarising films. In the light state the cells let visible light pass so the welder can see the joint, the electrode and the surroundings through the lens. When the arc strikes, optical sensors on the front of the cartridge detect the flash and the control electronics apply a voltage across the cells, rotating the polarisation and darkening the lens to the selected shade in a fraction of a millisecond. Ultraviolet and infrared protection is provided permanently by filter layers in the lens, whether the cells are dark or light. On the Miller Digital Elite the light state is shade 2.5 and the switching time is 1/25,000 second, so the eye sees almost no flash at arc start.

The weak point of any optical-sensor helmet is that a sensor can be shaded by a pipe, a column or the welder’s own arm, or confused by strong sunlight. Miller addresses this with X-Mode, which senses the weld electromagnetically rather than only by light. According to the spec sheet, X-Mode reduces sunlight interference and continuously detects the arc even if the sensors are blocked. That matters for outdoor pipeline tie-ins, out-of-position welds and work under bright Gulf sun, where conventional helmets can flicker open at the wrong moment.

Engineering Design of the Miller Digital Elite

The Miller Digital Elite shell carries a single replaceable ClearLight 4x auto-darkening lens (stock no. 296762) protected by a front cover lens and an inside cover lens. Four arc sensors are spaced around the cartridge to widen the detection angle. Power comes from a CR2450 coin cell (217043). The digital control panel lets the user set shade, delay and sensitivity precisely, and half-shade steps allow finer adjustment than whole-number shade dials. Two memory slots store customised settings, so one welder can jump between, for example, a shade 10 MIG setting and a shade 12 high-amperage gouging setting with one press.

Two further electronic functions help in daily use. AutoSense lets the welder push and hold one button so the helmet sets its own sensitivity for the surrounding light, removing guesswork when moving from a dim workshop bay to an open yard. InfoTrack 2.0 records and displays arc time and arc count, which supervisors can use as a simple productivity check. The shell rides on Legacy headgear (290460) with a comfort cushion for all-day stability. The black version weighs 21.4 oz (607 g) and graphic versions 20.5 oz (581 g), and a range of graphic designs is offered alongside plain black (296765).

Key Features

The main features of the Miller Digital Elite listed in the manufacturer spec sheet are:

  • ClearLight 4x lens technology, which Miller states offers up to four times the clarity of helmets rated 1/1/1/1 under ANSI lens visibility testing.
  • Four operating modes: Weld at shades 8 to 13, Cut at shades 5 to 8, Grind at shade 2.5, and X-Mode at shades 8 to 13.
  • Four arc sensors and a 1/25,000 second switching speed for fast, reliable darkening.
  • X-Mode electromagnetic arc sensing that keeps the lens dark when the optical sensors are blocked or in sunlight.
  • AutoSense one-button sensitivity setting that adapts the helmet to its environment.
  • InfoTrack 2.0 display of arc time and arc count.
  • Memory function for two preset customised settings and half-shade adjustment steps.
  • TIG rating of 5 amps and below, suitable for low-current GTAW on thin stainless and nickel alloys.
  • Certifications printed on the spec sheet: ANSI Z87.1+ and CSA.
  • Four-year warranty on the auto-darkening lens, as stated by Miller.

Industrial Applications

In Oman the Miller Digital Elite fits well in multi-process environments: oil and gas maintenance workshops, refinery and petrochemical turnarounds in Sohar, fabrication yards in Duqm and Salalah, desalination and power plant repair teams, and steel structure contractors. A pipe welder can run a cellulosic root with stick, switch to a TIG hot pass on a stainless spool, and then cut a coupon with a plasma torch while staying under the same hood. The grind mode at shade 2.5 avoids lifting the helmet for disc work, which reduces exposure to grinding debris. For sites standardising on modern inverter power sources such as the Lincoln Electric Power Wave S500 or the ESAB Rebel EMP 285ic, the Miller Digital Elite gives operators a lens and control set that matches the range of processes those machines offer.

Seven Star LLC supplies the Miller Digital Elite with matching cover lenses, magnifying lenses and hard hat adapters to companies throughout the Sultanate and the wider GCC. Because cover lenses are the part of a helmet consumed most quickly, we recommend ordering 5-pack or 50-pack quantities of the front (216326 / 216326B) and inside (216327 / 216327B) cover lenses together with the helmets. You can browse other face protection items in our Welding Helmets & Face Protection, and submerged arc consumables such as the LongTeng EL8 Carbon Steel Submerged Arc Welding Wire for related shop needs.

Technical Specifications

The table summarises the Miller Digital Elite data from the manufacturer spec sheet issued August 2026 (Index No. AY/43.0).

Parameter Specification
Model Miller Digital Elite Series auto-darkening welding helmet
Lens ClearLight 4x auto-darkening lens (296762)
Viewing area 9.2 sq in (59.48 sq cm)
Light state Shade 2.5
Operating modes and shades Weld 8–13, Cut 5–8, Grind 2.5, X-Mode 8–13
Sensors 4
Switching speed 1/25,000 second
Optical clarity (EN 379) 1/1/1/2
TIG rating 5 amps and below
Weight Graphic 20.5 oz (581 g); Black 21.4 oz (607 g)
Certifications ANSI Z87.1+, CSA
Battery CR2450 (217043)
Headgear Legacy headgear (290460), included
Lens warranty Four years
Accessories Helmet bib 253882, hard hat adapters 259637 and 222003, lighting kit 282013, magnifying lenses 0.75 to 2.50

How to Order

To request a quotation for the Miller Digital Elite, send Seven Star LLC the quantity, the preferred shell design and any spare lenses or accessories you need, and our team in Muscat will respond with a formal offer and delivery terms for Oman and the GCC. The Miller Digital Elite spec sheet is available for download on this page. Contact our welding equipment team to plan a complete PPE package for your welders.

Datasheets & Documents
  • PDF Datasheet Miller Digital Elite Series spec sheet (manufacturer, Index AY/43.0) Download
Reviews (0)

Reviews

There are no reviews yet.

How would you rate this product?

It takes about 10 seconds — just tap a star. Your email is never published.

About brand

Miller Electric is the American maker of arc welding and cutting equipment: TIG, stick and multiprocess power sources, engine-driven welders, plasma cutters, induction heating systems, guns and welding helmets. Niels Miller built his first arc welder in his home in Appleton, Wisconsin, in 1929. The company, still headquartered in Appleton, has been part of Illinois Tool Works (ITW) since 1993 and sits in ITW's welding segment.

Seven Star LLC sources and supplies Miller welding power sources, engine-driven welders, induction heating systems, MIG guns and auto-darkening helmets for fabricators and contractors in Oman, and checks each model and its input power configuration against the manufacturer's documentation before quoting.

Miller company profile

Founded 1929, Appleton, Wisconsin, USA, by Niels Miller
Incorporated 1935, as Miller Electric Mfg. Co.
Ownership Illinois Tool Works (NYSE: ITW) since 1993; part of ITW's welding segment
Headquarters Appleton, Wisconsin, USA
Product families Dynasty and Maxstar TIG inverters, XMT and PipeWorx multiprocess systems, Millermatic MIG welders, Trailblazer and Big Blue engine drives, Spectrum plasma cutters, ProHeat induction heating, MIG guns and Digital Infinity helmets

Milestones

  • 1929: Niels Miller starts building arc welders at his home in Appleton.
  • 1935: The business is incorporated as Miller Electric Mfg. Co.
  • 1971: The Millermatic combines power source and wire feeder in one unit, bringing MIG welding to a wider market.
  • 1993: Illinois Tool Works acquires Miller Electric.

Miller product families listed here

Miller welding machines on this page cover most processes used in plant construction and maintenance:

  • TIG and stick: Dynasty 400 AC/DC and Maxstar 210 STR
  • Multiprocess: XMT 400 ArcReach, XMT 650 and the PipeWorx 400 pipe welding system
  • Engine-driven welders: Trailblazer 330 and Big Blue 800 Duo Pro
  • Induction heating: ProHeat 35
  • Guns and helmets: XR-Aluma-Pro push-pull gun; T94, Classic, Digital Performance, Digital Elite and Digital Infinity helmets

Where Miller equipment is used

An XMT or PipeWorx set suits pipe spools and structural work where one power source must run stick, TIG, MIG and flux-cored procedures. Dynasty machines handle aluminum and stainless TIG. Trailblazer and Big Blue engine drives go where no mains supply exists, such as pipelines, tank erection and remote maintenance in the GCC. The ProHeat 35 is used for preheat and post-weld heat treatment of pipe joints.

Miller products we list

Family Examples
Engine-Driven Welders Big Blue 400 PipePro Diesel Engine-Driven, Big Blue 400 Pro Diesel Engine-Driven Welder, Big Blue 450 Duo CST Dual-Operator Diesel, Big Blue 500 Pro Diesel Engine-Driven Welder, Big Blue 600 Pro Diesel Engine-Driven Welder, Big Blue 800 Duo Pro Dual-Operator Diesel, Bobcat 265 Gas or LP Engine-Driven Welder, Trailblazer 330 Gas Engine-Driven Welder
Welding Helmets & Face Protection Classic Series Auto-Darkening Welding Helmet, Digital Elite Auto-Darkening Welding Helmet, Digital Infinity Auto-Darkening Welding Helmet, Digital Performance Auto-Darkening Welding, T94 Auto-Darkening Welding Helmet
Multi-Process Welding Machines Dynasty 300 Multiprocess AC/DC TIG and Stick, PipeWorx 400 Multiprocess Pipe Welding System, XMT 400 ArcReach Multiprocess Welding Power, XMT 650 CC/CV Multiprocess Welding Power
TIG Welding Machines Dynasty 400 AC/DC TIG and Stick Welder, Maxstar 210 STR Stick/TIG Inverter Welder, Maxstar 400 DC TIG/Stick Welding Power Source, Syncrowave 300 AC/DC TIG and Stick Welding
MIG/MAG Welding Machines Deltaweld 500 Industrial MIG Welding Power, Millermatic 355 Pulsed MIG Welder Package, Multimatic 255 Multiprocess Welder with
Plasma Cutting Systems Spectrum 375 X-TREME Portable Air Plasma, Spectrum 625 X-TREME Air Plasma Cutter and, Spectrum 875 Air Plasma Cutter
Induction Heating & Preheating ProHeat 35 Induction Heating System
TIG Torches & MIG Guns XR-Aluma-Pro Push-Pull MIG Gun for Aluminium

Ordering Miller machines and parts: what we need

State the model and the Miller part number of the exact package, because the same machine is sold in several configurations. Give the supply at your site (voltage, phase and 50 Hz), the process and maximum current, and the accessories needed: wire feeder, remote control, cable length, torch or gun, cooler, running gear. For spare parts, the serial number from the rating label is essential, since Miller parts lists are issued by serial number range. For helmets, name the series and lens type.

Facts checked against published histories of Miller Electric and ITW, October 2026.

FAQ

Questions about the Miller Digital Elite Auto-Darkening Welding Helmet

Answers from our engineering team on installation, compatibility and integration.

01What processes can the Miller Digital Elite helmet be used for?
It has four modes: Weld (shades 8 to 13) for stick, MIG, flux-cored and TIG, Cut (shades 5 to 8) for plasma and oxy-fuel cutting, Grind (shade 2.5) for disc work, and X-Mode (shades 8 to 13) for welding where sensors may be blocked or sunlight interferes. The TIG rating is 5 amps and below.
02What is X-Mode on the Miller Digital Elite?
X-Mode senses the weld electromagnetically instead of relying only on light. Miller states it reduces sunlight interference and continuously detects the arc even if the optical sensors are blocked, which helps on outdoor and out-of-position work.
03How large is the viewing area and how heavy is the helmet?
The viewing area is 9.2 sq in (59.48 sq cm). The black version weighs 21.4 oz (607 g) and the graphic versions 20.5 oz (581 g).
04Which consumables should be ordered with the helmet?
The spec sheet lists the CR2450 battery (217043), front cover lenses 216326 or 216326B and inside cover lenses 216327 or 216327B in 5-packs or 50-packs. A replacement ClearLight 4x lens is 296762.
05Does Seven Star LLC supply the Miller Digital Elite in Oman?
Yes. Seven Star LLC supplies the Miller Digital Elite helmet, spare lenses and accessories from Muscat to customers across Oman and the GCC, with the manufacturer spec sheet and technical support for selecting the right accessories.
