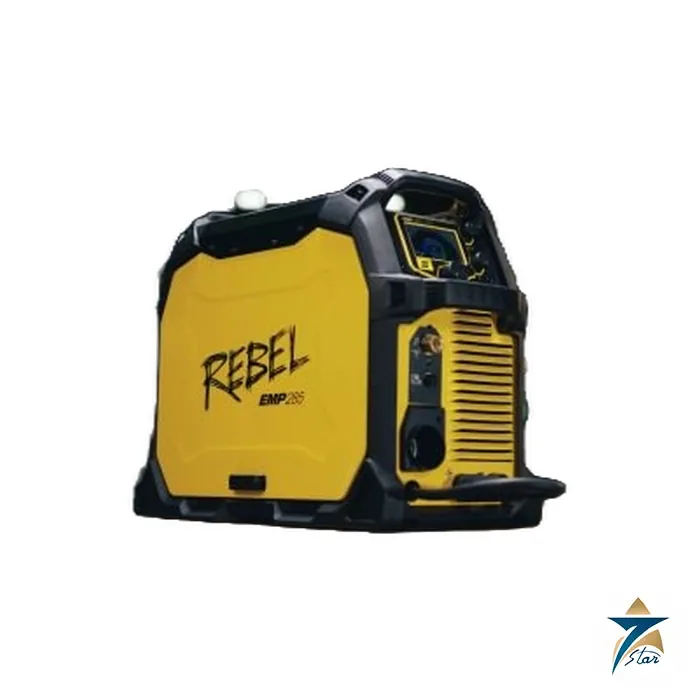

ESAB Rebel EMP 285ic

Overview

ESAB Rebel EMP 285ic is a compact, multi-process inverter welder capable of MIG, flux-cored, stick, and DC TIG welding from a single power source, delivering up to 300A output on single-phase power or 350A on three-phase power. Built around ESAB’s sMIG (smart-MIG) technology, the ESAB Rebel EMP 285ic automatically adjusts arc parameters as the operator changes wire feed speed, giving both experienced welders and occasional field technicians a guided, foolproof setup process without sacrificing the industrial-grade performance a fabrication shop demands.

With fast quotation turnaround and technical support, Seven Star LLC proudly supplies the ESAB Rebel EMP 285ic to fabrication shops, maintenance teams, and EPC contractors across Oman and the wider GCC. Buyers in the Sultanate of Oman and neighboring Gulf markets can source ESAB equipment and consumables on request, with technical support with selection.

Operating Principle

The Rebel EMP 285ic is built on a digital inverter power source that converts incoming AC power to a high-frequency waveform, allowing precise, software-controlled shaping of the welding arc for each supported process. Its sMIG smart-MIG technology continuously reads the wire feed speed the operator selects and automatically calculates the corresponding voltage and inductance settings, removing the trial-and-error arc-tuning that MIG welding traditionally requires from less experienced operators.

For TIG and stick welding, the ESAB Rebel EMP 285ic’s DC output and four-roll wire drive system (for MIG/flux-cored work up to 1/16-inch wire diameter) give consistent arc starts and stable puddle control across a range of material thicknesses. In practical terms, this multi-process digital control means a single machine can move between root-pass TIG work, structural MIG production welding, and field stick-electrode repair without a change of power source, reducing both capital equipment cost and job-site setup time for fabrication and maintenance crews alike.

Engineering Design of the ESAB Rebel EMP 285ic

Physically, the ESAB Rebel EMP 285ic is housed in a rugged, IP23S-rated enclosure weighing approximately 32 kg (70 lbs), with a rubberized carry handle and protective corner guards designed to survive repeated job-site transport and rough handling. A built-in digital display and simplified process-selection interface let an operator set up a new weld job in a few button presses, without needing to reference an external parameter chart.

The Rebel EMP 285ic is offered in both single-phase (120-240VAC, 50/60Hz) and three-phase (460-575VAC, 50/60Hz) input versions, giving specifying engineers the flexibility to match the machine to available site power, whether that is a single-phase field generator or a three-phase fabrication shop supply. Its multi-voltage compatibility within each model and portable, cart-compatible design make it equally suited to a fixed shop welding station or a mobile maintenance crew moving between job sites.

Key Features

The Rebel EMP 285ic combines multi-process capability with a rugged, field-ready design:

• MIG, flux-cored, stick, and DC TIG welding from a single inverter power source.
• Output up to 300A (single-phase) or 350A (three-phase), with 285A rated at 40-50% duty cycle.
• sMIG (smart-MIG) technology for automatic, adaptive arc parameter control.
• Four-roll wire drive system handling wire diameters up to 1/16 inch (1.6 mm).
• IP23S-rated enclosure built for outdoor and demanding industrial job-site use.
• Available in single-phase (120-240VAC) and three-phase (460-575VAC) input versions.
• Compact, portable design with detachable power source and optional welding cart.
• Simplified digital interface for fast, guided process and parameter setup.

Industrial Applications

The Rebel EMP 285ic is specified across heavy fabrication shops, structural steel and pipeline construction, oil and gas maintenance welding, and general manufacturing repair work where a portable, multi-process machine reduces the number of separate welders a crew needs to carry between job sites. Its rugged IP23S enclosure and dual voltage-class availability also make it well suited to outdoor plant maintenance and shutdown/turnaround welding work across power generation and petrochemical facilities.

With engineering support in Muscat, Seven Star LLC distributes and supports the ESAB Rebel EMP 285ic across Oman’s growing fabrication and industrial maintenance sector, including facilities serving the Sohar and Salalah industrial and free zones and the wider Muscat metropolitan area. Regional fabricators and maintenance contractors benefit from a welding platform proven in demanding Gulf job-site conditions, backed by genuine ESAB consumables and a local genuine support channel.

Technical Specifications

Key parameters for the ESAB Rebel EMP 285ic multi-process welder:

Whether deployed as a shop-floor MIG station or loaded onto a service truck for field repair work, the ESAB Rebel EMP 285ic gives regional fabrication and maintenance teams a single, dependable platform that shortens equipment lists without compromising weld quality across MIG, TIG, stick, and flux-cored applications.

Request a Quote for ESAB Rebel EMP 285ic

Fabrication shops and maintenance contractors in Oman and the GCC can request a formal quotation for the ESAB Rebel EMP 285ic directly from Seven Star LLC, including current availability and lead time, full technical datasheets, and process-selection support for MIG, TIG, stick, or flux-cored applications. Backed by manufacturer datasheet documentation, Seven Star LLC’s welding equipment division is available to advise on machine sizing, power configuration, and accessory selection — contact our technical sales team today to begin your Rebel EMP 285ic project.
