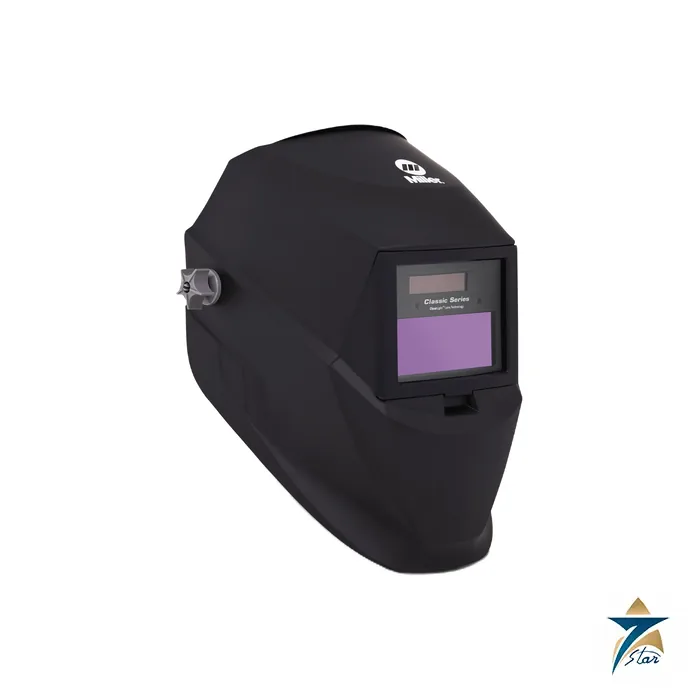

Miller Classic Series Auto-Darkening Welding Helmet

Description

Overview

The Miller Classic Series is the value range of Miller Electric auto-darkening welding helmets, built around simple, durable controls and the ClearLight lens. The series has three versions in one spec sheet: the Classic VS with variable weld and cut shades, the Classic VSi with an integrated grinding shield and X-Mode, and the FS#10 Flip-Up with a fixed shade 10 auto-darkening lens and a flip-up front. This page centres on the Classic VS shown in the photograph (black, stock no. 287803), while describing all three so buyers can choose the right member of the Miller Classic Series for each trade.

Seven Star LLC supplies the Miller Classic Series to contractors, maintenance departments and fabrication workshops across the Sultanate of Oman, from Muscat to Sohar, Duqm and Salalah, and to customers in the wider GCC. Many companies use these helmets as the standard issue for general welders and helpers, keeping the higher digital models for specialist TIG and pipe welders, and we can quote both levels side by side.

Lens Technology and Operation

All three versions use ClearLight lens technology, which Miller describes as providing advanced high-definition optics for precise arc recognition. In the light state the lens is shade 3.0. The helmet uses auto-on/off power control: the lens electronics wake up at the strike of an arc, so there is no switch to forget and no flat battery from a helmet left on overnight. Two independent arc sensors are fitted on the VS and FS#10 Flip-Up, and three on the VSi.

Switching speeds differ by version. The spec sheet lists 1/23,000 second for the VS, 1/20,000 second for the VSi and 1/3,600 second for the FS#10 Flip-Up. In general terms, every one of those figures is far faster than a human blink, and the fixed-shade Flip-Up is intended for straightforward stick and MIG work rather than low-current TIG. On the VSi, X-Mode senses the weld electromagnetically, which reduces sunlight interference and continues to detect the arc even when sensors are blocked.

Engineering Design of the Miller Classic Series

The Miller Classic Series VS has a 6 sq in (38.71 sq cm) viewing area, weighs 16 oz (454 g) and offers weld shades 8 to 13, cut shades 5 to 8 and a grind setting at shade 3. Its TIG rating is 5 amps and below. The VSi has a 5.9 sq in (37.94 sq cm) auto-darkening window behind an integrated grinding shield, weighs 23 oz (652 g) and offers weld shades 8 to 13, X-Mode 8 to 13 and grinding through the clear shield. The FS#10 Flip-Up has a 5.07 sq in (32.71 sq cm) window, shade 10 fixed weld, a grind shield, a 20 amp TIG rating and a weight of only 14 oz (396 g).

The integrated grinding shields on the VSi and FS#10 Flip-Up give impact protection and a clear view for grinding, so the welder lifts only the outer lens, not the whole helmet. The VS and VSi run on a CR2450 battery (217043); replacement ClearLight lenses are 287806 for the VS and 200541 for the VSi, while the Flip-Up uses a 2×4 lens (287830 shade 10 standard, with shade 8, 9 and 11 alternatives). Headgear is stock no. 770246.

Key Features

Highlights of the Miller Classic Series from the manufacturer spec sheet include:

  • ClearLight high-definition lens technology across all three versions.
  • Auto-on/off power control that activates the lens at arc strike.
  • Variable shade VS model: weld 8 to 13, cut 5 to 8, grind 3, at 16 oz (454 g).
  • VSi model with integrated grinding shield, three sensors and X-Mode for blocked-sensor or sunlit conditions.
  • FS#10 Flip-Up model with fixed shade 10, grind shield and very low 14 oz (396 g) weight.
  • Light state shade 3.0 for clear set-up visibility.
  • Certifications printed on the spec sheet: ANSI Z87.1+, CSA and CE.
  • Three-year warranty on the auto-darkening lens and an optional lighting kit 282013.

Industrial Applications

The Miller Classic Series is well matched to general fabrication, steel erection, repair and maintenance, agricultural and fleet workshops, and contractors that need dependable protection at a sensible cost per head. The VSi is useful on grinding-heavy work such as structural repairs and wear-plate hardfacing, while the FS#10 Flip-Up suits helpers and tack welders on stick and MIG. For crews using power sources like the ESAB Rebel EMP 285ic for MIG and stick, the VS covers the full shade range. Larger plants running the Lincoln Electric Power Wave S500 can issue Classic helmets to general staff alongside digital helmets for specialists.

Seven Star LLC supplies every version of the Miller Classic Series, together with cover lenses and grind shields, to oil and gas, utilities, construction and manufacturing customers throughout Oman and the GCC. Explore further protection items in our Welding Helmets & Face Protection, and welding consumables such as the LongTeng EL8 Carbon Steel Submerged Arc Welding Wire for submerged arc fabrication.

Choosing Between VS, VSi and Flip-Up

As a general rule of thumb within the Miller Classic Series, choose the VS when one helmet must cover stick, MIG, TIG and plasma cutting with variable shades at low weight. Choose the VSi when grinding is a large part of the job or when sensors are often blocked. Choose the FS#10 Flip-Up for simple, single-process welding at shade 10 where minimum weight matters.

Technical Specifications

The Miller Classic Series data below comes from the manufacturer spec sheet issued August 2026 (Index No. AY/45.5).

Parameter Specification
Model Miller Classic Series auto-darkening helmet: VS (shown, 287803), VSi (287794), FS#10 Flip-Up (287798)
Light state Shade 3.0
Viewing area VS 6 sq in (38.71 sq cm); VSi 5.9 sq in (37.94 sq cm); Flip-Up 5.07 sq in (32.71 sq cm)
Modes and shades VS: Weld 8–13, Cut 5–8, Grind 3; VSi: Weld 8–13, Grind Shield, X-Mode 8–13; Flip-Up: Weld 10, Grind Shield
Sensors VS 2; VSi 3; Flip-Up 2
Switching speed VS 1/23,000 s; VSi 1/20,000 s; Flip-Up 1/3,600 s
TIG rating VS and VSi 5 amps and below; Flip-Up 20 amps
Weight VS 16 oz (454 g); VSi 23 oz (652 g); Flip-Up 14 oz (396 g)
Certifications ANSI Z87.1+, CSA, CE
Replacement lenses VS 287806; VSi 200541; Flip-Up 2×4 lens 287830 (shade 10)
Battery / headgear CR2450 217043 (VS, VSi) / headgear 770246
Lens warranty Three years

How to Order

Seven Star LLC can quote any Miller Classic Series version with cover lenses, grind shields (261830 for Flip-Up, 245818 for VSi) and tear-aways. Download the spec sheet on this page, send your quantities and versions, and our Muscat team will prepare a formal offer for delivery in Oman and the GCC.

Datasheets & Documents
  • PDF Datasheet Miller Classic Series spec sheet (manufacturer, Index AY/45.5, covers VS, VSi and FS#10 Flip-Up) Download
Reviews (0)

Reviews

There are no reviews yet.

How would you rate this product?

It takes about 10 seconds — just tap a star. Your email is never published.

About brand

Miller Electric is the American maker of arc welding and cutting equipment: TIG, stick and multiprocess power sources, engine-driven welders, plasma cutters, induction heating systems, guns and welding helmets. Niels Miller built his first arc welder in his home in Appleton, Wisconsin, in 1929. The company, still headquartered in Appleton, has been part of Illinois Tool Works (ITW) since 1993 and sits in ITW's welding segment.

Seven Star LLC sources and supplies Miller welding power sources, engine-driven welders, induction heating systems, MIG guns and auto-darkening helmets for fabricators and contractors in Oman, and checks each model and its input power configuration against the manufacturer's documentation before quoting.

Miller company profile

Founded 1929, Appleton, Wisconsin, USA, by Niels Miller
Incorporated 1935, as Miller Electric Mfg. Co.
Ownership Illinois Tool Works (NYSE: ITW) since 1993; part of ITW's welding segment
Headquarters Appleton, Wisconsin, USA
Product families Dynasty and Maxstar TIG inverters, XMT and PipeWorx multiprocess systems, Millermatic MIG welders, Trailblazer and Big Blue engine drives, Spectrum plasma cutters, ProHeat induction heating, MIG guns and Digital Infinity helmets

Milestones

  • 1929: Niels Miller starts building arc welders at his home in Appleton.
  • 1935: The business is incorporated as Miller Electric Mfg. Co.
  • 1971: The Millermatic combines power source and wire feeder in one unit, bringing MIG welding to a wider market.
  • 1993: Illinois Tool Works acquires Miller Electric.

Miller product families listed here

Miller welding machines on this page cover most processes used in plant construction and maintenance:

  • TIG and stick: Dynasty 400 AC/DC and Maxstar 210 STR
  • Multiprocess: XMT 400 ArcReach, XMT 650 and the PipeWorx 400 pipe welding system
  • Engine-driven welders: Trailblazer 330 and Big Blue 800 Duo Pro
  • Induction heating: ProHeat 35
  • Guns and helmets: XR-Aluma-Pro push-pull gun; T94, Classic, Digital Performance, Digital Elite and Digital Infinity helmets

Where Miller equipment is used

An XMT or PipeWorx set suits pipe spools and structural work where one power source must run stick, TIG, MIG and flux-cored procedures. Dynasty machines handle aluminum and stainless TIG. Trailblazer and Big Blue engine drives go where no mains supply exists, such as pipelines, tank erection and remote maintenance in the GCC. The ProHeat 35 is used for preheat and post-weld heat treatment of pipe joints.

Miller products we list

Family Examples
Engine-Driven Welders Big Blue 400 PipePro Diesel Engine-Driven, Big Blue 400 Pro Diesel Engine-Driven Welder, Big Blue 450 Duo CST Dual-Operator Diesel, Big Blue 500 Pro Diesel Engine-Driven Welder, Big Blue 600 Pro Diesel Engine-Driven Welder, Big Blue 800 Duo Pro Dual-Operator Diesel, Bobcat 265 Gas or LP Engine-Driven Welder, Trailblazer 330 Gas Engine-Driven Welder
Welding Helmets & Face Protection Classic Series Auto-Darkening Welding Helmet, Digital Elite Auto-Darkening Welding Helmet, Digital Infinity Auto-Darkening Welding Helmet, Digital Performance Auto-Darkening Welding, T94 Auto-Darkening Welding Helmet
Multi-Process Welding Machines Dynasty 300 Multiprocess AC/DC TIG and Stick, PipeWorx 400 Multiprocess Pipe Welding System, XMT 400 ArcReach Multiprocess Welding Power, XMT 650 CC/CV Multiprocess Welding Power
TIG Welding Machines Dynasty 400 AC/DC TIG and Stick Welder, Maxstar 210 STR Stick/TIG Inverter Welder, Maxstar 400 DC TIG/Stick Welding Power Source, Syncrowave 300 AC/DC TIG and Stick Welding
MIG/MAG Welding Machines Deltaweld 500 Industrial MIG Welding Power, Millermatic 355 Pulsed MIG Welder Package, Multimatic 255 Multiprocess Welder with
Plasma Cutting Systems Spectrum 375 X-TREME Portable Air Plasma, Spectrum 625 X-TREME Air Plasma Cutter and, Spectrum 875 Air Plasma Cutter
Induction Heating & Preheating ProHeat 35 Induction Heating System
TIG Torches & MIG Guns XR-Aluma-Pro Push-Pull MIG Gun for Aluminium

Ordering Miller machines and parts: what we need

State the model and the Miller part number of the exact package, because the same machine is sold in several configurations. Give the supply at your site (voltage, phase and 50 Hz), the process and maximum current, and the accessories needed: wire feeder, remote control, cable length, torch or gun, cooler, running gear. For spare parts, the serial number from the rating label is essential, since Miller parts lists are issued by serial number range. For helmets, name the series and lens type.

Facts checked against published histories of Miller Electric and ITW, October 2026.

FAQ

Questions about the Miller Classic Series Auto-Darkening Welding Helmet

Answers from our engineering team on installation, compatibility and integration.

01What versions are in the Miller Classic Series?
There are three: the VS with variable weld shades 8 to 13 and cut shades 5 to 8, the VSi with an integrated grinding shield and X-Mode, and the FS#10 Flip-Up with a fixed shade 10 lens and grind shield.
02Does the Miller Classic Series need to be switched on?
No. Auto-on/off power control triggers the lens at the strike of an arc, according to the manufacturer spec sheet.
03Which certifications does the Miller Classic Series carry?
The spec sheet lists ANSI Z87.1+, CSA and CE.
04Can the Classic VS be used for TIG welding?
Yes. The VS and VSi have a TIG rating of 5 amps and below. The FS#10 Flip-Up is rated at 20 amps.
05Does Seven Star LLC supply the Miller Classic Series in Oman?
Yes. Seven Star LLC supplies all Classic versions, replacement lenses and grind shields from Muscat to customers in Oman and the GCC, with the manufacturer spec sheet.
