Miller XMT 650 CC/CV Multiprocess Welding Power Source

Description

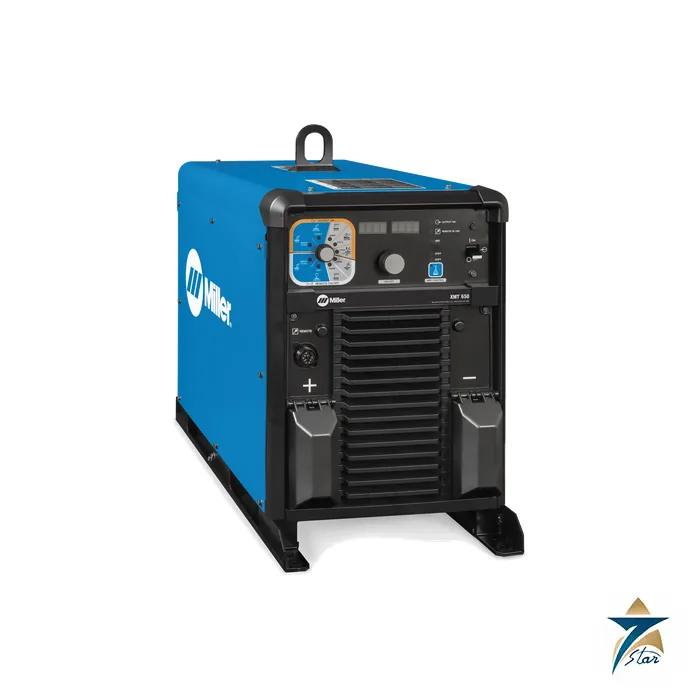

Overview of the Miller XMT 650 CC/CV

The Miller XMT 650 CC/CV is a heavy industrial inverter power source designed for high-amperage production welding and gouging. The Miller XMT 650 Series spec sheet (index DC/18.98, issued February 2026) rates it at 650 A at 44 VDC at 100% duty cycle, with output from 10 to 815 A in constant current, 10 to 44 V in constant voltage and 10 to 65 V in a dedicated submerged arc mode. The CC/CV version is the non-ArcReach model of the series and is described by Miller as ideal for heavy manufacturing and fabrication with traditional feeders and accessories.

Seven Star LLC supplies the Miller XMT 650 to pressure vessel shops, structural fabricators, shipyards and heavy equipment workshops in the Sultanate of Oman and the wider GCC. Our Muscat team helps buyers pair the power source with the right wire feeder and accessories and provides quotations on request and engineering support.

Power Class and Process Coverage

As general background, the jump from a 400 A to a 650 A class machine matters most for processes that run large electrodes at high current for long periods: submerged arc welding of thick plate, large-diameter flux-cored wires and heavy carbon arc gouging. The Miller XMT 650 is rated for 3/8-inch gouging carbons, and Miller states its field-proven gouge process removes more material per pass without sacrificing control. The power reserve also allows large spools and large-diameter filler wires, which the manufacturer links to shorter project timelines.

The front panel of the Miller XMT 650 CC/CV groups processes with an LED indicator visible from a distance. There is an optimised stick position for gouging, three wire modes for gas-shielded solid and cored wire, self-shielded flux-cored wire and submerged arc, a stick mode for all electrode types and Lift-Arc DC TIG. Arc control in stick and solid-wire processes is adjustable from 0 to 25 Soft or 0 to 25 Stiff, with a Star setting that Miller says is optimised for most applications.

Connections, Remote Control and Construction

A 14-pin receptacle lets the Miller XMT 650 work with spool guns, wire feeders and remote controls, and Auto Remote Sense switches to remote control automatically when a device is connected. A remote-in-use indicator on the front panel confirms when a feeder or 14-pin device is controlling the machine. On non-polarity-reversing models a 120 V auxiliary outlet supplies 15 A for grinders, chop saws, drills and lights at the workstation.

The series carries an IP23 rating and uses Wind Tunnel Technology and Fan-On-Demand to protect internal electronics, both of which suit dusty fabrication halls. The chassis measures 716 × 424 × 803 mm including the lift eye and weighs 72.1 kg. Where many operators work in one bay, Miller lists an empty XMT 650 Rack (stock no. 301754) able to house four units, with fuses ordered separately, as well as factory-assembled four-pack racks for the ArcReach versions.

Key Features of the Miller XMT 650

Features of the Miller XMT 650 CC/CV listed by the manufacturer include:

  • Rated output of 650 A at 44 VDC at 100% duty cycle, 750 A at 60% and 815 A at 25%.
  • Output ranges of 10 to 815 A in CC mode, 10 to 44 V in CV mode and 10 to 65 V in submerged arc mode.
  • Processes covering MIG, gas-shielded and self-shielded flux-cored, stick, Lift-Arc DC TIG, submerged arc and air carbon arc gouging.
  • Optimised gouging position rated for 3/8-inch carbons.
  • Arc control adjustable 0 to 25 Soft or Stiff in stick and solid-wire processes.
  • 14-pin receptacle with Auto Remote Sense for feeders, spool guns and remotes.
  • 120 V auxiliary outlet providing 15 A for power tools.
  • IP23 rating with Wind Tunnel Technology and Fan-On-Demand cooling.

Heavy Fabrication Applications in Oman

Miller lists fabrication and construction, structural steel fabrication and erection, heavy manufacturing, maintenance and repair, pressure tank and vessel fabrication, shipbuilding, refineries and foundries, railcar manufacturing and earth-moving equipment manufacturing as applications for the series. In Oman the Miller XMT 650 fits pressure vessel and heat exchanger shops in the Rusayl and Sohar industrial estates, steel structure fabricators supplying the Duqm special economic zone, ship repair yards and refinery maintenance workshops, where submerged arc and heavy gouging are routine.

For tank shell and beam fabricators running submerged arc tractors, the 10 to 65 V SAW mode of the Miller XMT 650 pairs with consumables such as LongTeng EL8 submerged arc wire. Seven Star LLC supports buyers across the GCC with supply on request and engineering support from Muscat. For lighter or advanced-waveform work, compare the Lincoln Electric Power Wave S500 and the ESAB Rebel EMP 285ic, or see the full list of multi-process welding machines.

Ready-to-Weld Packages

Buyers who prefer a complete MIG cell can order the power source as a stationary package. Miller’s ordering table describes it as including the S-74 MPa Plus wire feeder with .035/.045-inch reversible V-groove drive rolls, a Bernard BTB 400 A gun with AccuLock consumables and an industrial MIG 4/0 cable kit. The MIGRunner package adds a running gear and cylinder rack (stock no. 300408) so the whole set can be moved around the shop floor with its gas bottle. Note that the S-74 MPa Plus feeder is marked as not compatible with the ArcReach models, which is one more reason to confirm the exact version before ordering. For submerged arc, gouging or stick-only stations the bare power source is normally the better choice, since the feeder or torch is selected separately to suit the process and the welding procedure specification.

Technical Specifications of the Miller XMT 650

Values for the Miller XMT 650 CC/CV below come from the XMT 650 Series spec sheet and are subject to change without notice by Miller.

Parameter Specification
Model XMT 650 CC/CV, stock no. 907843 (380/460 V, 50/60 Hz)
Packages 951000067 stationary package with S-74 MPa Plus feeder; 951000068 MIGRunner package
Input power Three-phase, 380/460 V, 50/60 Hz
CC range 10–815 A
CV range 10–44 V
SAW mode range 10–65 V
Rated output 650 A at 44 VDC, 100%; 750 A at 44 VDC, 60%; 815 A at 44 VDC, 25% duty cycle
Input amps at 650 A rating 51.5 A at 380 V; 42.6 A at 460 V (33.9 kVA, 31.9 kW)
Maximum open-circuit voltage 82 V
Carbon arc gouging Rated for 3/8 in carbons
Auxiliary power 120 V, 15 A
Dimensions (H × W × D) 716 mm (including lift eye) × 424 mm × 803 mm
Net weight 72.1 kg (159 lb)

Order the Miller XMT 650 Through Seven Star LLC

Request a quotation for the Miller XMT 650 by sending Seven Star LLC the stock number, the feeder package and any running gear or cable kits you need. The attached Miller spec sheet covers the whole XMT 650 Series, including the ArcReach and polarity reversing models, so please state the exact version. Our Muscat welding team provides quotations on request and engineering support for buyers across Oman and the GCC.

Datasheets & Documents
  • PDF Brochure Miller XMT 650 Series Spec Sheet (DC/18.98, covers the family) Download
Reviews (0)

Reviews

There are no reviews yet.

How would you rate this product?

It takes about 10 seconds — just tap a star. Your email is never published.

About brand

Miller Electric is the American maker of arc welding and cutting equipment: TIG, stick and multiprocess power sources, engine-driven welders, plasma cutters, induction heating systems, guns and welding helmets. Niels Miller built his first arc welder in his home in Appleton, Wisconsin, in 1929. The company, still headquartered in Appleton, has been part of Illinois Tool Works (ITW) since 1993 and sits in ITW's welding segment.

Seven Star LLC sources and supplies Miller welding power sources, engine-driven welders, induction heating systems, MIG guns and auto-darkening helmets for fabricators and contractors in Oman, and checks each model and its input power configuration against the manufacturer's documentation before quoting.

Miller company profile

Founded 1929, Appleton, Wisconsin, USA, by Niels Miller
Incorporated 1935, as Miller Electric Mfg. Co.
Ownership Illinois Tool Works (NYSE: ITW) since 1993; part of ITW's welding segment
Headquarters Appleton, Wisconsin, USA
Product families Dynasty and Maxstar TIG inverters, XMT and PipeWorx multiprocess systems, Millermatic MIG welders, Trailblazer and Big Blue engine drives, Spectrum plasma cutters, ProHeat induction heating, MIG guns and Digital Infinity helmets

Milestones

  • 1929: Niels Miller starts building arc welders at his home in Appleton.
  • 1935: The business is incorporated as Miller Electric Mfg. Co.
  • 1971: The Millermatic combines power source and wire feeder in one unit, bringing MIG welding to a wider market.
  • 1993: Illinois Tool Works acquires Miller Electric.

Miller product families listed here

Miller welding machines on this page cover most processes used in plant construction and maintenance:

  • TIG and stick: Dynasty 400 AC/DC and Maxstar 210 STR
  • Multiprocess: XMT 400 ArcReach, XMT 650 and the PipeWorx 400 pipe welding system
  • Engine-driven welders: Trailblazer 330 and Big Blue 800 Duo Pro
  • Induction heating: ProHeat 35
  • Guns and helmets: XR-Aluma-Pro push-pull gun; T94, Classic, Digital Performance, Digital Elite and Digital Infinity helmets

Where Miller equipment is used

An XMT or PipeWorx set suits pipe spools and structural work where one power source must run stick, TIG, MIG and flux-cored procedures. Dynasty machines handle aluminum and stainless TIG. Trailblazer and Big Blue engine drives go where no mains supply exists, such as pipelines, tank erection and remote maintenance in the GCC. The ProHeat 35 is used for preheat and post-weld heat treatment of pipe joints.

Miller products we list

Family Examples
Engine-Driven Welders Big Blue 400 PipePro Diesel Engine-Driven, Big Blue 400 Pro Diesel Engine-Driven Welder, Big Blue 450 Duo CST Dual-Operator Diesel, Big Blue 500 Pro Diesel Engine-Driven Welder, Big Blue 600 Pro Diesel Engine-Driven Welder, Big Blue 800 Duo Pro Dual-Operator Diesel, Bobcat 265 Gas or LP Engine-Driven Welder, Trailblazer 330 Gas Engine-Driven Welder
Welding Helmets & Face Protection Classic Series Auto-Darkening Welding Helmet, Digital Elite Auto-Darkening Welding Helmet, Digital Infinity Auto-Darkening Welding Helmet, Digital Performance Auto-Darkening Welding, T94 Auto-Darkening Welding Helmet
Multi-Process Welding Machines Dynasty 300 Multiprocess AC/DC TIG and Stick, PipeWorx 400 Multiprocess Pipe Welding System, XMT 400 ArcReach Multiprocess Welding Power, XMT 650 CC/CV Multiprocess Welding Power
TIG Welding Machines Dynasty 400 AC/DC TIG and Stick Welder, Maxstar 210 STR Stick/TIG Inverter Welder, Maxstar 400 DC TIG/Stick Welding Power Source, Syncrowave 300 AC/DC TIG and Stick Welding
MIG/MAG Welding Machines Deltaweld 500 Industrial MIG Welding Power, Millermatic 355 Pulsed MIG Welder Package, Multimatic 255 Multiprocess Welder with
Plasma Cutting Systems Spectrum 375 X-TREME Portable Air Plasma, Spectrum 625 X-TREME Air Plasma Cutter and, Spectrum 875 Air Plasma Cutter
Induction Heating & Preheating ProHeat 35 Induction Heating System
TIG Torches & MIG Guns XR-Aluma-Pro Push-Pull MIG Gun for Aluminium

Ordering Miller machines and parts: what we need

State the model and the Miller part number of the exact package, because the same machine is sold in several configurations. Give the supply at your site (voltage, phase and 50 Hz), the process and maximum current, and the accessories needed: wire feeder, remote control, cable length, torch or gun, cooler, running gear. For spare parts, the serial number from the rating label is essential, since Miller parts lists are issued by serial number range. For helmets, name the series and lens type.

Facts checked against published histories of Miller Electric and ITW, October 2026.

FAQ

Questions about the Miller XMT 650 CC/CV Multiprocess Welding Power

Answers from our engineering team on installation, compatibility and integration.

01What is the duty cycle of the Miller XMT 650?
The spec sheet rates the XMT 650 at 650 A at 44 VDC at 100% duty cycle, 750 A at 44 VDC at 60% and 815 A at 44 VDC at 25%. A continuous 650 A rating makes it suitable for long submerged arc seams and heavy gouging.
02Which processes does the XMT 650 CC/CV support?
The non-ArcReach CC/CV model covers MIG, flux-cored (gas-shielded and self-shielded), stick for all electrode types, Lift-Arc DC TIG, submerged arc and air carbon arc gouging rated for 3/8-inch carbons. RMD, pulsed MIG and induction heating are only offered on the XMT 650 ArcReach models with the matching ArcReach accessories.
03What input power does it need?
Stock number 907843 is wired for 380/460 V, 50/60 Hz, three-phase. At the 650 A rating it draws 51.5 A at 380 V or 42.6 A at 460 V, with 33.9 kVA and 31.9 kW. A separate 575 V version exists in the ArcReach range.
04How is the XMT 650 CC/CV different from the XMT 650 ArcReach?
Both share the same output ratings and are covered by one spec sheet. The CC/CV model works with traditional 14-pin feeders, remotes and spool guns, while the ArcReach models communicate over the weld cable for cordless control, and the ArcReach PR model adds polarity reversing for structural steel erection.
05Can Seven Star LLC quote the Miller XMT 650 with a feeder package?
Yes. Seven Star LLC supplies Miller power sources and feeders to fabricators and contractors across Oman and the GCC, including the stationary and MIGRunner packages listed by Miller, with engineering support from Muscat.
