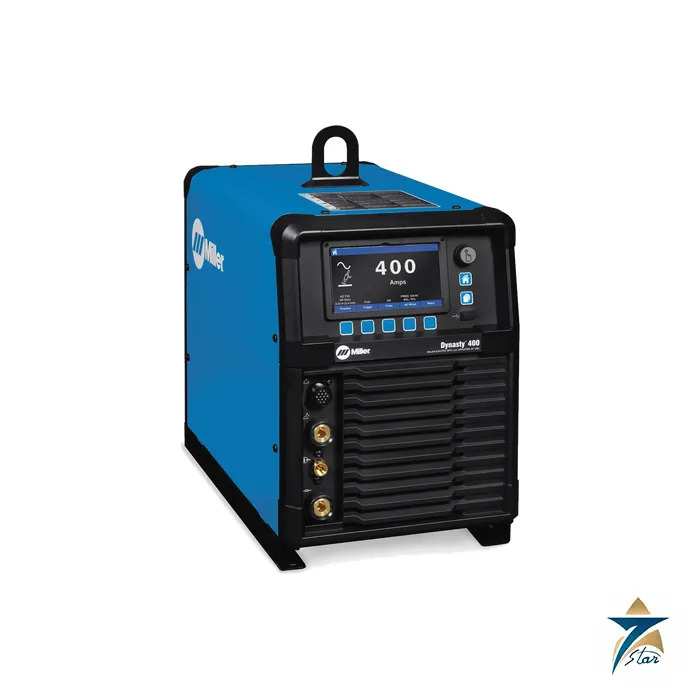

Miller Dynasty 400 AC/DC TIG and Stick Welder

Overview of the Miller Dynasty 400

The Miller Dynasty 400 is an industrial AC/DC TIG and stick inverter that Miller describes as reimagined for your pursuit of perfection. The spec sheet (index AD/5.5, issued August 2026), which covers both the Dynasty 400 and the larger Dynasty 800, lists AC/DC TIG, pulsed TIG, stick and air carbon arc gouging, an amperage range of 3 to 400 A and a rated output of 300 A at 32 V at 60% duty cycle. A 7-inch LCD interface with on-screen explanations and dynamic images guides the operator through machine setup and parameter selection.

Seven Star LLC supplies the Miller Dynasty 400 to stainless and aluminium fabricators, pipe and tube shops and maintenance workshops in the Sultanate of Oman and the GCC. Our Muscat team helps clients choose between the machine-only unit, the water-cooled TIGRunner package and the complete package with wireless foot control, and coordinates supply and engineering support.

AC and DC TIG Arc Control

As general welding background, DC TIG with the electrode negative is used for steels, stainless steel, nickel alloys and titanium, while AC TIG is used for aluminium and magnesium because the alternating cycle removes surface oxide. The Miller Dynasty 400 gives detailed control of both. In AC, balance control adjusts oxide removal, frequency control changes the width of the arc cone for better directional control, and independent amplitude control lets the EP and EN amperages be set separately to steer heat into the work or the tungsten.

Four AC waveforms are available. Advanced square gives a fast-freezing puddle, deep penetration and fast travel; soft square gives a soft arc with maximum puddle control; sine suits welders who like a traditional, quiet arc with good wetting; and triangular reduces heat input for thin aluminium. Pulsing adds puddle agitation and arc stability while reducing heat input and distortion, and QuietPulse uses sine or triangular pulse shapes to lower audible noise. In DC the arc is described as exceptionally smooth and precise for exotic materials.

Interface, Starting and Input Power

Blue Lightning high-frequency starting gives more consistent arc starts and greater reliability than traditional arc starters, according to Miller, and Lift-Arc provides AC or DC starts without high frequency where HF interference is a concern. Pro-Set removes guesswork when setting parameters, program memory allows settings to be named, saved and recalled, and locks and limits restrict parameter ranges to minimise deviation from the welding procedure specification. A front USB port updates software, backs up settings and transfers programs between units.

The Miller Dynasty 400 uses Auto-Line, which accepts any input from 208 to 600 V, three-phase or single-phase, with no manual linking, and Miller notes this is an ideal solution for dirty or unreliable power. A dedicated cooler power supply receptacle feeds the Coolmate PRO 4, and Cooler-On-Demand runs the cooling system only when needed. In stick mode, DIG control, adaptive Hot Start, AC frequency control and a Stick-Stuck safety function support E7018 and E6010 electrodes.

Parameter Ranges and Sequencer

The parameter table printed for the Miller Dynasty 400 shows how finely a procedure can be tuned. DC pulsing runs from 0.1 to 5,000 pulses per second and AC pulsing from 0.1 to 500 pulses per second, with peak time and background amps each adjustable from 5 to 95 percent. AC frequency ranges from 20 to 400 Hz. The sequencer sets initial and final amps, initial and final time up to 25 seconds, slopes up to 50 seconds and preflow up to 25 seconds, while triggering supports foot, finger and pushbutton remotes in 2T, 3T, 4T and related modes. Up to 99 programs can be stored with user-defined names, and tungsten sizes from 0.5 to 4.8 mm are selectable for optimised starts on the Miller Dynasty 400.

Key Features of the Miller Dynasty 400

The Miller document lists these capabilities for the Miller Dynasty 400.

• AC/DC TIG, pulsed TIG, AC/DC stick and air carbon arc gouging with carbons up to 1/4 in.
• Amperage range of 3 to 400 A on three-phase and single-phase input.
• Three-phase rating of 250 A at 30 V at 100% duty cycle and 300 A at 32 V at 60%.
• Auto-Line input on the Miller Dynasty 400 from 208 to 600 V, single- or three-phase, 50/60 Hz.
• Easy-to-understand interface with a 7-inch LCD display, Pro-Set and named program memory.
• Four AC waveforms with adjustable balance, frequency and independent EP/EN amperage.
• Blue Lightning HF arc starts and Lift-Arc starting without high frequency.
• Locks and limits to keep parameters within the welding procedure specification.

Precision Fabrication Uses in Oman

Miller lists precision fabrication, heavy fabrication, pipe and tube fabrication, aerospace, aluminium ship repair and anodised aluminium fabrication as applications. In Oman the Miller Dynasty 400 suits stainless steel process piping and instrument tubing for oil and gas facilities, food and beverage plants in the Rusayl and Sohar industrial estates, aluminium boat and ferry repair in Muscat and Duqm, and maintenance shops at desalination plants where duplex and super duplex lines are TIG welded. The locks and limits function helps quality managers keep each welder within a qualified procedure.

Seven Star LLC supports TIG users across the GCC with supply on request and engineering support from Muscat. For MIG-based production work compare the Lincoln Electric Power Wave S500 or the multi-process ESAB Rebel EMP 285ic, and for submerged arc seams see LongTeng EL8 wire. More machines are listed under TIG welding machines.

Technical Specifications of the Miller Dynasty 400

The table gives data for the Miller Dynasty 400 taken from the Dynasty 400 and 800 spec sheet; Miller states it is subject to change without notice.

Order the Miller Dynasty 400 from Seven Star LLC

Send Seven Star LLC an RFQ for the Miller Dynasty 400 with the stock number, the required input voltage version and the torch, cooler and foot control you prefer; the TIGRunner package is supplied without torch kit, accessories and coolant. The attached Miller spec sheet covers both the Dynasty 400 and the Dynasty 800. Our Muscat team provides quotations on request and engineering support throughout Oman and the GCC.
