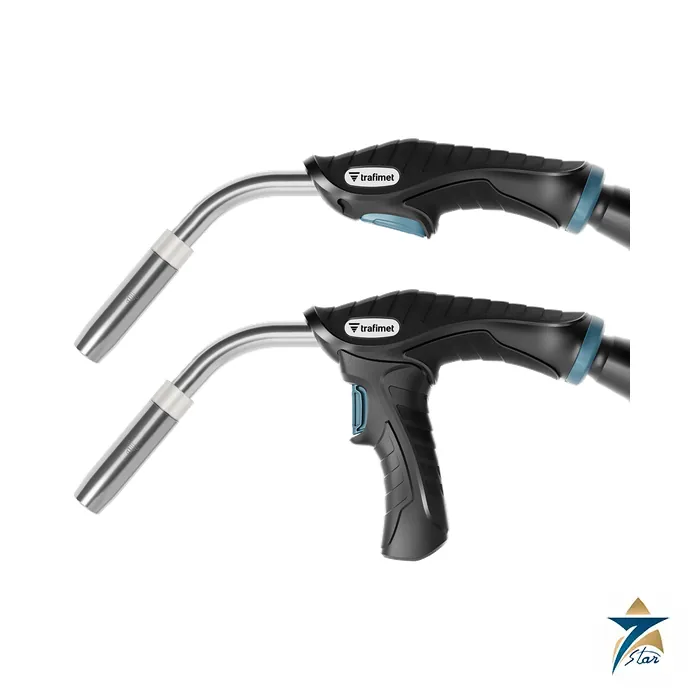

Trafimet ERGOMEGA 550 Water-Cooled MIG Torch

Name: Trafimet ERGOMEGA 550 Water-Cooled MIG Torch – Datasheet
Brand: Trafimet
SKU: ERGOMEGA 550

A 550 A water-cooled MIG torch rated for continuous duty

The Trafimet ERGOMEGA 550 is the water-cooled heavy-duty torch of the Ergomega range, rated at 550 A with CO2 and 500 A with mixed gas at 100% duty cycle according to EN 60974-7. It takes 0.8 to 1.6 mm wire and is aimed at high-current production welding: thick plate, spray and pulsed transfer, and long seams where a gas-cooled torch would overheat.

Trafimet offers two torch heads, a standard bent neck and a straight 0 degree version, and the torch is supplied with a EURO connector in 3, 4 or 5 m lengths.

Technical specifications

Parameter	Specification
Manufacturer / model	Trafimet / ERGOMEGA 550
Cooling	Water-cooled
Rating (EN 60974-7)	550 A CO2, 500 A mixed gas, 100% duty cycle
Wire diameter	0.8 to 1.6 mm
Voltage rating (V peak)	113 V
Coolant pressure	2 to 4 bar
Coolant flow	1.6 l/min
Weight per metre	1.53 kg (3.37 lb)
Torch packages (EURO)	MB4503B030 (3 m), MB4503B040 (4 m), MB4503B050 (5 m)
Torch heads	MG0309-SP (X 149 mm, Y 114 mm, 50 degrees); MG0310-SP 0 degree (X 199 mm)
Gas nozzles	Heavy duty, 82 mm: MC0298 (14 mm), MC0011 (16 mm), MC0012 (18 mm), MC0013 (20 mm)
Contact tips	M9x1 CuCrZr, 38 mm, MD0250 series for 0.8 to 1.6 mm wire
Tip holders	ME0375-SP (51 mm), ME0385-SP long (56 mm)
Liner	Uncoated steel, 1.2 to 1.6 mm: GM0530 (3 m), GM0531 (4 m), GM0532 (5 m)
Cable assembly	MN2014-030 / -040 / -050

Cooling requirements and installation

The 100% rating applies only with coolant flowing. The Trafimet sheet gives a coolant pressure of 2 to 4 bar and a flow of 1.6 l/min, so the welding machine or separate cooler must deliver at least this. Before welding, check that the return hose shows steady flow and that the cooler reservoir is filled with the coolant recommended by the cooler manufacturer. Running a water-cooled torch without coolant damages the neck and cable within a short time.

At the machine end the torch uses the EURO connector AR0052 with Euro metal nut BW0020, Euro nut FA0026 and back box kit MT0564. Head-end spares include the front insulator BW1390-SP, trigger kit MT0563, handle kit MT0561 and pistol grip MT0566.

Straight or bent head

The 50 degree head MG0309-SP is the normal choice for hand welding in flat and horizontal positions. The straight MG0310-SP helps on deep joints and where the torch is guided along a fixture. Both use the same nozzles and tips. The heavy-duty nozzles are 82 mm long; pick the bore by joint access and gas coverage, using 18 or 20 mm for spray transfer on open plate and 14 or 16 mm where the nozzle has to enter a groove or corner. For lighter currents without a cooler, a gas-cooled torch such as the Trafimet ERGOPLUS 36 MIG torch keeps the installation simpler.

Documents and quotation

The Trafimet ERGOMEGA 550 technical sheet is attached under Datasheets & Documents. Further torches are in our TIG Torches & MIG Guns category.

For a quotation, give the package code or cable length and head type, and list spare tips, nozzles and liners, with quantities.

Trafimet Group, based in Castegnero, Vicenza, Italy, manufactures torches and consumables for plasma cutting and for MIG/MAG and TIG welding. Since 2019 Trafimet has been part of the Kemppi Oy Group.

Seven Star LLC is an independent supplier in Muscat. We list the ERGOPLUS 36 gas-cooled MIG torch and source Trafimet torches, spare parts and consumables on request.

Trafimet product groups

The plasma range includes the PLUSCUT and EXPRESCUT torch families with their consumables. For MIG/MAG welding the manufacturer builds the ERGOPLUS, ERGOMEGA and ERGOFRESH torch lines in gas-cooled and water-cooled versions, and it also offers TIG torches, accessories and safety products. Each torch is listed in the Trafimet catalogue with its order codes, spare parts and wear parts.

Ordering Trafimet torches and consumables: what we need

Give the torch model and cable length, or the full Trafimet order code, and the connection on your machine, for example EURO. For consumables state the wire diameter, contact tip thread and nozzle type, or simply send the Trafimet codes from the old parts.
