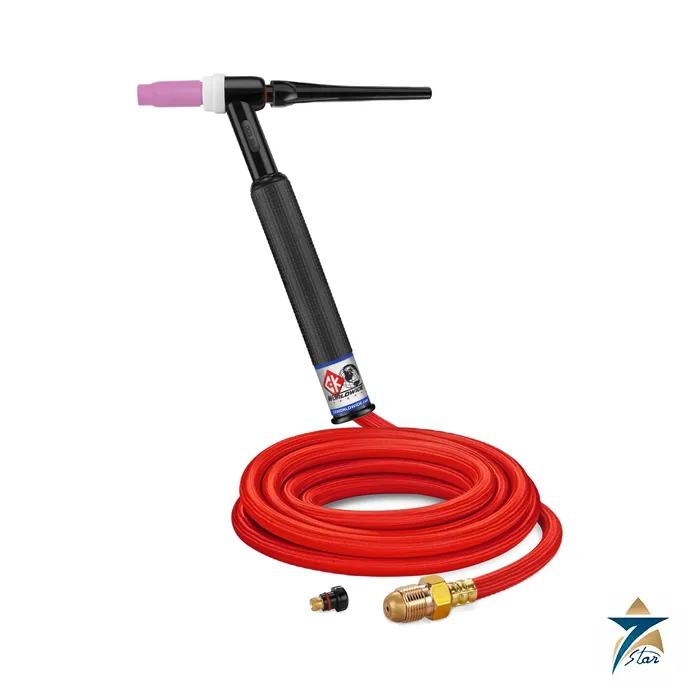

CK Worldwide CK26 Gas-Cooled TIG Torch
Description
The highest-rated CK standard gas-cooled TIG torch
The CK Worldwide CK26 is a 200 A gas-cooled TIG torch, rated ACHF or DCSP at 100% duty cycle. It is the largest body in CK’s standard gas-cooled range and is listed as the same as the CK210. It gives welders a higher current ceiling without the hoses, coolant and pump of a water-cooled setup.
The CK26 takes 3 Series consumables and the large HL handle. Bodies are offered rigid, flex and pencil, with valved CK26V versions for machines without a gas solenoid. For heavy field and pipeline work, CK also lists CK26 HEAVY-DUTY packages with a larger-gauge power cable and a separate Super-Flex argon line, rated 300 A at 60% duty cycle.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | CK Worldwide / CK26 |
| Cooling | Gas-cooled |
| Rating | 200 A ACHF or DCSP at 100% duty cycle |
| Heavy-duty packages (CK26HD) | 300 A at 60% duty cycle |
| Rigid body | 9-1/2 in (24.1 cm), 7-1/2 oz (212 g) |
| Flex body | 9-5/8 in (24.4 cm), 7-1/2 oz (212 g) |
| Pencil body | 9-1/4 in (23.5 cm), 3 oz (85 g) |
| Handle | HL |
| Consumables | 3 Series |
| Power cable machine fitting | 7/8 in-14 RH (CK26 cables) |
| Example packages | CK26-12-R RG, CK26-25-2 FX, CK26V-25-RSF RG |
CK26 HEAVY-DUTY package numbers
| Head | Connector | 12.5 ft (3.8 m) | 25 ft (7.6 m) |
|---|---|---|---|
| Rigid | Standard lug | CKCS26122RG | CKCS26252RG |
| Rigid + valve | Standard lug | CKCS26V122RG | CKCS26V222RG |
| Flex | Standard lug | CKCS26122FX | CKCS26252FX |
| Flex + valve | Standard lug | CKCS26V122FX | CKCS26V222FX |
| Rigid + valve | Tweco | CKCS26V122RGGI | CKCS26V252RGGI |
| Flex + valve | Tweco | CKCS26V122FXGI | CKCS26V222FXGI |
Cables and machine connection
Standard packages use 1-piece cables 46V28R (12.5 ft) or 46V30R (25 ft), Super-Flex versions with the suffix SF, or 2-piece weld leads 412CN and 425CN with argon hoses 312AH and 325AH. DINSE adapters for CK26 cables are SL8-25 and SL8-35, gas-through SL8-25M and SL8-35M, SL-8 for Tweco and SL8-CL for Cam-Lock. Note that the CK210 uses different 5/8 in-18 RH machine-side cables and adapters, so the torch model must be stated when ordering spares.
Gas-cooled at 200 A versus water-cooled
At the top of its range a gas-cooled head runs warm, so long arc-on times favour a water-cooled torch such as the CK18 or the CK20 water-cooled TIG torch. Where a cooler is not available, the CK26 or a heavy-duty CK26HD package is the practical choice.
Back caps also matter on a body this size: a long back cap holds full-length 7 in tungsten, while short caps help in confined spaces but require cut electrodes. Gas-saver and large-diameter gas lens parts from the 3 Series range improve coverage on stainless and titanium, where a standard collet body may leave the weld discoloured.
Store spare collets and collet bodies by series and size, because 2 Series and 3 Series parts look similar but do not interchange between torch families.
Documents and quotation
The CK Worldwide 3 Series torch manual is attached under Datasheets & Documents; see TIG Torches & MIG Guns for related torches.
Send the CK package number, or head style, valve, cable and connector, with quantities for a quotation.
Datasheets & Documents
- Manual CK Worldwide Torch Manual for CK17, CK18, CK26 (Form TM-3) Download
Reviews (0)
About brand
CK Worldwide is a family-owned manufacturer of TIG welding torches and accessories in Auburn, Washington, USA. Art Kleppen and Jim Conley founded the company in 1967 to make TIG welding more efficient, and it still designs and manufactures its products in Auburn. Its developments include silicone rubber insulated torch heads, Gas Saver kits, Max-Flo water cooling, wedge collets, Flex-Loc torches and Super-Flex hoses.
Seven Star LLC is an independent supplier in Muscat. We list the CK20 water-cooled TIG torch and source CK Worldwide torches, hoses and consumables on request.
CK Worldwide product groups
The TIG torch program covers the Standard, MasterTIG, Diamond and UltraTIG series, machine torches and Airco torches, in gas-cooled and water-cooled versions. Accessories include Gas Saver kits, wedge collets, cables and hoses, cable connectors, trailing shields, purge cups and torch parts. The range also includes remote amperage controls, cold wire feed equipment, a purge chamber, tungsten electrodes with a grinder, and TIG machines with a water cooler.
Ordering CK Worldwide torches and parts: what we need
Give the CK part number, or the torch series, head style (rigid, flex or pencil), valve option, cable length and hose type. For consumables state the thread series and tungsten diameter, and name the machine connection so the correct adapter can be checked.
