DINSE MRZ 8XE Fume Extraction MIG/MAG Torch
Description

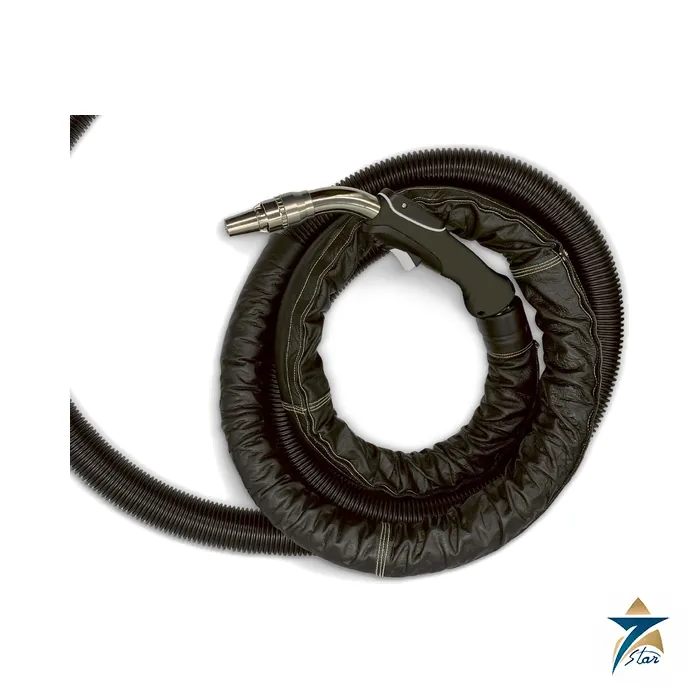

Fume extraction at the arc on a 550 A liquid-cooled torch
The DINSE MRZ 8XE is a liquid-cooled MIG/MAG fume extraction torch set rated at 550 A with CO2 and 500 A with mixed gas at 100% duty cycle (DIN EN 60974-7), for 1.0 to 1.6 mm wire. It was developed with Translas of the Netherlands: the extraction technology comes from Translas, the torch neck and wear parts from DINSE. Welding fume is drawn off through a patented gas and extraction nozzle right where it is produced, before it reaches the welder breathing zone.
DINSE states an extraction rate of 90 to 98% with full gas coverage, results confirmed by the Netherlands Organisation for Applied Scientific Research (TNO). The torch neck is based on the DINSE DIX 330 model and the supply hose uses the DINSE combi cable for current and coolant.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | DINSE / DIX MRZ 8XE SAZ |
| Cooling | Liquid-cooled |
| Rating (DIN EN 60974-7) | 550 A CO2, 500 A mixed gas, 100% duty cycle |
| Wire diameter | 1.0 to 1.6 mm |
| Extraction rate | 90 to 98% (TNO-confirmed, per DINSE) |
| Ball joint | 30 degree vertical movement, 360 degree rotation, Full Stop at 180 degrees each way |
| Torch sets, 45 degrees | MRZ 8XE-3 SAZ (6203664531), -4 SAZ (6203664541), -5 SAZ (6203664551) |
| Gas nozzles, conical | 14 mm (749000001), 17 mm (749000002) |
| Contact tips | 3-2-_._ M8x1.5, 30 mm (6290430__); Al and Cr versions |
| Tip adapter | GS 2-M8x1.5 (628150018) |
| Neck / extraction elbow | Liquid-cooled neck 45 degrees (749000030); extraction elbow 45 degrees (749000036) |
| Handle / ball joint | Handle with button (749000039); ball joint (749000115) |
Related 8XE models
| Model | Cooling | CO2 / mixed gas (100%) | Wire |
|---|---|---|---|
| MR 8XE mini | Gas | 280 A / 250 A | 0.8 to 1.2 mm |
| MR 8XE | Gas | 320 A / 300 A | 1.0 to 1.6 mm |
| MRZ 8XE mini | Liquid | 360 A / 320 A | 0.8 to 1.2 mm |
| MRZ 8XE | Liquid | 550 A / 500 A | 1.0 to 1.6 mm |
Handle options and the extraction unit
The handle can be configured with four covering caps (standard, pressure relief, one button, up/down) and four bottom caps (standard, trigger protection, blind, pistol), and all variants can be changed later. The up/down option allows the welding current to be adjusted at the torch, and the pressure relief cap lets the welder influence the extraction performance. A leather hose with a velcro fastener is included in the standard version, and the torch set can be separated from the extraction hose for service.
DINSE pairs the torch with its FE 340 extraction unit, which the flyer lists with up to 180 m3/h air volume, 33,500 Pa maximum underpressure, more than 99.99% separation efficiency, a 5 m2 filter area and a noise level below 60 dB(A). An extraction torch only works with a suitable high-vacuum unit; a standard low-vacuum fume arm cannot provide the required suction. For welders who need a conventional liquid-cooled torch without extraction, see the DINSE MZ 304.PLUS.
Documents and quotation
The DINSE MR/MRZ 8XE fume extraction torches flyer is attached under Datasheets & Documents; part numbers are from the DINSE manual welding catalogue 2022. Other torches are in our TIG Torches & MIG Guns category.
For a quotation, state the set length, wire size, cap options and whether an extraction unit is needed, with quantities.
