Mean Well EDR-120-24 DIN Rail Power Supply

Name: Mean Well EDR-120-24 DIN Rail Power Supply | Seven Star LLC
Brand: Mean Well
SKU: EDR-120-24

Economy 24 V DIN rail supply with a 40 mm footprint

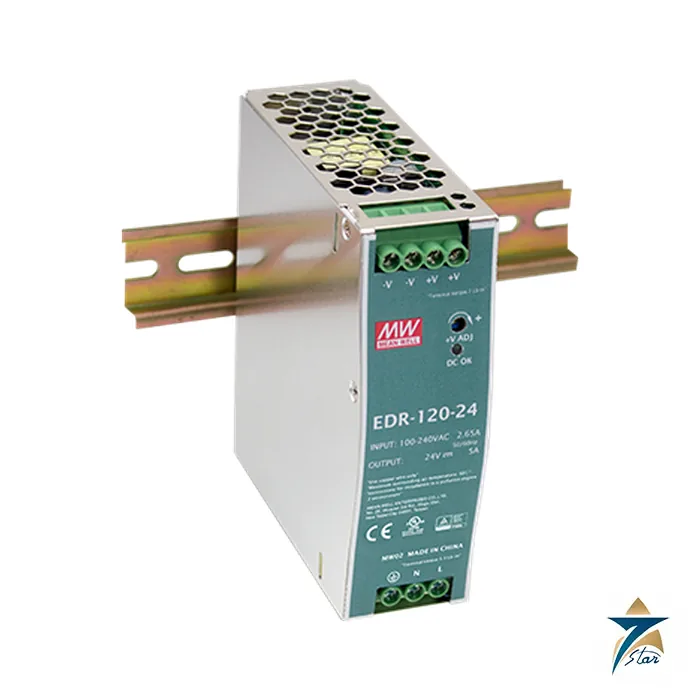

The Mean Well EDR-120-24 is a 120 W single-output DIN rail power supply with a 24 V DC, 5 A output. The EDR-120 series is described by Mean Well as an economical slim series for TS-35/7.5 or TS-35/15 rails, with a metal housing that helps the unit shed heat and a body 40 mm wide.

Input is universal: 90 to 264 VAC, or 127 to 370 VDC through the AC terminals. The 24 V model reaches 87.5% typical efficiency and is cooled by free air convection. Protection covers short circuit, overload, overvoltage and overtemperature, and the constant-current overload characteristic suits inductive and capacitive loads. Mean Well gives a two-year warranty for this series and a full-load burn-in on every unit.

Technical specifications

Parameter	Specification
Manufacturer / series	Mean Well, EDR-120
Model	EDR-120-24
DC output	24 V DC / 5 A
Power rating	120 W
Trim range	24 to 28 V
Ripple (max.)	120 mVp-p
Setpoint tolerance	+/-1.0%
Regulation (line / load)	+/-0.5% / +/-1.0%
Mains input	90 to 264 VAC; 127 to 370 VDC
Typical efficiency	87.5%
Input current (typ.)	2.25 A at 115 VAC; 1.3 A at 230 VAC
Inrush (typ.)	20 A at 115 VAC; 35 A at 230 VAC
Hold-up (typ.)	16 ms at 230 VAC; 10 ms at 115 VAC
Overload behaviour	105 to 130%, constant current limiting, auto recovery
Overvoltage limit	29 to 33 V, shut down; re-power to recover
Ambient operating range	-20 to +60 C, with derating curve
Dielectric strength	Input-output 3 kVAC; input-FG 2 kVAC; output-FG 0.5 kVAC
Approvals named	UL 508, TUV EN 62368-1, EAC TP TC 004, BSMI
Size (W x H x D)	40 x 125.2 x 113.5 mm
Mass	0.6 kg

Choosing between the 120 W DIN rail series

Mean Well offers several 120 W DIN rail families with the same 40 mm width, and the differences matter at purchase. The EDR-120 has an operating range up to +60 C at full load, which is 10 C lower than the NDR-120 data, and a warranty of two years. It is a sensible choice for temperature-controlled cabinets where cost is the main driver. Where the panel runs hot, compare the derating curve in the datasheet or consider a family rated to +70 C.

Installation and operating checks

Fit the unit on the rail with the recommended clearances: 40 mm above, 20 mm below and 5 mm at each side when running at continuous full load. Check the input range against your supply: below 90 VAC the datasheet requires derating. The output potentiometer adjusts the voltage between 24 and 28 V, The datasheet for this series does not list a DC OK relay contact, so use an external monitoring relay if the control system needs a power-fail signal. Record the nameplate output and date code at commissioning so that a replacement can be matched quickly if the supply is ever swapped on a running line.

Documents and quotation

Mean Well publishes one specification PDF for the whole EDR-120 series; it is attached to this page and shows every voltage variant together with the drawings. Please quote EDR-120-24 with the quantity, available mains, expected load and its peak, ambient temperature and approvals needed. More supplies can be found in Power Modules.
