Brand: ABB

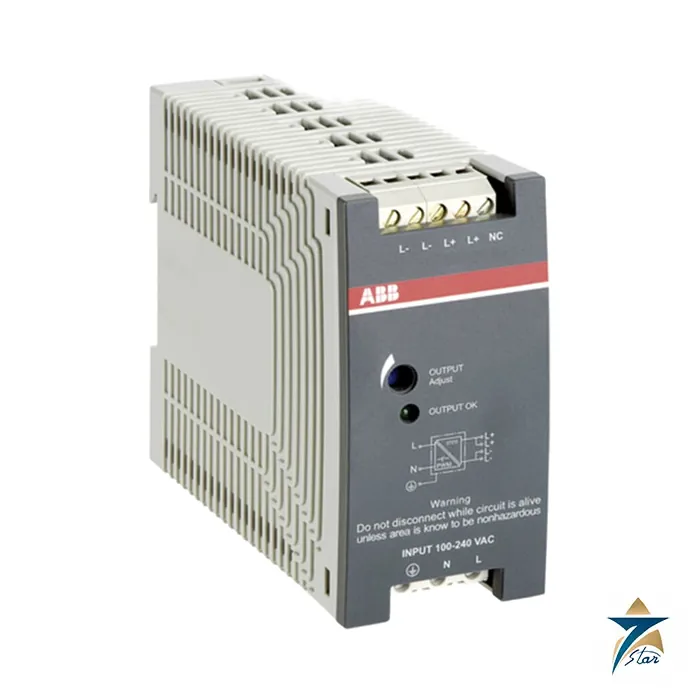

ABB CP-E 24/2.5 Power Supply 24 V DC 2.5 A 60 W

Name: ABB CP-E 24/2.5 Power Supply 24 V 2.5 A | Seven Star LLC
Brand: ABB
SKU: CP-E 24/2.5

Description

CP-E 24/2.5: a slim 60 W 24 V DC supply for small control panels

CP-E 24/2.5 is a primary switch-mode power supply from ABB’s CP-E range, delivering 24 V DC at 2.5 A (60 W) from a single-phase supply of 85 to 264 V AC or 90 to 375 V DC. At 40.5 mm wide and 0.331 kg it is among the smallest units in the range, suited to PLC racks, small relay banks and sensor supplies.

ABB states that all CP-E supplies can operate up to +70 C ambient, and this model is specified from -40 C. The output is open-circuit, overload and short-circuit proof, and an OUTPUT OK LED and a transistor DC OK output report the status.

Technical specifications

Parameter	Specification
Type designation / order code	CP-E 24/2.5 / 1SVR427032R0000
Device type	Primary switch-mode DIN-rail power supply, single-phase input, 24 V DC output
Input voltage range	100-240 V AC rated; 85-264 V AC or 90-375 V DC; 47-63 Hz
Input current / consumption	1060 mA at 115 V AC; 590 mA at 230 V AC; typical 69.2 W
Inrush current / hold-up	30 A at 115 V, 60 A at 230 V / minimum 20 ms at 115 V, 30 ms at 230 V
Internal input fuse / PFC	2 A slow-acting / none
Output	24 V DC, adjustable 24-28 V DC, 60 W, 2.5 A up to 60 C; derate 2.5 %/C to 70 C
Output characteristics	Tolerance 0…+1 %; ripple 50 mV; start max. 1 s; rise max. 150 ms; capacitive load up to 7000 uF
Signalling	OUTPUT OK green LED; DC OK transistor output
Efficiency / dissipation	Typical 89 % / 8.8 W
Parallel / series	Parallel to enable redundancy (CP-RUD module, 1SVR423418R9000); series to raise voltage
Connections	0.2-2.5 mm2 (24-14 AWG) input and output
Ambient temperature	Operation -40…+70 C
Dimensions / weight	40.5 x 90 x 114 mm (W x H x D); 0.331 kg
Mounting / protection	DIN rail snap-on, horizontal; 25 mm clearance; IP20; protection class I
Approvals (as printed)	UL 508, UL 1310, UL 60950, UL 62368-1, CAN/CSA equivalents, CCC

Input, output and protection behaviour

The wide-range input means no voltage selection is needed worldwide. Hold-up time is at least 30 ms at 230 V AC and 20 ms at 115 V AC. Inrush is limited to 60 A at 230 V, so the upstream breaker must tolerate it; the internal fuse is 2 A slow-acting. There is no power factor correction in this model.

The output can be trimmed between 24 and 28 V DC to compensate for voltage drop on long runs. Output current is 2.5 A to 60 C ambient, and derating is 2.5 percent per degree from 60 to 70 C. At 89 percent typical efficiency the unit dissipates about 8.8 W.

Sizing and redundancy

Add up the 24 V DC loads at their maximum current, including contactor or relay coil inrush, and keep a margin of 20 to 30 percent. For N+1 redundancy, ABB lists the CP-RUD redundancy unit (order code 1SVR423418R9000) in the data sheet accessories, and series connection is permitted to raise the voltage.

Capacitive loads up to 7000 uF can be started. Mount the device horizontally with 25 mm space around it.

Documents and quotation

The linked file is ABB CP-E 24/2.5 power supply data sheet 2CDC114045D0201. Seven Star LLC supplies the CP-E 24/2.5 on request from Muscat; availability and lead time are given in the quotation. More electrical and power products are in the Power Modules category, and the ABB CR-M024DC4L interface relay is a typical 24 V DC load.

Confirm before ordering: mains input range at site, the total 24 V DC load including inrush, ambient temperature in the cabinet and whether a redundancy unit is wanted.

Datasheets & Documents

Datasheet ABB CP-E 24/2.5 power supply data sheet 2CDC114045D0201 Download
