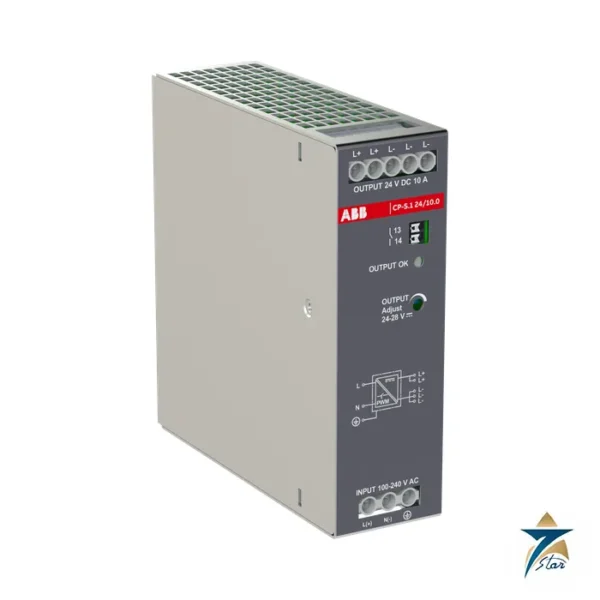

ABB CP-S.1 24/20.0 Power Supply 24 V DC 20 A 480 W

Name: ABB CP-S.1 24/20.0 Power Supply 24 V 20 A | Seven Star LLC
Brand: ABB
SKU: CP-S.1 24/20.0

Description

CP-S.1 24/20.0: 480 W high-efficiency power supply for demanding panels

CP-S.1 24/20.0 doubles the CP-S.1 24/10.0 to 20 A and 480 W. It combines efficiency above 93 percent, active power factor correction, an integrated 150 percent power reserve for five seconds and an input range of 85 to 264 V AC or 90 to 277 V DC.

The housing is a zinc-coated sheet-steel cover with coated PCBAs, and the data sheet lists approvals including marine. A relay output 13-14 provides output OK signalling.

For a quotation, send the full order code 1SVR320761R1000 together with the panel layout notes and the upstream protection you plan to use. Seven Star LLC supplies the unit as an independent supplier in Muscat, and the delivery details are confirmed in the quotation, not on this page.

Technical specifications

Parameter	Specification
Type designation / order code	CP-S.1 24/20.0 / 1SVR320761R1000
Device type	Primary switch-mode DIN-rail power supply, single-phase input, 24 V DC output
Input voltage range	100-240 V AC / 100-250 V DC rated; 85-264 V AC / 90-277 V DC
Input current	4.85 A at 115 V AC; 2.55 A at 230 V AC; max. 517 W at 230 V
Inrush / hold-up	max. 12.8 A cold start / above 15 ms at 115 V, above 20 ms at 230 V
PFC / input fuse	Active PFC / integrated
Output	24 V DC, adjustable 24-28 V DC, 480 W, 20 A from -25 to 60 C; derate 2.5 %/K to 70 C
Power reserve	150 % of rated current for 5 s
Efficiency / ripple	above 93 % at rated load / below 75 mVpp (class A)
Signalling	Relay output 13-14 (OUTPUT OK); green LED
Parallel / series	Up to 3 in parallel; 2 in series; CP-C.1-A-RU redundancy unit (1SVR360060R1001)
Connections	Rigid and fine-strand 0.5-4.0 mm2 (20-12 AWG); signalling 0.15-0.8 mm2
Ambient temperature	Operation -25…+70 C
Housing / protection	Zinc-coated sheet steel cover; IP20; protection class I
Let-through energy I2t	below 3 A2s at 230 V cold state

High-current behaviour of the 20 A model

At 230 V the input current is only 2.55 A, and cold-start inrush is limited to 12.8 A, so smaller upstream breakers can be used. The power reserve means the output can supply 30 A for five seconds, which assists with starting capacitive loads or clearing a fault on a branch.

Rated 20 A is available up to 60 C; derating of 2.5 percent per kelvin applies to 70 C. Hold-up exceeds 20 ms at 230 V.

Redundancy, parallel use and protection

Up to three CP-S.1 units can be connected in parallel for more power or for redundancy, provided that the output voltage difference is below 50 mV. ABB lists the CP-C.1-A-RU for true redundancy. Two units may also be connected in series to raise the output voltage, as the data sheet permits.

As with the 10 A model, ABB recommends an S200 miniature circuit breaker as supply protection, and requires a protective earth connection.

Documents and quotation

The linked file is ABB CP-S.1 24/20.0 power supply data sheet 1SAC200140H0001. Seven Star LLC supplies the CP-S.1 24/20.0 on request from Muscat; availability and lead time are given in the quotation. More electrical and power products are in the Power Modules category, and the ABB CR-M024DC4L interface relay is a typical 24 V DC load.

Confirm before ordering: mains input range at site, the total 24 V DC load including inrush, ambient temperature in the cabinet and whether a redundancy unit is wanted.
