Mean Well WDR-240-24 DIN Rail Power Supply

Name: Mean Well WDR-240-24 DIN Rail Power Supply – Datasheet
Brand: Mean Well
SKU: WDR-240-24

A 240 W DIN rail supply that accepts 180 to 550 VAC

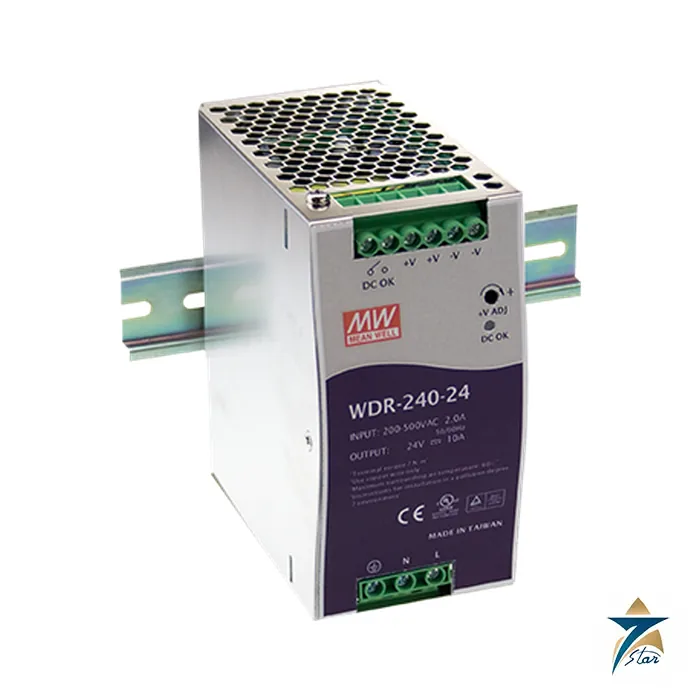

The Mean Well WDR-240-24 is a 240 W DIN rail power supply with a 24 V DC output at 10 A. Its main feature is a very wide input window: 180 to 550 VAC (254 to 780 VDC), so one part number can serve different supply voltages, for example 230 V and 400 V systems, subject to the connection scheme in the manual.

Typical efficiency is 91%, the working temperature is -30 to +70 C with derating, and the housing is 63 mm wide. The unit has a built-in DC OK relay contact, constant current limiting on overload, and over-voltage and over-temperature protection. Mean Well gives a three-year warranty and a full-load burn-in test for the series.

Technical specifications

Parameter	Specification
Manufacturer / series	Mean Well, WDR-240
Model	WDR-240-24
Output voltage / rated current	24 V DC / 10 A
Rated power	240 W
Voltage adjustment range	24 to 28 V
Ripple and noise (max.)	150 mVp-p
Voltage tolerance	+/-1.0%
Line / load regulation	+/-0.5% / +/-1.0%
Input voltage range	180 to 550 VAC; 254 to 780 VDC
Power factor (typ.)	0.84 or higher at 400 VAC
Efficiency (typ.)	91%
AC current (typ.)	1 A at 400 VAC; 2 A at 230 VAC
Inrush current (typ.)	Cold start 50 A
Hold-up time (typ.)	18 ms at 400 VAC and 230 VAC
Overload protection	105 to 130%, shut down after 3 s, auto-recovery after 1 minute
Overvoltage protection	29 to 33 V, shut down; auto-recovery after 1 minute
DC OK relay contact	60 Vdc/0.3 A, 30 Vdc/1 A, 30 Vac/0.5 A resistive
Working temperature	-30 to +70 C, with derating curve
Withstand voltage	Input-output 3 kVAC; input-FG 2 kVAC; output-FG 0.5 kVAC
Safety approvals listed	UL 508, EAC TP TC 004, IEC 62368-1 CB (SIQ), GL
Dimensions (W x H x D)	63 x 125.2 x 113.5 mm
Weight	1.06 kg

Why a wide input range is useful

Machine builders who ship equipment to sites with different supply systems often stock several supplies for 230 V, 400 V and 480 V. A unit with a 180 to 550 VAC range removes that variation, and the same 24 V, 10 A supply can be fitted to every machine. Check that the actual installation connects the unit to a supported combination of conductors and that upstream protection is appropriate for the cold-start inrush of 50 A.

Operating behaviour to plan for

Overload and overvoltage conditions shut down the output after 3 seconds and the supply then recovers by itself after one minute once the fault is gone, so a persistent fault produces a cycling output rather than a latch. The DC OK relay lets the controller see that cycling. The power factor is 0.84 or higher, lower than the PFC-based three-phase TDR-480, which is a reasonable trade for the wider input window. Mount on TS-35/7.5 or TS-35/15 rail with the clearances in the datasheet. Mark the connection scheme used on each machine in the electrical documentation, so service engineers know which conductors are wired to the input terminals.

Documents and quotation

Mean Well publishes one specification PDF for the whole WDR-240 series; it is attached to this page and shows every voltage variant together with the drawings. Please quote WDR-240-24 with the quantity, available mains, expected load and its peak, ambient temperature and approvals needed. More supplies can be found in Power Modules.

Mean Well power supply families

The catalogue covers DIN rail power supplies from 15 W to several hundred watts in single-phase and three-phase versions, enclosed chassis supplies with fan or convection cooling, medical-standard supplies, DIN rail DC-DC converters and many other formats. Each series has a datasheet that lists all output voltages, derating curves and approvals. The standard catalogue format suits machine builders, panel builders and maintenance teams that need a documented, replaceable supply rather than a custom design.
