ABB CP-E 24/20.0 Power Supply 24 V DC 20 A 480 W

Name: ABB CP-E 24/20.0 Power Supply 24 V 20 A | Seven Star LLC
Brand: ABB
SKU: CP-E 24/20.0

Description

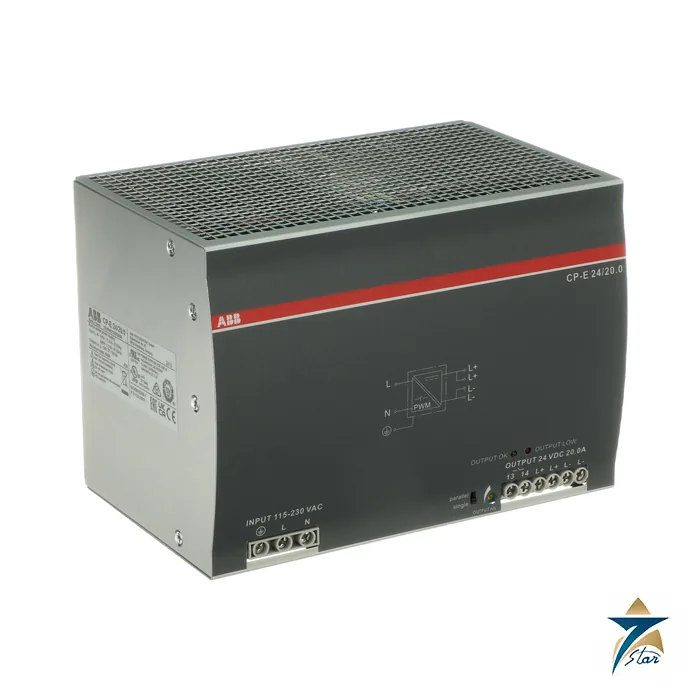

CP-E 24/20.0: 480 W supply with active power factor correction

CP-E 24/20.0 is the largest CP-E model, delivering 20 A (480 W) at 24 V DC from a wide 90 to 264 V AC or 120 to 375 V DC input. It differs from the smaller models by its active power factor correction (0.99 at 115 V, 0.97 at 230 V) and by the full-range AC input without a voltage switch.

Housed in metal at 175 mm wide and 1.85 kg, it is built for panels with large PLC systems, drive control electronics and many solenoid valves. ABB specifies operation from -40 to +70 C.

Technical specifications

Parameter	Specification
Type designation / order code	CP-E 24/20.0 / 1SVR427036R0000
Device type	Primary switch-mode DIN-rail power supply, single-phase input, 24 V DC output
Input voltage range	115-230 V AC; 90-264 V AC or 120-375 V DC; 47-63 Hz
Input current / consumption	4.9 A at 115 V AC; 2.5 A at 230 V AC; typical 539 W
Inrush current / hold-up	25 A at 115 V and 50 A at 230 V (max 5 ms) / min 25 ms and 30 ms
Internal input fuse / PFC	10 A slow-acting / active (0.99 at 115 V, 0.97 at 230 V)
Output	24 V DC, adjustable 22.5-28.5 V DC, 480 W, 20 A up to 55 C; derate 2.5 %/C to 70 C
Signalling	13-14 solid-state contact (60 V DC, 0.3 A); green and red LEDs
Efficiency / dissipation	Typical 89 % / 63 W
Parallel / series	Up to 3 units in parallel; 2 in series; CP-A RU redundancy unit 1SVR427071R0000
Isolation	Input/output 3 kV AC; input/PE 1.5 kV AC; output/PE 0.5 kV AC
Ambient temperature	Operation -40…+70 C
Dimensions / weight	175 x 123.6 x 123.6 mm (W x H x D); 1.850 kg; metal housing
Mounting	DIN rail snap-on, horizontal; 25 mm clearance
Immunity / emission	IEC/EN 61000-6-2 (ESD level 4, burst level 4, surge L-PE level 4); emission class B per IEC/EN 61000-6-3
Standards (as printed)	IEC/EN 62368-1

Why the PFC and derating data matter

Active PFC reduces input current: 2.5 A at 230 V for 480 W of output. That helps with breaker selection and generator sizing. The data sheet gives 25 A at 115 V and 50 A at 230 V of inrush for 5 ms and a 10 A slow-acting internal fuse.

Full output of 20 A is available up to 55 C; above that the output is derated by 2.5 percent per degree to 70 C. Dissipation is 63 W at typical efficiency of 89 percent, which must be removed from the enclosure by convection.

Compliance and installation

The data sheet lists electromagnetic immunity to IEC/EN 61000-6-2 with level 4 for ESD and burst, level 4 line-to-earth surge and class B emissions, and isolation of 3 kV AC between input and output. A signalling contact 13-14 reports output OK.

Mount horizontally on DIN rail with 25 mm clearance. Up to three units may be paralleled for capacity, or a CP-A RU redundancy unit used with two supplies. The output can be set between 22.5 and 28.5 V DC.

Documents and quotation

The linked file is ABB CP-E 24/20.0 power supply data sheet 2CDC114062D0201. Seven Star LLC supplies the CP-E 24/20.0 on request from Muscat; availability and lead time are given in the quotation. More electrical and power products are in the Power Modules category, and the ABB CR-M024DC4L interface relay is a typical 24 V DC load.

Confirm before ordering: mains input range at site, the total 24 V DC load including inrush, ambient temperature in the cabinet and whether a redundancy unit is wanted.
