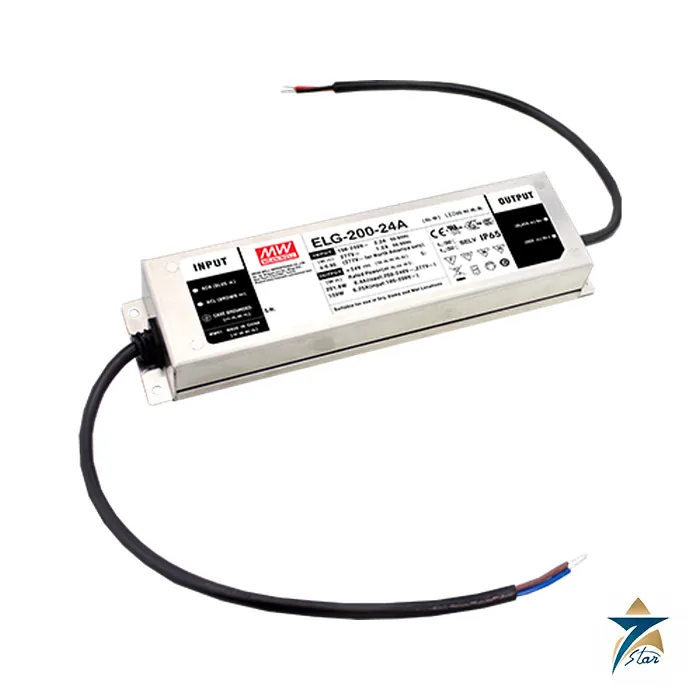

Mean Well ELG-200-24A 24 V 200 W IP65 LED Driver with Adjustable Output

A 200 W constant voltage and constant current LED driver in an IP65/IP67 case

The Mean Well ELG-200-24A is a 200 W LED driver that combines a constant voltage output with a wide constant current region. It delivers 24 V DC at up to 8.4 A, and the A-type version used here lets the installer adjust both the output voltage and the output current through built-in potentiometers. It is intended for LED strips, modules and luminaires in signage, architectural, street, tunnel and industrial lighting where the fitting is exposed to dust and water.

The die-cast aluminium case is rated IP65 or IP67 depending on the type, the input accepts 100 to 305 Vac, and the driver is specified for a case temperature of -40 to +90 C. The datasheet lists a typical efficiency of 92% for the 24 V model and a power factor of 0.95 or better at 230 Vac.

Technical specifications

Reading the ELG-200-24A part number

The ELG-200 family is ordered by output voltage and by a type suffix. In ELG-200-24A, 200 is the power class, 24 is the nominal 24 V output and the suffix A means that the output voltage and current can be adjusted with potentiometers. According to the datasheet, a blank suffix is the fixed output, B adds 3-in-1 dimming, AB combines adjustment and dimming, and DA adds a DALI interface. The ELG-200 range has six voltages: 12, 24, 36, 42, 48 and 54 V.

Because the driver has a constant current region, it can drive a string of LED modules whose total forward voltage falls between 12 and 24 V at a current set up to 8.4 A, or act as a conventional 24 V constant voltage supply for LED strips. The datasheet gives driving method diagrams and the rated power drops to 150 W when the supply is below 180 Vac, so check the real mains voltage of the installation.

Installation and approvals

The driver has fly leads for input and output, and the datasheet states that the installer must read the user manual for water proof installation cautions before use. The listed approvals include UL 8750 (type HL), CSA C22.2 No. 250.13-12, IEC/EN 61347-1 and 61347-2-13, EN 62384, EAC TP TC 004 and GB/T 19510, with the IP65 or IP67 rating given in the same list. EMC emission is to EN 55015 and EN 61000-3-2 Class C at 50% load or more, and immunity includes 6 kV line to earth surge. Mean Well treats its power supplies and drivers as components to be installed in final equipment, so the EMC and safety results quoted in the datasheet must be re-confirmed in the finished installation. For A and AB types, the datasheet also notes that built-in use must be considered to comply with Type HL applications.

How the Mean Well ELG-200-24A works

The driver converts the AC mains supply into a regulated DC output. It holds the voltage steady for strips and modules and limits the current for lamps that need it. Two potentiometers inside let the installer trim the voltage and the current.

Where the ELG-200-24A is used

• Signage
• Architectural lighting
• Street lighting
• Tunnel lighting
• Industrial lighting

Selection checklist for the ELG-200-24A

• Output voltage
• Output current
• Lamp load power
• Mains voltage
• Adjustment need
• Mounting space
• Ambient temperature
• Cable entry

Installation, commissioning and maintenance notes for the ELG-200-24A

Mount the driver on a solid surface with room for heat to leave the case. Connect the mains and the load wires and switch on. Check the output and the cables at regular intervals.

Requesting a quotation for the Mean Well ELG-200-24A

Please send the lamp load, the voltage and the mains supply needed. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

ELG-200-24A device type

It is an LED driver.

ELG-200-24A maker

It is made by Mean Well.

ELG-200-24A series

It belongs to the ELG-200 series.

ELG-200-24A power

The rated power is 200 W.

ELG-200-24A output voltage

The output is 24 V DC.

ELG-200-24A output current

The rated current is 8.4 A.

ELG-200-24A output modes

It combines constant voltage with a wide constant current region.

ELG-200-24A current region

The constant current region runs from 12 to 24 V.

ELG-200-24A voltage adjustment

A potentiometer adjusts the voltage from 22.4 to 25.6 V.

ELG-200-24A current adjustment

A potentiometer adjusts the current from 4.2 to 8.4 A.

ELG-200-24A input range

The input accepts 100 to 305 Vac.

ELG-200-24A frequency

The mains frequency is 47 to 63 Hz.

ELG-200-24A case

The case is die-cast aluminium.

ELG-200-24A case temperature

The case temperature runs from minus 40 to plus 90 degrees C.

ELG-200-24A no-load use

Power use with no load is below 0.5 W.

ELG-200-24A over-voltage

Over-voltage protection shuts the driver down, and re-powering restores it.

ELG-200-24A short circuit

A short circuit puts the driver in hiccup mode.

ELG-200-24A size

The size is 244 by 71 by 37.5 mm.

ELG-200-24A weight

It weighs 1.22 kg.

ELG-200-24A exposure

The case suits fittings exposed to dust and water.

Driver records for the ELG-200-24A

Record the output setting, the load and the date of each check.

Choosing the right ELG-200-24A setting

Choose the output setting from the lamp rating.

Documents and quotation

The attached ELG-200 series datasheet covers the driving methods, static characteristics, power factor and harmonic curves, load versus temperature chart, dimming functions and the mechanical drawings of every type. When requesting a quotation for the ELG-200-24A, send the quantity, the LED load voltage and current, the mains voltage, the ambient temperature and whether outdoor sealing is needed. See also Power Modules for other Mean Well supplies and drivers.
