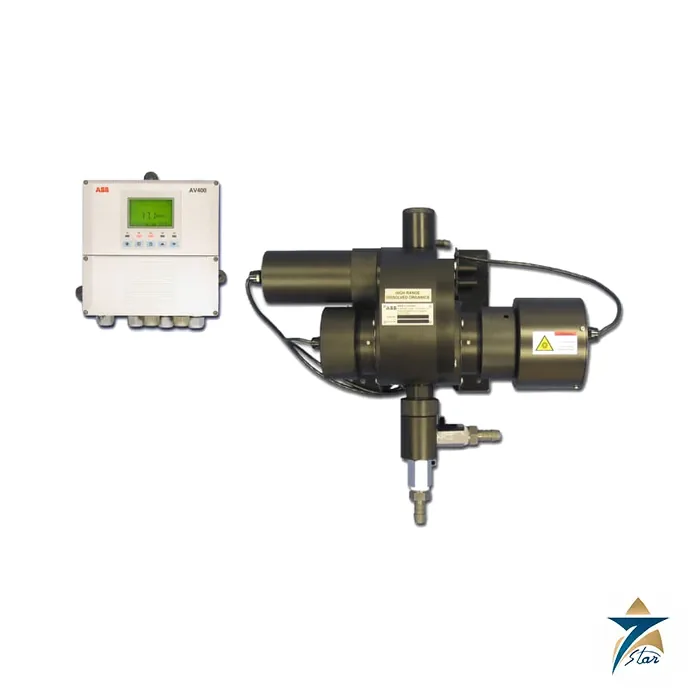

ABB AV410 Series Dissolved Organics Monitor
Overview
The ABB Dissolved Organics Monitor line – comprising the AV410, AV411, AV412, AV420, and AV422 models – provides continuous, high-precision monitoring of dissolved organic substances in water using ultraviolet (UV) absorption technology. This page covers the product family as a whole; the individual models differ primarily in measurement range and configuration, letting operators select the variant that matches their specific ultrapure-water, industrial treatment, or reverse-osmosis monitoring requirement.
Seven Star LLC supplies the ABB Dissolved Organics Monitor line to industrial and utility operators across Oman and the wider GCC. Every unit is supplied with manufacturer documentation and warranty, and backed locally with application guidance to help customers select the correct model for their water quality goals.
Operating Principle
These analyzers measure total organic carbon (TOC) indirectly by tracking UV absorption at a wavelength where dissolved organic compounds preferentially absorb light – as organic concentration rises, more UV light is absorbed by the sample, and the analyzer converts this attenuation into a continuous, real-time organics reading. Because the method requires no chemical reagents, it avoids the reagent-supply logistics and consumable handling associated with wet-chemistry TOC analyzers.
The absence of reagents also means low ongoing maintenance: the optical measurement cell is the primary wear component, and periodic cleaning or cell replacement is the main upkeep requirement rather than reagent replenishment and calibration solution changes. Smart diagnostics and automated validation routines continuously verify measurement integrity, flagging cell fouling or drift before it compromises accuracy.
Engineering Design of the AV410/AV411/AV412/AV420/AV422 Series
The series is built around a compact, robust housing suited to installation directly in industrial environments, with a user-friendly interface that simplifies configuration and day-to-day operation for plant personnel. Integration with SCADA and PLC systems is straightforward, allowing continuous organics data to feed directly into a facility’s process control and quality-monitoring infrastructure.
Across the five models, the underlying UV-absorption measurement principle stays consistent while the specific measurement range and output configuration are tailored to the target application – from trace-level monitoring in ultrapure semiconductor and pharmaceutical water to broader-range monitoring in reverse osmosis and general industrial water treatment. Seven Star LLC helps customers match the correct model to their process before ordering.
Key Features
- Continuous online TOC monitoring via UV absorption, no chemical reagents required
- Five-model range (AV410, AV411, AV412, AV420, AV422) covering different measurement needs
- Low-maintenance operation with stable, drift-resistant readings
- Smart diagnostics and automated validation reduce manual calibration
- Straightforward SCADA/PLC integration
- Compact, robust housing for industrial installation
- User-friendly interface for simplified operation
- Suited to laboratory and full-scale industrial deployment alike
Industrial Applications
This monitor series is widely applied in ultrapure water systems for semiconductor and pharmaceutical manufacturing, industrial water treatment plants tracking organic contamination, and reverse osmosis systems where organic fouling risk must be monitored continuously. Its reagent-free operation makes it especially suited to remote or hard-to-service installations where consumable logistics would otherwise be a burden.
Across Oman’s industrial water treatment and desalination sectors, and throughout the wider GCC, Seven Star LLC supplies the ABB Dissolved Organics Monitor series to facilities in Muscat, Sohar, and Salalah that need dependable, factory-genuine organics monitoring with full local application support.
Technical Specifications
| Model | ABB Dissolved Organics Monitor (AV410 / AV411 / AV412 / AV420 / AV422) |
| Measurement Parameter | Dissolved organic substances (TOC, via UV absorption) |
| Measurement Method | Ultraviolet (UV) absorption, reagent-free |
| Diagnostics | Smart diagnostics, automated validation |
| Integration | SCADA/PLC compatible |
| Enclosure | Compact, robust industrial housing |
| Application | Ultrapure water, industrial water treatment, reverse osmosis |
Choosing the Right Model
The five models share the same UV measurement principle, so selection depends on the water being monitored and the range and outputs required. To match a model from the ABB Dissolved Organics Monitor family to your application, prepare:
- The water type: ultrapure water, RO permeate, treated process water or wastewater
- The expected organics level and the alarm or control limits
- Sample temperature, pressure and the presence of suspended solids or colour
- Required outputs and communication to the SCADA or PLC
- Whether results must correlate with laboratory TOC or COD figures
If you are replacing an installed unit, the model and part number on the analyser label are the quickest way to identify the correct replacement.
Installation and Commissioning
Install the monitor close to the sampling point to keep sample lag short, with a steady sample flow and a drain that does not create back pressure. Shade the enclosure from direct sun and keep the ambient temperature within the stated limits; in the Gulf this often means installation in an analyser shelter. During commissioning, check the zero on clean water, confirm the reading against laboratory results on grab samples, and set alarm limits and output scaling. A correlation between UV absorbance and laboratory TOC is specific to each water source, so it should be established on the actual water.
Maintenance and Troubleshooting
- Reading drifts upward: fouling of the optical cell; clean it according to the manual.
- Noisy signal: air bubbles in the sample, or unsteady flow.
- Poor agreement with the lab: change in the type of organics in the water; recheck the correlation.
Regular review of the diagnostic messages helps plan cleaning before measurement quality suffers.
Applications in Oman and the GCC
UV organics monitoring is used on RO feed and permeate in desalination plants, in condensate return monitoring at power and process plants, and on treated effluent from industrial and municipal wastewater plants.
Sourcing from Seven Star LLC
Seven Star LLC supplies the ABB AV400 series and spare optical components, and reviews your application data with you before ordering.
Request a Quote for ABB Dissolved organics monitor AV410,AV411,AV420,AV422,AV412
Contact Seven Star LLC for a quotation on the ABB Dissolved Organics Monitor series, with manufacturer documentation and local support across Oman and the GCC.
