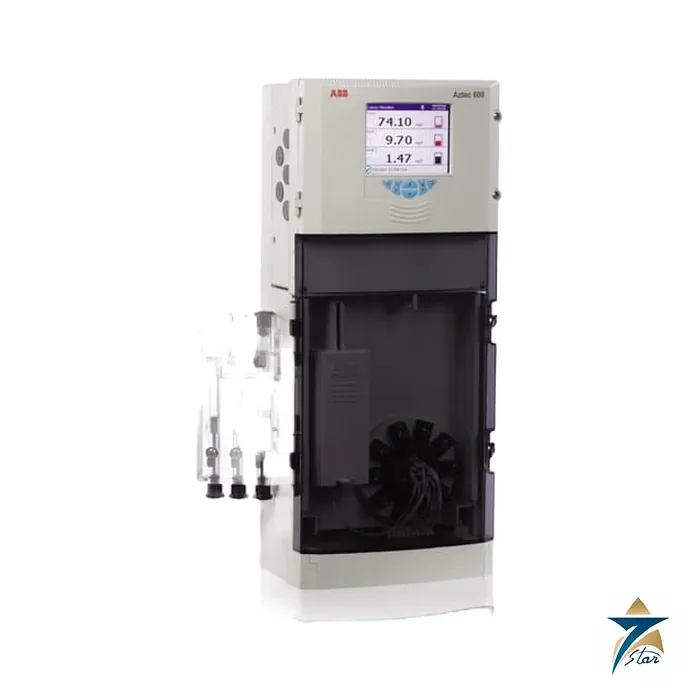

ABB Color analyzer Aztec AW637
Overview
The ABB Aztec AW637 Color Analyzer is a continuous, online instrument for measuring true water color, a key optical indicator that drinking water treatment plants use to verify that coagulation and clarification stages are performing correctly. Color is measured as absorbance at 400 nm and expressed on the internationally recognized Hazen (Platinum-Cobalt, Pt-Co) scale over a 0 to 500 unit range, giving treatment plant operators a direct, real-time signal of raw water quality shifts and coagulant dosing effectiveness long before a color excursion would otherwise be noticed at the plant outlet.
Backed by genuine manufacturer documentation, Seven Star LLC proudly supplies the Aztec AW637 Color Analyzer to municipal water authorities and industrial water treatment operators across the Sultanate of Oman and the wider Gulf region. Every unit is supplied on request with manufacturer documentation, regional technical support, and access to original ABB spare parts and reagents – with lead time and availability confirmed at quotation.
Measurement Principle
The AW637 determines water color by measuring the absorbance of a filtered or unfiltered sample at 400 nm and converting the result to Hazen or Pt-Co units, the industry-standard scale for apparent and true color in potable water. Because the measurement is optical rather than reagent-based, the analyzer delivers a stable reading with minimal consumable cost, while a self-cleaning measurement system keeps the optical path free of biofouling and particulate buildup between the automatic two-point calibrations that the instrument performs on its own schedule.
In practical terms this delivers an accuracy of ±2% of reading or ±0.5 Hazen across 0–300 Hazen (±5% from 300–500 Hazen), with repeatability of ±1% of reading at 20% of span, and a resolution down to 1 ppb. Measurement frequency is user-selectable from 1 to 12 readings per hour, letting plant staff match sampling speed to how quickly raw water quality is changing – critical during storm events or seasonal turnover when coagulant dosing needs to respond quickly to a shifting color load.
Engineering Design of the ABB Aztec AW637
The Aztec AW637 is built on ABB’s Aztec 600 analyzer platform, a compact, wall or panel-mounted colorimetric analyzer chassis shared across ABB’s water analytical range, with the color-specific optical measurement cell and self-cleaning system fitted for this application. The instrument can analyze up to three separate sample streams from a single chassis, sequencing between raw water, post-coagulation, and filtered water sample points to give operators a full picture of color reduction through each treatment stage without needing three separate analyzers.
Operator interaction is handled through a full-color graphical display with intuitive, menu-driven software, supporting straightforward calibration, diagnostics, and trend review directly at the panel. Built-in data logging with graphical process trending, a full audit trail, and secure data archiving to SD card give plant staff a complete measurement history without depending on a separate data acquisition system, while communication via Modbus or Profibus allows direct integration into existing SCADA or DCS architecture.
Key Features
The Aztec AW637 combines optical measurement accuracy with the automation a modern water treatment control room expects, including:
- Continuous measurement of true water color across a 0 to 500 Hazen (Pt-Co) range using 400 nm absorbance photometry.
- Analysis of up to three independent sample streams from a single analyzer chassis, reducing instrumentation cost across multiple treatment stages.
- Automatic two-point calibration and a self-cleaning measurement system that minimizes manual maintenance and optical fouling.
- User-selectable measurement frequency of 1 to 12 readings per hour to match plant response requirements.
- Full-color graphical display with intuitive, menu-driven navigation for calibration, diagnostics, and trend review.
- Data logging with graphical process trending and a full audit trail, secured with archiving to SD card.
- Modbus and Profibus communication for direct integration into SCADA and DCS control systems.
- Resolution down to 1 ppb, giving operators early warning of small shifts in raw water color before they affect finished water quality.
Industrial Applications
Coagulation optimization is one of the most consequential control decisions a drinking water treatment plant makes daily, and it is exactly where the Aztec AW637 earns its place. Across Oman and the GCC, where surface and desalinated water sources can carry seasonal turbidity and organic color loading, municipal water authorities use continuous color monitoring on raw water intake to detect source-water changes early, and on post-coagulation and filtered water streams to confirm that coagulant dosing is achieving the target color reduction before water reaches distribution. This real-time feedback loop lets treatment operators fine-tune coagulant dosing continuously rather than relying on periodic grab-sample lab testing that can lag hours behind an actual process upset.
Working closely with plant engineers in the region, Seven Star LLC distributes the Aztec AW637 Color Analyzer to water treatment authorities, industrial process water operators, and engineering consultancies across Muscat, Sohar, and Salalah, as well as the wider Gulf region. The analyzer’s multi-stream capability makes it equally suited to a compact municipal plant monitoring a single treatment train or a larger facility tracking color reduction across several parallel clarification lines.
Technical Specifications
Key technical specifications for the ABB Aztec AW637 Color Analyzer are summarized below.
| Parameter | Specification |
|---|---|
| Model | ABB Aztec AW637 Color Analyzer |
| Measuring Principle | Absorbance photometry at 400 nm, Hazen / Pt-Co scale |
| Measuring Range | 0 to 500 Hazen (Pt-Co) units |
| Accuracy | ±2% of reading or ±0.5 Hazen (0–300 Hazen); ±5% (300–500 Hazen) |
| Repeatability | ±1% of reading at 20% of span |
| Resolution | 0.001 ppm / 1 ppb |
| Measurement Frequency | 1 to 12 readings per hour, user-selectable |
| Calibration | 2-point, automatic |
| Sample Streams | Up to 3 per analyzer |
| Communication | Modbus, Profibus |
| Data Storage | Removable SD card, full audit trail |
Request a Quote for ABB Color analyzer Aztec AW637
Seven Star LLC welcomes formal RFQs for the ABB Aztec AW637 Color Analyzer from municipal water authorities, treatment plant operators, and engineering consultancies across Oman and the GCC. With fast quotation turnaround and technical support, we supply on request with lead time confirmed at quotation, provide the full technical datasheet on request, and can connect your team directly with our instrumentation division for application sizing and technical support. Contact Seven Star LLC today to request a formal quotation or technical consultation for your water color monitoring requirements.
