ABB Phosphate analyzer Navigator AW642
Overview

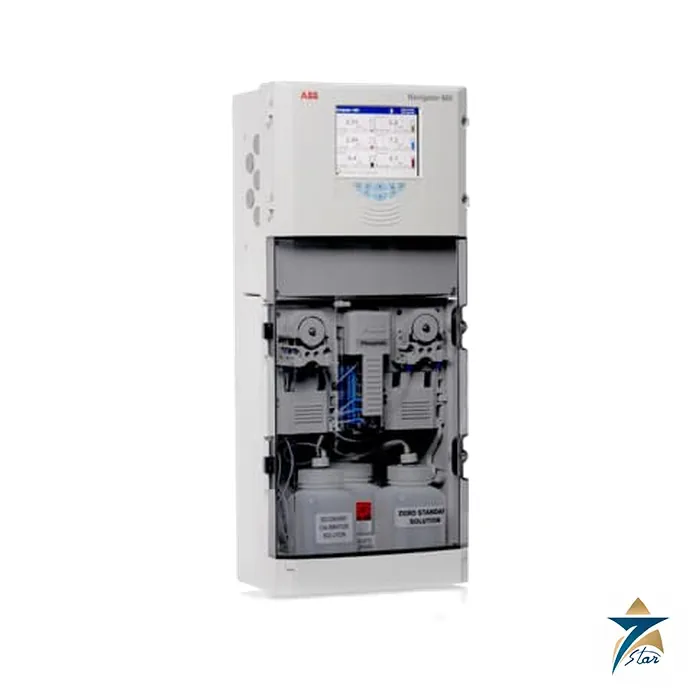

The ABB Navigator AW642 (Navigator 600 Phosphate Analyzer) is a continuous, online instrument for monitoring phosphate concentration in boiler feedwater and steam-raising applications, where accurate phosphate dosing control directly protects turbine and boiler equipment from scale formation. Built on ABB’s higher-specification Navigator 600 platform, the AW642 uses the industry-standard molybdenum blue colorimetric reaction to deliver stable, repeatable readings, with automatic cleaning, calibration, and zeroing reducing the instrument’s routine maintenance to as little as five minutes per year.
With engineering support in Muscat, Seven Star LLC supplies the Navigator AW642 Phosphate Analyzer to power generation utilities and industrial steam plants across the Sultanate of Oman and the wider Gulf region. Every unit is supplied on request with manufacturer documentation, regional technical support, and access to original ABB reagents and spare parts – with lead time and availability confirmed at quotation.
Measurement Principle
The AW642 determines phosphate concentration using the industry-standard molybdenum blue reaction: the sample reacts with reagent to form a blue phosphomolybdenum complex whose absorbance is directly proportional to phosphate concentration. The analyzer covers a primary range of 0 to 15 ppm PO₄ (0 to 5 ppm phosphorous), with a minimum programmable range down to 0 to 1 ppm PO₄ and automatic range-switching between 0.00–2.99 and 3.0–15.0 ppm bands, so the instrument holds resolution whether phosphate dosing is running lean or high.
In practical terms this delivers a response time of under 15 minutes for a 90% step change, with accuracy of ±3% of reading or ±0.1 ppm (whichever is greater) across 0–10 ppm, tightening to ±5% from 10–15 ppm. Because the automatic cleaning, calibration, and zero functions run on their own schedule, the AW642 is rated for up to six months of unattended operation between routine service visits – a significant advantage on remote or hard-to-access boiler house installations.
Engineering Design of the ABB Navigator AW642
The Navigator AW642 is housed in an IP31-rated enclosure (IP66 for wet components and the transmitter) measuring 638 mm high by 271 mm wide by 182 mm deep and weighing approximately 15 kg, sized for wall or panel mounting close to the sample point. The analyzer accepts a sample flow between 20 and 500 ml/min at temperatures from 5 to 55°C, with a particulate tolerance under 60 microns and 10 mg/l – specifications that suit typical boiler feedwater and steam condensate sample conditioning systems without additional filtration.
Consumable requirements are deliberately low: two reagents (up to 2.5 litres combined per 90 days), two standard solutions, and one cleaning solution, reflecting ABB’s design goal of up to 90% lower reagent consumption than competing phosphate analyzers. The instrument offers field-upgradeable stream configuration – 1, 2, 4, or 6 streams – six isolated current outputs, four dedicated relays plus six user-programmable relays, and an embedded web server with FTP access for remote viewing, configuration, and email alerts, with optional Profibus DP communication for direct SCADA integration.
Key Features
The Navigator AW642 combines proven colorimetric chemistry with low-maintenance automation built for steam plant reliability, including:
- Continuous phosphate measurement across a 0 to 15 ppm PO₄ range using the industry-standard molybdenum blue reaction.
- Automatic cleaning, calibration, and zeroing, reducing routine maintenance to roughly five minutes per year.
- Up to six months of unattended operation, ideal for remote or difficult-to-access boiler house installations.
- Field-upgradeable multi-stream configuration – 1, 2, 4, or 6 sample streams – from a single transmitter.
- Response time under 15 minutes for a 90% step change, fast enough to catch dosing excursions before they affect boiler chemistry.
- Up to 90% lower reagent consumption than competing phosphate analyzers, reducing consumable cost over the analyzer’s service life.
- Embedded web server with FTP access, remote configuration, and SMTP email alert notification.
- Six isolated current outputs plus ten relays (four dedicated, six user-programmable) for full integration with plant control and alarm systems.
Industrial Applications
Phosphate dosing control is a core water-chemistry safeguard in any high-pressure steam system, and it carries particular weight across Oman and the GCC, where power generation plants frequently run near-continuous baseload duty cycles that leave little tolerance for boiler chemistry excursions. In combined-cycle and steam power stations, the Navigator AW642 is installed on boiler feedwater and drum sample lines to confirm that phosphate dosing is maintaining the correct alkalinity buffer and preventing the calcium and magnesium scale that phosphate treatment programs are specifically designed to control, protecting boiler tubes and downstream turbine components from scale-related efficiency loss and unplanned outages.
Backed by genuine manufacturer documentation, Seven Star LLC distributes the Navigator AW642 Phosphate Analyzer to power utilities, petrochemical steam systems, and district cooling plant operators across Muscat, Sohar, and Salalah, as well as the wider Gulf region. The analyzer’s multi-stream, field-upgradeable design suits both a single-boiler installation and a larger station monitoring phosphate dosing across several parallel steam-raising units from one transmitter.
Technical Specifications
Key technical specifications for the ABB Navigator AW642 Phosphate Analyzer are summarized below.
| Parameter | Specification |
|---|---|
| Model | ABB Navigator 600 Phosphate Analyzer AW642 |
| Measuring Principle | Molybdenum blue colorimetric reaction |
| Measuring Range | 0 to 15 ppm PO₄ (0 to 5 ppm phosphorous); down to 0–1 ppm programmable |
| Response Time | <15 minutes (90% step change) |
| Accuracy | ±3% of reading or ±0.1 ppm (0–10 ppm); ±5% (10–15 ppm) |
| Sample Flow | 20 to 500 ml/min |
| Sample Temperature | 5 to 55°C |
| Streams | 1, 2, 4, or 6, field-upgradeable |
| Enclosure Rating | IP31 (IP66 for wet components / transmitter) |
| Power Supply | 110–240 VAC or optional 18–36 VDC |
| Dimensions / Weight | 638 × 271 × 182 mm, 15 kg |
| Communication | Web/FTP server, optional Profibus DP V1.0 |
Request a Quote for ABB Phosphate analyzer Navigator AW642
Seven Star LLC welcomes formal RFQs for the ABB Navigator AW642 Phosphate Analyzer from power generation utilities, industrial steam plants, and engineering contractors across Oman and the GCC. Working closely with plant engineers in the region, we supply on request with lead time confirmed at quotation, provide the full technical datasheet on request, and can connect your team directly with our instrumentation division for application sizing, reagent kit planning, and technical support. Contact Seven Star LLC today to request a formal quotation or technical consultation for your boiler feedwater phosphate monitoring requirements.
