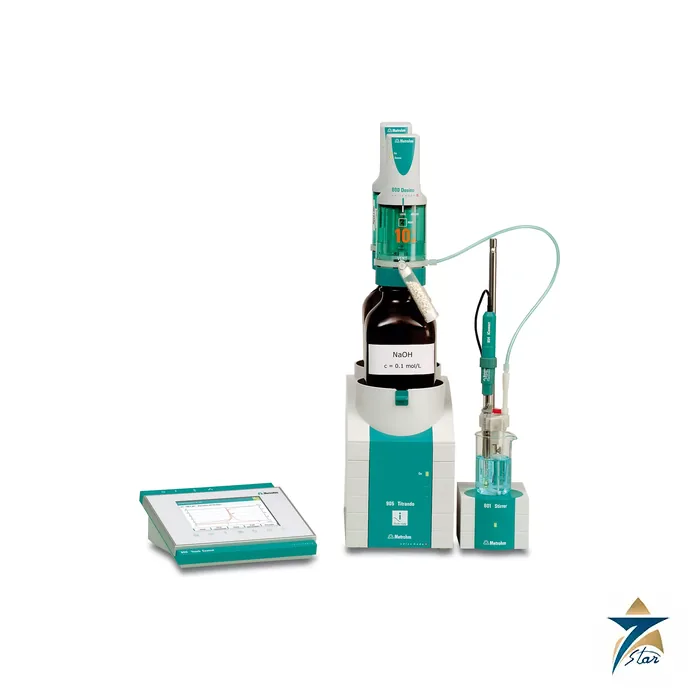

Metrohm 905 Titrando Potentiometric Titrator

Overview

Metrohm 905 Titrando is a high-end potentiometric titrator designed for laboratories that need more than a single-purpose benchtop unit. Metrohm lists it as a titrator for use with intelligent iTrode electrodes, with one galvanically isolated measuring interface and up to four dosing systems of the 800 Dosino type. It can run as a stand-alone titrator with the 900 Touch Control, or be controlled from a PC with Metrohm OMNIS software or tiamo software, and the same Titrando platform can grow from a single titration cell to a fully automated solution in a laboratory network.

For analytical laboratories in Oman and the wider GCC, that modularity is valuable. A refinery quality laboratory, a power and desalination chemistry laboratory and a pharmaceutical quality-control laboratory can all start with a basic Metrohm 905 Titrando and add dosing units, stirrers, measuring modules and a sample changer as their method list grows. Seven Star LLC supplies the Metrohm 905 Titrando with engineering support in Muscat, and it complements the process instruments already on this website, including the Metrohm 2035 process analyzer, the Sitelab UVF-Trilogy TPH oil analyzer and the Hach BioTector B3500ul online TOC analyzer.

Titration and Dosing Principle

In potentiometric titration the Metrohm 905 Titrando adds a titrant of known concentration to the sample and follows the electrode potential. The equivalence point appears as an inflection in the curve, and the titrator calculates the result from the volume of titrant consumed. Because the endpoint is found electrically, the method works for coloured and turbid samples, and it can be validated and documented in a way that colour indicators cannot.

The Metrohm 905 Titrando evaluates titrations in dynamic (DET), monotonic (MET) and set endpoint (SET) modes, measures concentration with ion-selective electrodes, and offers dosing functions with monitoring and Liquid Handling. Metrohm notes that the Karl Fischer and STAT modes belong to the 906 and 907 Titrando models, so the Metrohm 905 Titrando is the right choice when the workload is potentiometric titration and monitored dosing rather than water determination. Dosing itself is performed by the patented Dosino, which screws directly onto a standard reagent bottle and therefore needs no extra bench space.

Engineering Design of the Metrohm 905 Titrando

The Metrohm 905 Titrando is built from a compact base unit that connects to its peripherals through the Metrohm Serial Bus. It offers four MSB connectors for additional stirrers or dosing systems, one galvanically isolated measuring interface for intelligent iTrodes, and a USB connector. The Dosino drive reads the data chip in each 807 Dosing Unit, so the titrator knows the reagent, titer, last titer determination and shelf-life data and can run a plausibility check against the selected method. Dosing units come in 2, 5, 10, 20 and 50 mL sizes with ceramic valves, glass cylinders for titrants and ETFE for auxiliary solutions and aggressive media, and the resolution is 10,000 steps per cylinder volume.

The Metrohm 905 Titrando platform is expandable. According to the Metrohm brochure the basic unit can be upgraded to a system that controls up to 12 burets with six galvanically separated measuring interfaces, and an 867 pH Module or 856 Conductivity Module can be attached as additional measuring modules. Four 801 Magnetic Stirrers or four 802 Rod Stirrers, together with an 804 Titration Stand, can be connected, and an 814 USB Sample Processor, 815 Robotic USB Sample Processor XL or 898 XYZ Sample Changer connects through the USB port. Pt1000 or NTC temperature sensors are supported, and two USB slave ports plus an optional RS-232 interface link balances, printers, barcode readers and PCs.

Key Features

The following features define what the Metrohm 905 Titrando offers to a demanding titration laboratory:

• One galvanically isolated measuring interface for use with iTrodes through the 854 iConnect, with conventional analog sensors still supported.
• Up to four 800 Dosino drives for contact-free reagent handling, with dosing units that carry a data chip for titer and shelf-life tracking.
• DET, MET and SET titration modes plus ion-selective concentration measurement and monitored dosing functions.
• Four MSB connectors for additional stirrers and dosing systems, and expansion to six measuring interfaces and 12 burets.
• Operation with the 900 Touch Control, which offers favourite icons, a real-time curve display and direct access to the Intranet.
• Control from a PC with OMNIS or tiamo software, including a client-server database and parallel titration with two cells in tiamo.
• GLP-compliant electrode test and compliance with GMP, GLP and FDA 21 CFR Part 11 requirements when required.
• Sample changer control for unattended and overnight operation through the USB port.

Industrial Applications

The Metrohm 905 Titrando is used wherever accurate, documented titration is required. In the energy sector that includes acid and base numbers of oils, chloride and alkalinity of process and produced water, and the verification of chemicals used in treatment programmes. In power and desalination plants it supports the determination of alkalinity, hardness and chloride in feed, boiler and product water, and in petrochemical and fertiliser laboratories it supports assay and impurity determinations on reagents and intermediates. Laboratories at Sohar, Duqm and Salalah can start the Metrohm 905 Titrando with one cell and extend the system as their workload grows.

The audit trail and electronic signature functions available with the 900 Touch Control and the tiamo software suit pharmaceutical, food and contract-testing laboratories in Muscat that must meet GMP and FDA expectations. Seven Star LLC supplies the Metrohm 905 Titrando with the Dosinos, dosing units, stirrers, electrodes and software that a particular method needs, so that the laboratory receives a coordinated package rather than a list of unrelated parts.

Technical Specifications

The table below lists the published data for the Metrohm 905 Titrando as shown in the Metrohm brochure for the 904, 905, 906 and 907 Titrando family and in the scope-of-delivery sheet for article 2.905.0010.

How to Order

To request a formal quotation for the Metrohm 905 Titrando, tell us the number of measuring interfaces, the dosing unit sizes, the stirrers and the control software you need, and attach your list of titration methods if you can. Seven Star LLC supplies Metrohm titration equipment to customers in Oman and the GCC, with engineering support from our instrumentation division in Muscat, and the brochure attached to this page for your technical review.
