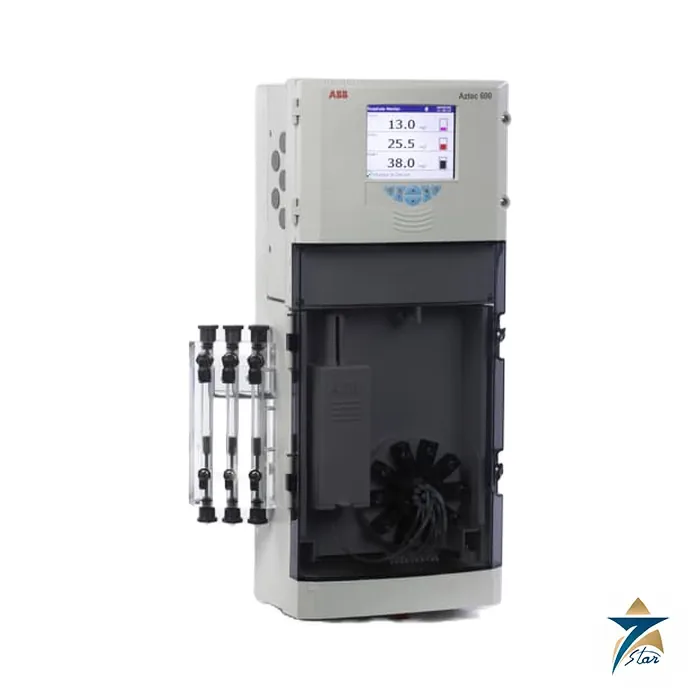

ABB Phosphate analyzer Aztec AW636
Overview
The ABB Aztec AW636 Phosphate Analyzer is a continuous, online instrument for monitoring phosphate concentration in potable water treatment and municipal wastewater effluent, where accurate phosphate measurement supports both nutrient removal compliance and coagulant dosing control. Built on ABB’s compact Aztec 600 analyzer platform, the AW636 uses the phosphomolybdenum blue colorimetric method to deliver stable, repeatable readings with automatic two-point calibration and self-cleaning fluidics that keep maintenance demands low.
Backed by genuine manufacturer documentation, Seven Star LLC proudly supplies the Aztec AW636 Phosphate Analyzer to municipal water authorities and industrial wastewater treatment operators across the Sultanate of Oman and the wider Gulf region. Every unit is supplied on request with manufacturer documentation, regional technical support, and access to original ABB reagents and spare parts – with lead time and availability confirmed at quotation.
Measurement Principle
The AW636 determines phosphate concentration using the phosphomolybdenum blue chemical method: the sample reacts with reagent to form a blue complex whose absorbance is directly proportional to phosphate concentration, measured across a range of 0 to 50 ppm PO₄ (0 to 50 mg/L). Automatic background color compensation corrects for sample turbidity and natural color that would otherwise bias a simple colorimetric reading, while automatic sample dilution extends the effective measurement range without requiring the operator to reprogram the instrument for a stronger effluent stream.
In practical terms this delivers an accuracy of ±5% of reading or ±0.005 ppm (whichever is greater), repeatability of ±5% of reading or ±0.030 ppm, and resolution down to 0.001 ppm (1 ppb). Measurement frequency is user-selectable from 1 to 4 readings per hour, and the self-cleaning measurement system combined with automatic two-point calibration keeps the analyzer holding its accuracy between scheduled service visits without a dedicated on-site chemist.
Correct sample conditioning underpins that stability: the AW636 requires a continuous sample flow of 200 to 500 mL/min at up to 5 psi and 1 to 40°C (32 to 104°F), with prefiltration recommended where particulates exceed 100 µm to protect the sample lines and colorimetric measurement cell from fouling. Reagent consumption is similarly modest, at 0.75 mL of each reagent per measurement, so a single reagent set lasts roughly 240 days at one reading per hour, tapering to about 60 days at the maximum four readings per hour – giving plant chemists a predictable replenishment schedule regardless of how frequently the ABB Aztec AW636 is sampling.
Engineering Design of the ABB Aztec AW636
The Aztec AW636 shares its compact wall or panel-mounted chassis with the rest of ABB’s Aztec 600 analyzer family, with the phosphate-specific reagent dosing and colorimetric measurement cell fitted for this application. The instrument can analyze up to three separate sample streams from a single chassis, letting one analyzer sequence between influent, post-treatment, and final effluent sample points on a municipal wastewater plant, or between raw and treated water on a potable water phosphate-removal process.
A color touchscreen display with intuitive, menu-driven software provides real-time data visualization and straightforward calibration and diagnostics directly at the panel, while low reagent consumption and a simplified fluidics system keep running costs down over the life of the instrument. Communication via Modbus or Profibus allows direct integration with SCADA or DCS systems, and onboard data logging with graphical trending and a full audit trail supports both operational review and regulatory compliance reporting.
The analyzer accepts either 100 to 240 V AC (50/60 Hz ±10%) or an optional 18 to 36 V DC supply, drawing a maximum of 75 W on AC or 100 W on DC, and its enclosure is rated IP31 for indoor installation, measuring 653 mm high by 366 mm wide by 183 mm deep with the door closed and weighing approximately 15 kg. Operating ambient range extends from 5 to 45°C at up to 95% relative humidity, non-condensing, while six isolated, user-programmable 0–20 mA current outputs and a bank of stop, attention, failure, calibration, and user-assignable alarm relays give control-room integrators flexible options beyond the standard Modbus and Profibus links. The Aztec AW636 also carries cULus safety approval, CE marking to the EMC and Low Voltage Directives, and compliance with EN 61010-1 and IEC 61326, supporting straightforward acceptance into GCC utility and industrial safety documentation packages.
Key Features
The Aztec AW636 combines proven colorimetric chemistry with automation built for treatment plant reliability, including:
- Continuous phosphate measurement across a 0 to 50 ppm PO₄ range using the phosphomolybdenum blue method.
- Automatic background color compensation, correcting readings for sample turbidity and natural color.
- Automatic sample dilution to extend measurement range without manual reprogramming.
- Analysis of up to three independent sample streams from a single analyzer chassis.
- Self-cleaning measurement system and automatic two-point calibration, minimizing routine maintenance.
- Color touchscreen display with intuitive, menu-driven navigation for setup and diagnostics.
- Data logging with graphical process trending and a full audit trail for compliance reporting.
- Modbus and Profibus communication for direct integration into SCADA and DCS control systems.
Industrial Applications
Phosphate control is central to two distinct treatment goals that Oman and the GCC’s water authorities manage simultaneously: nutrient removal to prevent algae growth in receiving waters, and coagulant dosing optimization in potable water treatment. In municipal wastewater plants, the Aztec AW636 monitors phosphate through biological or chemical removal stages, helping operators verify that discharge limits are consistently met and that chemical dosing for phosphate precipitation is neither under- nor over-applied. In potable water treatment, the same colorimetric principle supports monitoring of residual phosphate used in corrosion control dosing programs across distribution networks.
Working closely with plant engineers in the region, Seven Star LLC distributes the Aztec AW636 Phosphate Analyzer to municipal water and wastewater authorities, industrial effluent treatment operators, and environmental monitoring stations across Muscat, Sohar, and Salalah, as well as the wider Gulf region. Its multi-stream capability and low reagent consumption make it a cost-effective fit for both a single-process installation and a larger plant tracking phosphate across several treatment stages.
Technical Specifications
Key technical specifications for the ABB Aztec AW636 Phosphate Analyzer are summarized below.
| Parameter | Specification |
|---|---|
| Model | ABB Aztec AW636 Phosphate Analyzer |
| Measuring Principle | Phosphomolybdenum blue colorimetric method |
| Measuring Range | 0 to 50 ppm PO₄ (0 to 50 mg/L) |
| Accuracy | ±5% of reading or ±0.005 ppm (whichever is greater) |
| Repeatability | ±5% of reading or ±0.030 ppm |
| Resolution | 0.001 ppm / 1 ppb |
| Measurement Frequency | 1 to 4 readings per hour, user-selectable |
| Calibration | 2-point, automatic |
| Sample Streams | Up to 3 per analyzer |
| Communication | Modbus, Profibus |
| Data Storage | Data logging, graphical trending, full audit trail |
| Sample Flow Rate | 200 to 500 mL/min, continuous |
| Sample Pressure/Temperature | Max. 5 psi; 1 to 40°C (32 to 104°F) |
| Reagent Consumption | 0.75 mL per reagent per measurement (60–240 days per set) |
| Power Supply | 100–240 VAC 50/60 Hz or 18–36 VDC; 75–100 W max. |
| Enclosure Rating / Weight | IP31; 653 x 366 x 183 mm; approx. 15 kg |
| Ambient Operating Range | 5 to 45°C, up to 95% RH non-condensing |
| Certifications | cULus, CE (EMC/LVD), EN 61010-1, IEC 61326 |
Request a Quote for ABB Phosphate analyzer Aztec AW636
Seven Star LLC welcomes formal RFQs for the ABB Aztec AW636 Phosphate Analyzer from municipal water and wastewater authorities, industrial treatment operators, and engineering consultancies across Oman and the GCC. With fast quotation turnaround and technical support, we supply on request with lead time confirmed at quotation, provide the full technical datasheet on request, and can connect your team directly with our instrumentation division for application sizing and technical support. Contact Seven Star LLC today to request a formal quotation or technical consultation for your phosphate monitoring requirements.
