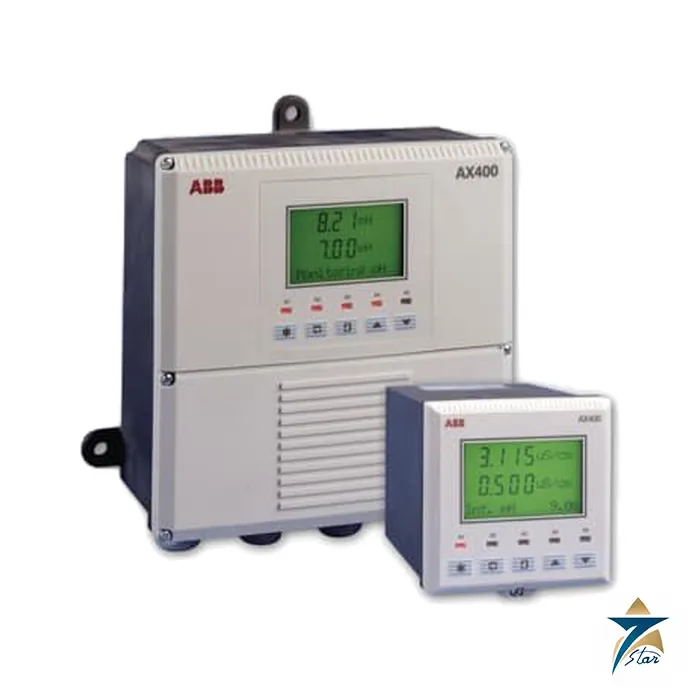

ABB AX410 Conductivity Transmitter
Overview
The ABB AX410 is a conductivity transmitter from ABB’s AX400 series, purpose-built for accurate low-level conductivity and resistivity measurement in high-purity water applications. It accepts both contacting and inductive conductivity sensors, and covers conductivity up to 10,000 µS/cm, resistivity up to 18.2 MΩ·cm, or total dissolved solids up to 8,000 ppm – a range that spans everything from ultrapure semiconductor rinse water to more conductive industrial process streams.
Seven Star LLC supplies the ABB AX410 to industrial and utility operators across Oman and the wider GCC as an experienced supply partner for genuine ABB instrumentation. Every unit is supplied on request with manufacturer documentation, and supported locally with sensor-pairing and configuration guidance for each customer’s specific water-quality application.
Operating Principle
The AX410 pairs with a 2-electrode contacting cell (such as the AC221) or an inductive sensor, selecting the sensing technology best suited to the process fluid’s conductivity range and fouling tendency. It applies automatic temperature compensation via a built-in or sensor-mounted RTD, keeping readings referenced to a standard temperature so that comparisons remain meaningful even as process temperature drifts throughout a shift.
Integral P, PI, and PID control functions allow the AX410 to directly drive dosing pumps or control valves without an external controller, closing the loop between measurement and corrective action for applications such as demineralizer regeneration or chemical dosing. Configurable current outputs and relay contacts provide the flexibility to route both measurement data and control signals to multiple destinations simultaneously.
Engineering Design of the ABB AX410
The AX410 offers 2–4 configurable current outputs and 3–5 relay contacts, giving engineers the flexibility to configure the transmitter for straightforward monitoring or for more complex multi-setpoint control schemes. Power options include 85–265V AC or 12–30V DC, accommodating a wide range of plant electrical infrastructures without requiring dedicated power conditioning.
The transmitter is housed in an IP66/NEMA 4X enclosure suitable for panel, wall, or pipe mounting, protecting the electronics from dust and washdown in demanding process areas. Communication options include standard 4–20 mA analog output alongside PROFIBUS DP digital communication, allowing integration into both legacy analog control systems and modern digital fieldbus architectures.
Key Features
- Low-level conductivity and resistivity measurement for high-purity water
- Compatible with both contacting and inductive conductivity sensors
- Automatic temperature compensation via built-in or sensor-mounted RTD
- Integral P, PI, and PID control for direct dosing pump or valve control
- 2–4 configurable current outputs and 3–5 relay contacts
- 85–265V AC or 12–30V DC power flexibility
- IP66/NEMA 4X enclosure for panel, wall, or pipe mounting
- 4–20 mA and PROFIBUS DP communication
Industrial Applications
The AX410 is widely used for low-conductivity monitoring in demineralization and reverse osmosis plants, boiler feedwater and condensate systems in power generation, semiconductor ultrapure water loops, and pharmaceutical and biomedical water systems – applications where small conductivity changes signal ion contamination or salt carryover long before they would be visible through other measurements.
Across Oman’s power generation, desalination, and semiconductor-adjacent industrial sectors, and throughout the wider GCC, Seven Star LLC supplies the AX410 as a trusted supplier of ABB products to facilities in Muscat, Sohar, and Salalah that require dependable, factory-genuine high-purity water instrumentation with full local support.
Technical Specifications
| Model | ABB AX410 |
| Measurement Range | Up to 10,000 µS/cm conductivity / 18.2 MΩ·cm resistivity / 8,000 ppm TDS |
| Sensor Compatibility | Contacting (e.g. AC221) and inductive conductivity sensors |
| Temperature Compensation | Automatic, via built-in or sensor-mounted RTD |
| Control Functions | Integral P, PI, PID |
| Outputs | 2–4 current outputs, 3–5 relay contacts |
| Power Supply | 85–265V AC or 12–30V DC |
| Enclosure | IP66/NEMA 4X |
| Communication | 4–20 mA, PROFIBUS DP |
Request a Quote for ABB AX410
Contact Seven Star LLC for a quotation on the ABB AX410 conductivity transmitter, with manufacturer documentation and local support across Oman and the GCC.
Getting Reliable Readings in High-Purity Water
The AX410 is at its best at the low end of the scale, where the water is so clean that small installation mistakes show up as large errors. At resistivity close to 18.2 MΩ·cm, a few points need attention:
- Keep the sample sealed – pure water picks up carbon dioxide from the air within seconds, and dissolved CO2 raises conductivity. Measure in-line or in a closed flow cell, never in an open cup or overflow.
- Remove air – install the cell so that bubbles cannot collect between the electrodes, for example in a vertical upward-flow section.
- Choose a low cell constant – for ultrapure and polished water a low-constant cell gives a stronger signal; save higher constants for more conductive streams.
- Use the right compensation – in pure water the temperature effect is much stronger and non-linear, so select a compensation curve intended for ultrapure water rather than a fixed linear coefficient.
- Keep the temperature sensor close – the RTD must see the same temperature as the electrodes, or compensation adds error.
Commissioning the AX410
- Enter the cell constant from the cell certificate, not a nominal value.
- Select the display unit (µS/cm, MΩ·cm or ppm TDS) that operators use in the plant.
- Scale each current output and assign alarm relays, for example a high-conductivity alarm on a mixed-bed outlet.
- If the integral controller is used, start with conservative P/PI settings and tune on the live process.
- Check the reading against a calibrated reference instrument in the same sample line; buffer-solution calibration is not suitable at these low levels.
Maintenance and Troubleshooting
- Reading drifts slowly upward – check for a leak of air into the sample line or a sample flow that is too low.
- Unstable reading – look for bubbles, ground loops or a damaged cable screen.
- Reading higher than the reference – clean the electrodes, and confirm the cell constant and the compensation setting.
High-Purity Water in Oman and the GCC
In the region, AX410 duty is typical at the outlet of mixed-bed polishers and on demineralised make-up for boilers in combined-cycle and IWPP plants, and in pharmaceutical purified-water loops. On boiler water, a rise of a fraction of a µS/cm at the polisher outlet gives the first warning that a resin bed is exhausted.
Sourcing from Seven Star LLC
Tell us the sensor type and cell constant, the power supply and the outputs you need. We confirm the configuration and quote the lead time.
