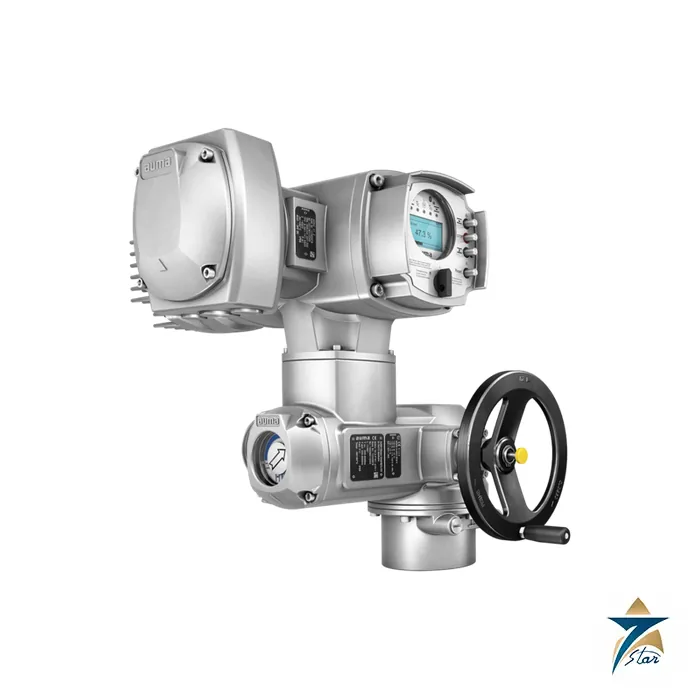

AUMA SQRVEx Variable-Speed Explosion-Proof Modulating Actuator
Overview
The AUMA SQRVEx is the top-of-range hazardous-area part-turn actuator in the AUMA SQ family. It combines three properties that rarely appear together: certification for potentially explosive atmospheres, a continuously adjustable operating time and a rating for modulating duty. The SQRVEx .2 part-turn actuators are designed for modulating duty, class C, at S4 – 25 %, with up to 1,500 starts per hour. The torque range runs from 150 Nm to 2,400 Nm, of which 75 Nm to 1,200 Nm is available as modulating torque, and the operating time for 90 degrees can be set between 4 s and 360 s.
In Oman and the GCC, Seven Star LLC proudly supplies the AUMA SQRVEx to petrochemical, oil and gas and power customers in the Sultanate of Oman and across the GCC. Control valves in classified areas near Sohar, Salalah and Muscat often face two conflicting demands: slow, smooth regulation during normal running and a rapid response during upsets. The SQRVEx addresses both with one actuator and one set of certified controls, and Seven Star LLC assists with sizing and selection to match the actuator to the valve.
Operating Principle
The AUMA SQRVEx is a motor, gear stage and splined output shaft in a flameproof, increased-safety construction, driven by ACVExC controls that regulate the motor speed electronically. Because speed is a software parameter, the actuator can run slowly while it follows a setpoint and faster when a safety signal arrives. AUMA lists EMERGENCY behaviour and safety behaviour with separate specified operating times, and an operating time profile that avoids pressure surge, so the stroke is shaped by the controls rather than by the physical limits of the gearbox.
Modulating duty means the drive follows a position setpoint, stops, holds and corrects again, many times per hour. Within the explosion-protection concept the AUMA SQRVEx is built for this duty, and the controls add a process controller (PID), fieldbus control with programmable behaviour in case of emergency or communication loss, operation data logging and a Bluetooth interface to a notebook and Android tablet. The combination allows closed-loop regulation to be moved from a separate controller into the actuator itself where appropriate.
Engineering Design of the AUMA SQRVEx
The AUMA SQRVEx is built on the SQ .2 platform with limit and torque sensing, mains connection in 1-phase and 3-phase versions, handwheel for manual operation and a mechanical position indicator. The electrical connection uses the AUMA plug/socket connector, with terminals as an option, and cable entries are available in different versions. Valve attachments follow DIN and ISO standards, the swing angle is 75 to 105 degrees, enclosure protection is IP68 and corrosion protection is KS. Ambient temperature is −30 °C to +40 °C or +60 °C according to the certified configuration.
Options include intermediate position switches, switches in tandem version, a position transmitter and a magnetic limit and torque transmitter. The controls provide programmable potential-free output contacts for status signalling. Because SQVEx and SQRVEx share their dimensions and controls, the dimension sheet linked on this page covers both ranges from size 05.2 to 14.2 with ACVExC 01.2 controls, which simplifies engineering when a plant uses both open-close and modulating variable-speed actuators.
Key Features
The AUMA SQRVEx brings variable speed and modulating duty into the hazardous area. Its principal features are listed below.
- Rated for modulating duty, class C, S4 – 25 %, with up to 1,500 starts per hour.
- Torque range of 150 Nm to 2,400 Nm and a modulating torque range of 75 Nm to 1,200 Nm.
- Variable operating time for 90 degrees from 4 s to 360 s, adjustable to suit process and pipeline.
- Certified for potentially explosive atmospheres under ATEX, FM and IECEx.
- Operating time profile for avoiding pressure surge and soft start and stop for gentle valve operation.
- Separately specified operating times for EMERGENCY behaviour and safety behaviour.
- Integral process controller (PID), fieldbus control and programmable behaviour on communication loss.
- IP68 enclosure protection and KS corrosion protection with a mechanical position indicator and handwheel.
Industrial Applications
The AUMA SQRVEx suits flow, pressure and level control in classified areas where valve movement itself must be managed. Typical uses include control valves on gas processing and compression trains, regulation of product transfer at terminals and tank farms, cooling water and utility control in refineries, and positioning of large butterfly valves in fuel handling at power stations. In each case, the variable operating time allows gentle correction in normal operation, while the separate emergency time allows a rapid move to the safe position without a second actuator.
In Oman and the GCC, Seven Star LLC supplies the AUMA SQRVEx across the Sultanate of Oman and the GCC with approvals documentation, dimension sheets and application support. Projects that use the SQVEx for isolation and the SQRVEx for regulation benefit from a uniform operating concept, common controls and consistent spare parts, which reduces training effort for operations and maintenance staff. For projects that combine the AUMA SQRVEx with other drives or controls, Seven Star LLC also supplies the AUMA SQVEx, the AUMA SQREx and the AUMA SQRV.
Technical Specifications
The following table lists the key data published by AUMA for the AUMA SQRVEx .2 type range. Always check the temperature class and approvals marking for the delivered configuration.
| Parameter | Specification |
|---|---|
| Model | SQRVEx .2 type range (SQRVEx 05.2 – SQRVEx 14.2) |
| Duty type | Modulating duty, class C, S4 – 25 % |
| Torque range | 150 Nm – 2,400 Nm |
| Modulating torque range | 75 Nm – 1,200 Nm |
| Number of starts (max.) | 1,500 c/h |
| Operating time for 90° | 4 s – 360 s (variable) |
| Swing angle | 75° – 105° |
| Enclosure protection | IP68 |
| Corrosion protection | KS |
| Ambient temperature | −30 °C to +40/+60 °C |
| ATEX explosion protection | II 2G Ex db eb IIC (IIB) T4 (T3); II 2G Ex db IIC (IIB) T4 (T3) |
| FM explosion protection (listed on AUMA product page; not on the data sheet) | FM Class I Div 1 Groups (B), C, D T4 (T3C); Class II Div 1 Groups E, F, G T4 (T3C); Class III Div 1 T4 (T3) |
| IECEx | Ex db eb IIC (IIB) T4 (T3); Ex db IIC (IIB) T4 (T3) |
| Mains connection | 1-phase and 3-phase |
Request a Quote for AUMA SQRVEx
To request a quotation for the AUMA SQRVEx, send us the valve data, torque, required stroke times, hazardous-area classification and control interface. Seven Star LLC will return a formal RFQ response with stock and lead-time information and the dimension sheet linked on this page. In Oman and the GCC, we supply the certified actuators on request, and our instrumentation division supports documentation and commissioning questions.
- Datasheet AUMA SQVEx 05.2 - SQRVEx 14.2 with ACVExC 01.2 Dimension Sheet Download
AUMA actuator and gearbox types
SA multi-turn actuators handle open-close duty on gate and globe valves, and SAR is the modulating version; the listing includes the SA 07.2, SA 10.2 and SA 25.1. SAEx and SAREx are the explosion-proof equivalents. Part-turn duty on ball and butterfly valves is covered by SQ and the modulating SQR, or by an SA actuator combined with a GS part-turn gearbox. LE linear thrust units convert multi-turn output to thrust, and GHT multi-turn gearboxes extend the torque range up to 120,000 Nm. PROFOX is the compact actuator line. Special items include the seawater-resistant SGM and SGMR part-turn actuators with bronze housings, the SVC and SVCR globe valve actuators and the FQM fail-safe unit. Integral controls come as AM or AC versions.Where AUMA electric actuators are used
AUMA actuators are found in water, power, oil and gas, marine and general industry. In practice that means isolation and control valves in water treatment and pumping stations, power plant steam and cooling systems, tank farms and pipelines, and sluice gates and dampers.Ordering AUMA actuators and parts: what we need
For a replacement send photos of the actuator, motor and controls nameplates: type, order number, serial number and wiring diagram number. For a new actuator we need:- valve type, required torque or thrust, and turns or stroke
- valve mounting flange and stem or shaft details
- output speed, duty (open-close or modulating)
- supply voltage and frequency, control signals or fieldbus
- enclosure protection, ambient temperature, Ex requirement
