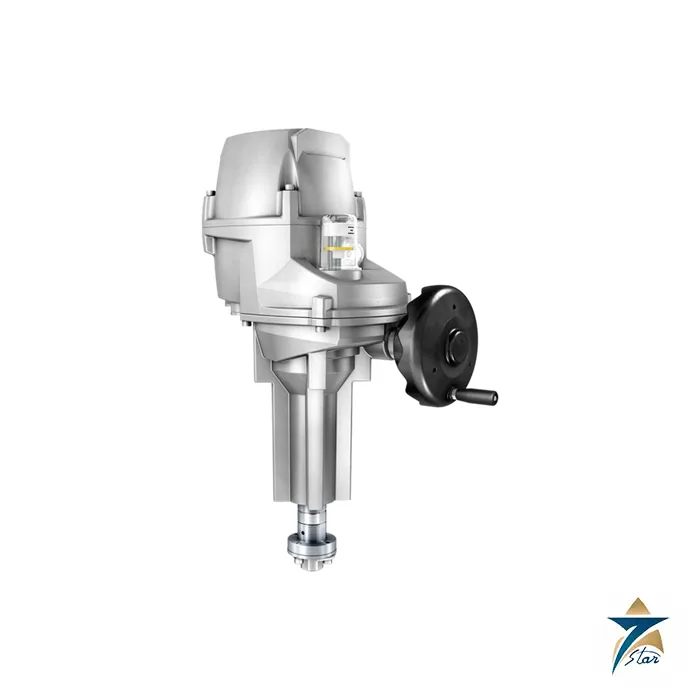

AUMA PROFOX-L Compact Smart Linear Actuator

Overview

AUMA PROFOX-L is a compact smart linear actuator for globe valves and other linear-stroke valves, delivering thrusts from 0.8 kN up to 18 kN with variable speed and high control accuracy. It is built into a rugged metal housing for harsh service conditions and combines open-close and modulating duty, a choice of communication interfaces and configuration and diagnostic functions that normally require a much larger actuator. The AUMA PROFOX-L belongs to the PROFOX family of compact actuators from AUMA Riester and is offered in six sizes from PF-L2 to PF-L18, so a single platform covers small control valves up to medium-duty globe valves.

In Oman and the GCC, Seven Star LLC supplies the AUMA PROFOX-L to district-cooling, HVAC, water treatment, power and process customers across the Sultanate of Oman and the wider GCC. Because the actuator is configured at order for speed, supply voltage, interface and coupling, our Muscat instrumentation team helps you specify the right variant so that the actuator arrives ready to commission through Bluetooth.

Working Principle of the AUMA PROFOX-L

The AUMA PROFOX-L converts the rotation of a brushless, variable-speed motor into linear thrust through an integrated spindle drive, which moves the valve stem with the force and speed required by the process. Soft start and soft stop protect the valve seat, and a spring-applied brake holds the position at standstill. Operating speeds from 0.1 to 2.5 mm per second can be selected in 13 levels at the time of order, depending on size, and fine-tuned in 1 % steps via Bluetooth after installation. Limit switching is via Hall sensors, and thrust switching uses electronic current measurement with tripping forces that are infinitely adjustable through the Bluetooth interface.

For modulating duty the actuator operates in class C, intermittent duty S4-50 % in accordance with ISO 22153, with up to 1,200 starts per hour, and for open-close duty in classes A and B at short-time duty S2-15 min. A “torque bypass” function can raise the thrust to 127 % for an adjustable period, helping to unseat blocked valves. Built-in diagnostics monitor temperature, key indicators for electronics, brake, gearbox and seals, and changes in the thrust required by the valve, with warnings passed to the DCS through digital outputs or fieldbus.

Engineering Design of the AUMA PROFOX-L

The six sizes PF-L2, L3, L6, L10, L15 and L18 offer maximum thrusts of 2, 3.5, 6, 10, 15 and 18 kN with minimum tripping forces of 0.8 to 7.2 kN, modulating thrusts of 1 to 9 kN and stem strokes of 60 mm (PF-L2 to L6) or 80 mm (PF-L10 to L18). Valve attachment follows ISO 5210 with flange F05 or F07, with an attachment frame for up to four pillars as an option, and couplings with internal threads from M8 to M20 are available. Weights are about 8 kg for the PF-L2 to L6 and 10 kg for the larger sizes.

The metal housing is rated for enclosure protection IP67, with IP68 as an option, and AUMA states corrosion protection of C5-M or C5-I for harsh environments. The ambient temperature range is –30 °C to +70 °C, with –40 °C to +60 °C as an option, and an optional heating element protects against condensation. The standard power supply is 100 to 240 V single-phase AC, with 24 V DC, 180 to 300 V DC and 380 to 480 V three-phase AC options, and standby consumption is below 3 W. Cable entries are three M20 x 1.5 threads with spring clamp terminals inside.

Key Features

The following characteristics define the AUMA PROFOX-L compact linear actuator:

• Thrusts from 0.8 kN to 18 kN in six sizes cover a wide spread of small and medium globe and control valves.
• A variable-speed brushless motor with 13 selectable speed levels gives precise control accuracy and gentle valve seating.
• Open-close and modulating duty are supported in one actuator, with up to 1,200 starts per hour in class C.
• Bluetooth commissioning through the AUMA Assistant App, the RSTX 100 remote control or AUMA CDT software simplifies setup.
• Profibus, Modbus RTU and Profinet interfaces provide easy integration into the DCS, with a position transmitter available.
• Built-in actuator and valve diagnostics support predictive maintenance by tracking thrust profiles and component indicators.
• A wide-range power supply unit accepts 100 to 240 V AC as standard, with DC and three-phase options.
• A rugged metal housing with IP67 or IP68 protection and C5-M/C5-I corrosion protection withstands harsh service conditions.

Industrial Applications

The AUMA PROFOX-L is used wherever a small or medium linear valve needs an intelligent actuator: steam and hot-water control valves in district-cooling and heating plants, chilled-water valves in large HVAC systems, boiler and process control valves in power and chemical plants, and dosing and treatment valves in water and wastewater works. Its low standby consumption, wide supply range and remote diagnostics suit unattended installations and energy-conscious buildings.

In the Sultanate of Oman the actuator is relevant to commercial towers and hospitality complexes in Muscat, the cooling and utility networks of the Sohar and Salalah economic zones and the water and wastewater plants of the regional utilities. In Oman and the GCC, Seven Star LLC distributes the AUMA PROFOX-L with support for selecting thrust, stroke, speed and interface, and can supply it alongside other AUMA actuators and controls for projects that need a unified supplier. Related AUMA products worth comparing with the AUMA PROFOX-L include the AUMA LE linear thrust actuator, the AUMA SVC-SVCR and the AUMA PROFOX-M, which cover neighbouring duty types and sizes.

Technical Specifications

The table summarises the main data of the AUMA PROFOX-L from the AUMA product page and the technical data sheet PR01113 for PF-L2 to PF-L18.

Request a Quote for AUMA PROFOX-L

To request a quotation for the AUMA PROFOX-L, send Seven Star LLC the valve type, required thrust and stroke, operating speed, supply voltage, control signal or fieldbus interface and any ambient requirements. Our instrumentation division will configure the linear actuator with you and return an RFQ response, and the PROFOX-L datasheet can be downloaded from this page. In Oman and the GCC, we supply genuine product with warranty.
