Systech ZR810 Zirconia Oxygen Analyzer for Argon and Hydrogen

Overview

The Systech ZR810 Zirconia Oxygen Analyzer, configured here for oxygen measurement in argon plus hydrogen mixtures with hydrogen content up to 3%, is a panel-mounted, continuous process oxygen analyzer built on Systech’s precision zirconium dioxide (ZrO2) electrochemical sensor platform. This configuration extends across three switchable trace ranges — 0–10 ppm, 0–100 ppm, and 0–1000 ppm O2 in Ar — making it suited to shielding-gas purity verification and reducing-atmosphere monitoring where argon-hydrogen blends are used to protect sensitive processes from oxidation. Seven Star LLC supplies the Systech ZR810 to welding facilities, heat-treatment operations, and specialty gas plants across Oman and the GCC that depend on tightly controlled argon-hydrogen shielding gas quality.

Argon-hydrogen shielding gas blends are chosen specifically because the reducing atmosphere they create actively resists oxidation during welding, brazing, and metal joining processes. Any oxygen contamination in that blend works directly against its purpose, risking weld porosity, discoloration, and loss of joint integrity in applications where metallurgical quality cannot be compromised. Because the hydrogen fraction in this gas mixture is flammable at the 3% level typically used, oxygen analyzers intended for Ar+H2 service must be validated for safe operation with that specific gas composition; suitability of a heated zirconia cell for hydrogen-bearing gas must be confirmed with the manufacturer before ordering.

Operating Principle

The Systech ZR810 uses a high-purity, high-density stabilized zirconia ceramic sensing cell operating at high temperature, where the zirconia electrolyte becomes conductive to oxygen ions. A reference gas on one side of the cell and the sample argon-hydrogen stream on the other create an oxygen partial-pressure differential across the cell; this differential drives oxygen ion migration through the zirconia lattice, generating a DC voltage proportional to the oxygen concentration ratio. A high-speed microprocessor linearizes this logarithmic cell output into a direct, stable digital reading on the analyzer’s local indicator, with a 4–20 mA output available for integration into a plant control or monitoring system. The ZR800 platform this ZR810 configuration is built on delivers a response time of 90% of a step change within approximately 5 seconds, giving operators near-immediate warning of oxygen ingress into a shielding gas supply.

Across the ZR800 platform on which the Systech ZR810 is built, the zirconia cell is autoranging from 0.1 ppm through to 100% oxygen, and the measured value is presented on a four-digit high-visibility LED display that changes range automatically as the sample composition moves. Calibration is carried out either against ambient air, using the stable 20.9% oxygen content of atmospheric air as a working reference, or against a traceable certified calibration gas where a formal quality record is required for audit. Published performance for the series is a stability of better than ±2% of reading per month and a repeatability of better than ±2% of reading, which is what allows a single air calibration to hold between scheduled service visits rather than obliging operators to run daily span checks on a production shielding-gas line. In trace ppm shielding-gas duty the Systech ZR810 is normally air-calibrated on a fixed schedule and verified against a certified span gas periodically.

Engineering Design

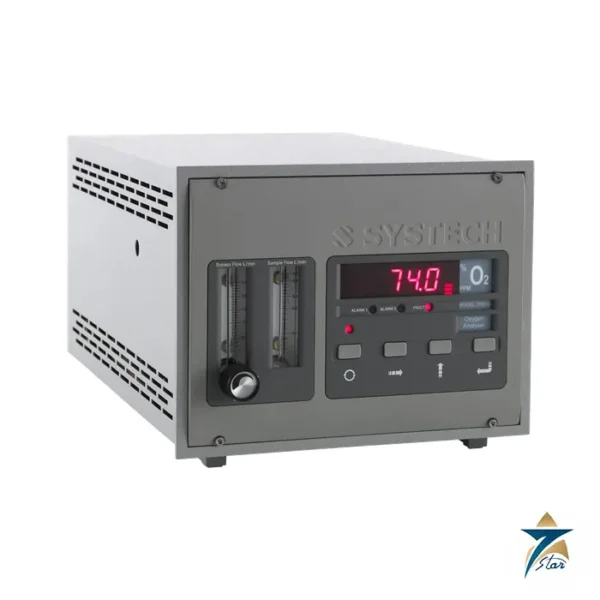

Built for continuous industrial duty, the Systech ZR810 is offered in panel-mount, bench-top, and wall-mount configurations, with this unit specified as panel-mounted for integration into a control cabinet or local instrument panel alongside a mains power supply specified at quotation. Because this configuration is intended for a hydrogen-bearing gas stream, the sensor and gas-handling path are specified for safe, stable operation with Ar+H2 blends up to 3% hydrogen, distinguishing it from a standard inert-gas ZR810 configuration. The instrument’s microprocessor-controlled menu interface allows operators to configure alarm setpoints, calibration intervals, and output scaling to match a specific shielding-gas monitoring point without specialist analytical training, and the zirconia sensor itself is a low-maintenance, durable component designed for long service life under continuous exposure to reducing gas atmospheres.

The Systech ZR810 bench and panel-mount enclosure measures 190 mm high by 237 mm wide by 410 mm deep and weighs 7.9 kg, so the control-panel cut-out and its supporting rails need to be sized and load-rated before the instrument arrives on site. Sibling variants on the same electronics platform cover the other common mounting cases: the ZR820 is the wall-mounted weatherproof version rated IP66 / NEMA 4X for outdoor and washdown locations, while the ZR830 is a 4U 19-inch rack-mount unit intended for analyser houses and centralised instrument racks. Beyond the 4–20 mA signal specified for this unit, the series supports scaleable 0–20 mA, 0–10 V and 0–100 mV analogue outputs, all isolated, alongside USB, RS232 and RS485 digital communications for data logging and SCADA integration. Two volt-free changeover alarm contacts rated 240 VAC / 5 A are also provided; in a shielding-gas application these are typically wired to raise a warning at one oxygen threshold and to inhibit welding or divert the gas supply at a second, higher threshold.

Key Features

Configured specifically for oxygen-in-argon-hydrogen service, this ZR810 combines Systech’s proven zirconia sensor platform with the trace-level range resolution and safe hydrogen-compatible design that shielding-gas purity monitoring demands.

• Precision zirconium dioxide (ZrO2) zirconia sensor cell rated for safe operation with Ar+H2 blends up to 3% hydrogen
• Switchable trace measurement ranges: 0–10 ppm, 0–100 ppm, and 0–1000 ppm O2 in Ar
• Response time of 90% of step change within approximately 5 seconds
• Local panel-mounted digital indicator for immediate on-site oxygen readings
• Mains power supply (specified at quotation) with 4–20 mA output for control system integration
• Accuracy of ±2% of reading ±0.2 ppm at constant temperature, as published for the Systech ZR800 analyser platform

Applications

The Systech ZR810 configured for O2 in Ar+H2 is used for shielding-gas purity verification ahead of TIG and MIG welding operations, reducing-atmosphere monitoring in stainless steel and specialty alloy heat-treatment furnaces, argon-hydrogen blend quality assurance at specialty gas production and distribution facilities, brazing atmosphere control in metal-joining processes, and any process where an argon-hydrogen reducing gas is used to protect a metal surface from oxidation during high-temperature processing.

Sample Conditioning, Installation and Maintenance

The Systech ZR810 draws a sample flow of approximately 150 cc/min, and both the sample gas and the surrounding ambient air must sit within −5 to 50 °C for the published performance figures to apply. In Gulf installations this ambient limit is the specification most often overlooked at the design stage: an uncooled welding bay, or a sealed instrument cabinet mounted against a south-facing wall in Muscat, Sohar or Salalah, will exceed 50 °C through the summer months. The analyser should therefore be located in a conditioned control room, a ventilated or air-purged panel, or a shaded analyser cabinet, and the sample line should be run so that the gas reaching the cell has returned to ambient temperature rather than arriving straight off a hot process.

Sample conditioning matters equally because a hot zirconia cell is chemically selective about what reaches it. Systech explicitly identifies gases that are unsuitable for the standard analyser, including hydrogen sulphide, ammonia, corrosive gases, hydrocarbons, combustibles, hydrogen, carbon monoxide, NO2, halogens, halogenated hydrocarbons, and sulphur- or lead-containing compounds. These species either consume oxygen at the heated cell and produce an artificially low reading, or progressively poison the electrode and shorten sensor life. Hydrogen-bearing streams are addressed by the manufacturer’s optional high-purity version, built for gases containing low ppm levels of hydrocarbons, combustibles, hydrogen and carbon monoxide, which is precisely why an argon-hydrogen duty must be ordered as a defined factory configuration rather than retrofitted to a standard instrument. Buyers should confirm the exact hydrogen concentration and the full sample gas composition with Seven Star LLC at enquiry stage so that the correct sensor option, gas path and any required flame arrestor are quoted against the application.

Technical Specifications

Why Choose Seven Star LLC

Seven Star LLC is an experienced supplier of Systech process oxygen analyzers across Oman and the GCC, helping welding shops, heat-treatment facilities, and specialty gas plants specify the correct ZR810 range and hydrogen-compatible configuration for their shielding-gas application. Our team supports commissioning guidance, calibration scheduling, and fast regional delivery to keep critical shielding-gas quality monitoring in continuous operation.

Get a Quote

Contact Seven Star LLC for pricing, lead time, and configuration support on the Systech ZR810 oxygen analyzer for argon-hydrogen shielding gas service, or to discuss a customized range, mounting, or output configuration for your process.
