ABB ACS100-PAN Operating Panel for UMC22-FBP

Name: ABB ACS100-PAN Operating Panel | Seven Star LLC
Brand: ABB
SKU: ACS100-PAN

Description

Local operation and parameter setting for UMC22-FBP

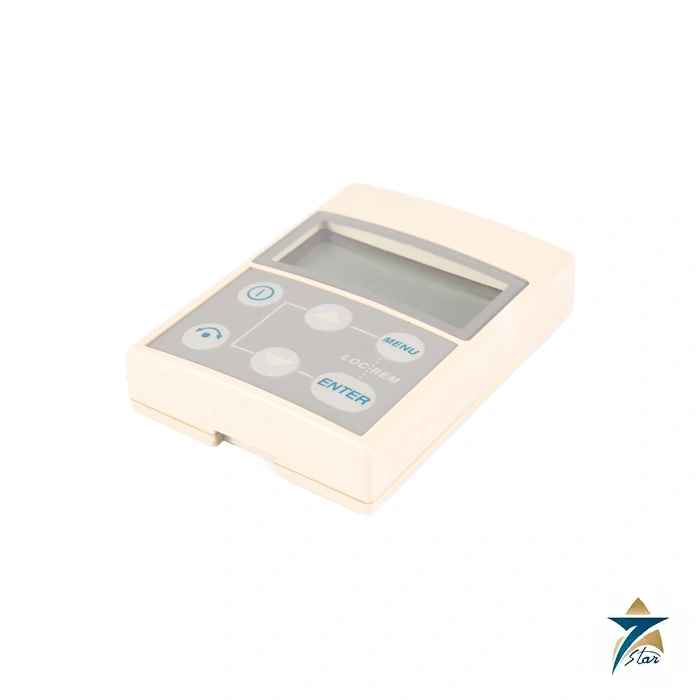

The ABB ACS100-PAN, catalog number 1SAJ510001R0001, is an operating panel listed for the UMC22-FBP universal motor controller. It provides an interface for operation, diagnostics and setting motor and bus parameters. This page identifies the panel itself, which is a separate component from the motor controller and the associated mounting accessories.

Product identification

Parameter	Specification
Manufacturer / type	ABB / ACS100-PAN
Catalog number	1SAJ510001R0001
Product function	Operating, diagnostic and parameter-setting panel
Documented controller application	UMC22-FBP universal motor controller
Parameter functions	Setting motor and bus parameters
Separate door-mounting accessory	ACS100-CAB.300, catalog number 1SAJ510002R0001

Panel and mounting accessory selection

For a replacement, compare the panel code and the installed controller before choosing the connection arrangement. A similarly named cable or mounting set is not a substitute for the operating panel. In particular, 1SAJ510002R0001 identifies the ACS100-CAB.300 accessory; it is not the ACS100-PAN panel order number.

The catalog describes ACS100-CAB.300 as a 3 m extension cable and door-mounting set. Its front-side IP65 description applies to that mounting arrangement, rather than establishing an unconditional enclosure rating for a loose panel. Identify the required cable and mounting equipment separately in the equipment list.

Documents and quotation

The ABB selection catalog contains the operating-panel and accessory order details. Browse our Automation Accessories for related equipment.

For a quotation, provide the ACS100-PAN code, quantity, installed UMC22-FBP identification and whether a panel only, an extension cable or a door-mounting arrangement is required. Include photographs of the existing panel and connection when replacing an installed unit.

Datasheets & Documents

Catalog ABB UMC22-FBP Selection and Accessories — 1SXU107047B0201 Download

Reviews (0)

Reviews

There are no reviews yet.

How would you rate this product?

About brand

ABB, formed in 1988 and headquartered in Zurich, covers an unusually long stretch of a plant's equipment list, from the flowmeter and analyzer in the field to the drive, breaker and protection relay in the electrical room. Seven Star LLC is an independent supplier serving Oman and the GCC. Our ABB listing concentrates on measurement and analytics: ABB flowmeters, liquid analysis sensors and systems, level and pressure instruments. It also includes valve actuators, low voltage circuit breakers, ABB drives, soft starters and protection relays.

ABB product families on this page

Flow measurement includes ABB electromagnetic, Coriolis, vortex and swirl meters, sold under names such as ProcessMaster, AquaMaster, CoriolisMaster and SwirlMaster. Liquid analysis covers pH, conductivity and dissolved oxygen sensors with their transmitters. SensyTemp TSP sensors handle temperature. On the electrical side the listing has ACS355 machinery drives, the ACS550 general purpose drive, the ACQ580 for water and wastewater and the ACS880-01 industrial drive, with fieldbus adapters such as the FPBA-01 for PROFIBUS DP. Protection and switching products include SACE Tmax XT molded case breakers, SACE Emax 2 air circuit breakers, PSR soft starters and the REM615 and RET615 relays.

Where ABB instruments and drives are used

Water and wastewater plants use the electromagnetic flowmeters, analyzers and ACQ580 drives together. Oil and gas, power and chemical plants specify the Coriolis and vortex meters, pressure and level transmitters and the 615 series relays for motor and transformer feeders. The drives run pumps, fans, conveyors and compressors in almost every industry.

Ordering ABB parts: what we need

For drives send the full type code from the rating label, for example ACS355-03E-05A6-4, plus the serial number if it is a replacement. For instruments send the complete order code, measuring span, process connection, wetted materials, output or protocol and the hazardous area approval. For breakers give frame size, rated current, breaking capacity, number of poles, trip unit and fixed or withdrawable version.

Frequently Asked Questions

What is the order number for ACS100-PAN?

The ABB catalog identifies the operating panel as 1SAJ510001R0001.

What controller application is documented for this panel?

ABB lists ACS100-PAN for operation, diagnostics and parameter setting on the UMC22-FBP universal motor controller.

Is 1SAJ510002R0001 the panel order code?

No. That number identifies ACS100-CAB.300, a separately listed extension cable and door-mounting accessory.

Does the panel alone have the accessory's IP65 protection?

The cited IP65 description is for the front side of the mounting arrangement. Specify the intended mounting accessories rather than transferring that rating to a loose panel.

What should be included in a replacement enquiry?

Provide the complete panel and controller identification, quantity, current connection arrangement and any required cable or mounting set.
