ABB FAIO-01 Analog I/O Extension Module for ABB Drives

Name: ABB FAIO-01 Analog I/O Extension Module | Seven Star LLC
Brand: ABB
SKU: FAIO-01

Description

Extra analog channels for ABB drives

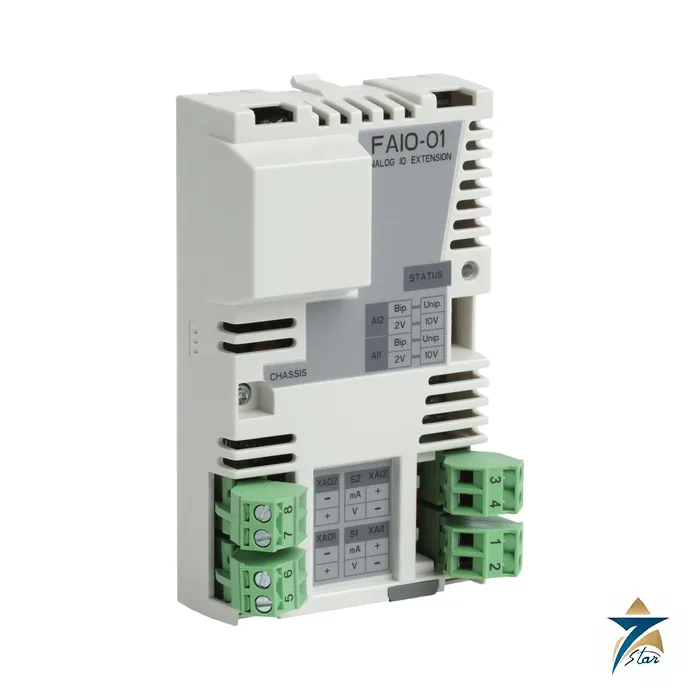

The FAIO-01 is an analog I/O extension that adds two analog inputs and two analog outputs to an ABB drive. It is chosen when standard control board I/O is not enough for pressure, flow or temperature signals.

Inputs accept 0-20 mA, 0-2 V or 0-10 V, unipolar or bipolar, selected by jumpers and parameters. Outputs deliver 0-20 mA into loads up to 700 ohm.

Technical specifications

Parameter	Specification
Type designation	FAIO-01
Analog inputs	2, 0-20 mA, 0-2 V or 0-10 V, unipolar or bipolar
Analog outputs	2, 0-20 mA, max 700 ohm load
Accuracy	Plus or minus 0.2%
Resolution	15/16 bit
Extra function	Motor temperature measurement
Approvals	cULus
Mounting	Option slot or FEA-03

Signals and accuracy

Accuracy is stated as plus or minus 0.2% with 15 or 16 bit resolution, good enough for process feedback loops handled inside the drive.

A motor temperature measurement function is also described, which can replace a separate relay in some applications.

Typical uses

The module is cULus listed, which matters in North American projects.

Place the module in a drive slot or on an FEA-03 adapter if the slots are full.

Selection and planning notes

Analog I/O choices matter more than they appear. A 4-20 mA signal is easier to supervise than 0-10 V because a broken wire is visible as a reading below 4 mA, and it tolerates longer cable runs. Use shielded twisted pair, earth the shield at one end only and keep signal cables away from motor cables. If the drive uses the extra inputs for a PID loop, scale and filter them in the control program rather than in the field device.

Further drives and options are listed in AC drives; the ACS580 platform is introduced on the ABB ACS580 page. Ask us which control programs accept the module.

For temperature work, a short note: motor temperature sensors connected through the module still need correct sensor type selection in the drive parameters, and the cable should be shielded and routed apart from power wiring. Test the readings against a reference thermometer at a known temperature before relying on alarm limits. Keep a printout of the jumper positions in the cabinet documents, because a changed jumper is not visible from the drive parameter list and can be forgotten during maintenance. Also keep the sensor cable length short and note the analog scaling in the parameter backup. Keep the calibration record with the drawings for future service visits.

For service teams, store a spare module together with a printed jumper map, the scaling values and the date of the last calibration check, so a replacement can be fitted and checked within minutes during a shutdown.

Documents and quotation

Seven Star LLC supplies the FAIO-01 on request from Muscat; send the drive type, control program version and the network details, and we reply with availability and lead time. The user manual (FAIO-01 UM C) is linked on this page.

Confirm before ordering: supported drive and program, jumper settings, signal range, output load and the manual revision.
