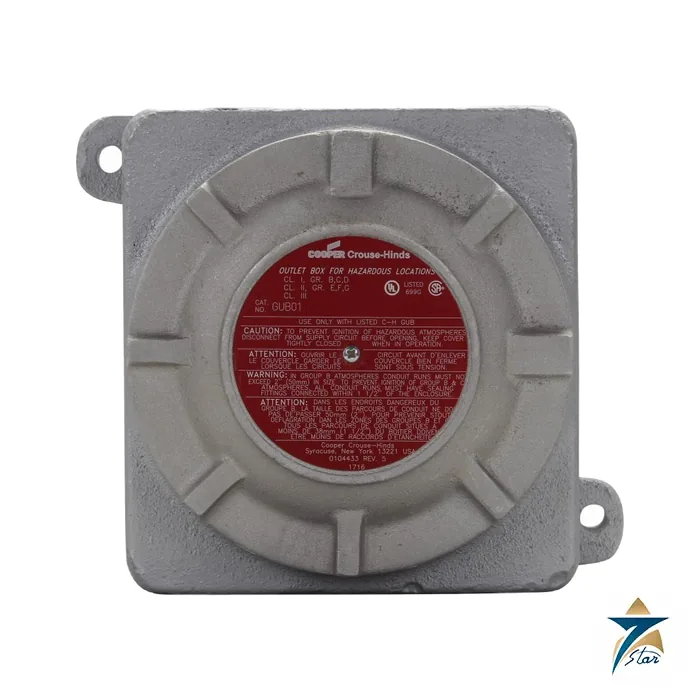

Cooper Crouse-Hinds GUE Series Explosionproof Junction Box
Overview
The Cooper Crouse-Hinds GUE series explosionproof junction box is a rugged, cast-body enclosure engineered to house wiring splices, pull points, and terminal connections inside threaded rigid conduit systems located in classified hazardous areas. Machined from Feraloy iron alloy, the GUE body carries thick walls that can be factory- or field-drilled and tapped to meet NEC and CEC hub requirements for Class I hazardous locations, giving instrumentation and electrical contractors the flexibility to configure entry points on site without compromising the explosionproof flame-path rating of the enclosure. A neoprene O-ring gasket under the cover provides a NEMA 4-rated watertight seal, and an internal grounding lug allows enclosed conductors and equipment to be properly bonded.
Seven Star LLC, as a trusted Cooper Crouse-Hinds distribution supplier, supplies the GUE series to engineering, procurement, and maintenance teams throughout Oman and the GCC. From cable pull points on offshore platforms to splice boxes inside refinery process units, we help specify the correct GUE body size, hub configuration, and mounting-plate option, and deliver genuine Crouse-Hinds hardware with full certification paperwork to project sites in Muscat, Sohar, and Salalah on schedule.
Measurement & Operating Principle
The GUE junction box functions purely as a passive, explosionproof containment enclosure rather than active measurement device: its role is to interrupt, contain, and isolate any internal arc or spark that could occur at a wire splice or terminal connection, preventing that ignition source from reaching a surrounding hazardous atmosphere. This is achieved through the flame-path principle – the machined mating surfaces between the cast body and cover form a long, narrow gap that cools and quenches any escaping flame front to a temperature below the ignition point of the external gas or dust atmosphere before it can exit the enclosure.
Because the box is entirely conduit-fed, the operating principle also depends on maintaining an unbroken explosionproof conduit run from each hub into and out of the enclosure, with all unused hubs closed using listed plugs of matching rating. The threaded construction throughout the GUE body and cover ensures that the same flame-path integrity is preserved at every joint, so the enclosure performs its containment function consistently regardless of which combination of side and down entries is used in the field.
Engineering Design
The GUE body is cast from Feraloy iron alloy with a corrosion-resistant aluminum acrylic painted or electro-galvanized finish, giving it the mechanical strength and surface durability needed for outdoor exposure in coastal, humid, and high-temperature Gulf environments. A typical GUE configuration provides a 1-inch hub size with four side and one down cable entry, a 12.5 cubic-inch internal capacity, and a cover opening sized for straightforward access during termination work, while the body is machined at the factory to accept a field-installed mounting plate for organizing terminal blocks or splice connectors inside the enclosure.
Certification coverage spans ATEX Ex d IIC, CSA C22.2 No. 30, UL 1203/886, and NEC/CEC listings, and the enclosure carries a NEMA/EEMAC 4/7/7B/7C/7D/9/9E/9F/9G/IP66 rating, meaning a single GUE box is qualified for Class I Division 1 & 2 Groups B, C, D and Class II Division 1 & 2 Groups E, F, G duty, as well as raintight and watertight service outdoors. This broad certification envelope lets one product family cover splice, pull, and device-enclosure duty across most classified process, gas processing, and marine terminal installations without switching enclosure lines mid-project.
Key Features
- Cast Feraloy iron alloy body rated Explosionproof, Dust-Ignitionproof and Raintight for Class I & II hazardous locations
- Threaded construction throughout preserves flame-path integrity at every conduit and cover joint
- Thick walls permit factory or field drilling and tapping to meet NEC/CEC hub requirements
- Neoprene O-ring cover gasket delivers a NEMA 4 watertight seal against rain and washdown
- Internal grounding lug for proper bonding of enclosed conductors and equipment
- Machined for field-installed mounting plates to organize terminal blocks and splices
- ATEX Ex d IIC, CSA C22.2 No. 30, and UL 1203/886 certified for global project compliance
- NEMA/EEMAC 4/7/7B/7C/7D/9/9E/9F/9G/IP66 rated for indoor and outdoor installation
Industrial Applications
The GUE series is specified as a splice box, pull box, or equipment/device enclosure anywhere threaded rigid conduit wiring must pass through a Class I or Class II classified area, including oil and gas production and gathering facilities, offshore platform cable runs, petrochemical process units, gas processing plants, and power distribution and control rooms exposed to combustible gases or ignitable dusts.
Seven Star LLC supports Oman’s oil and gas, petrochemical, and industrial sectors with genuine Cooper Crouse-Hinds GUE junction boxes for both new EPC installations and routine maintenance replacement. Our team works with instrumentation and electrical contractors across Sohar Industrial Port, the Salalah Free Zone, and interior GCC production sites to confirm hub configuration and mounting requirements, and to ensure every GUE box shipped carries the full manufacturer documentation needed for hazardous-area compliance sign-off.
Technical Specifications
| Model | Cooper Crouse-Hinds GUE Series |
|---|---|
| Type | Explosionproof / Dust-Ignitionproof / Raintight Junction Box |
| Body Material | Feraloy Iron Alloy |
| Finish | Aluminum Acrylic Painted / Electro-Galvanized |
| Hub Size | 1 in (typical), field/factory drilled & tapped |
| Cable Entries | (4) Side, (1) Down (typical configuration) |
| Internal Capacity | 12.5 cu-in (typical) |
| Dimensions | Approx. 7-3/4″ W x 5-13/16″ D x 7-13/16″ H |
| Hazardous Area Rating | Class I, Div 1 & 2, Groups B, C, D; Class II, Div 1 & 2, Groups E, F, G |
| Enclosure Rating | NEMA/EEMAC 4/7/7B/7C/7D/9/9E/9F/9G/IP66 |
| Certifications | ATEX Ex d IIC, CSA C22.2 No. 30, UL 1203/886, NEC/CEC |
| Sealing | Neoprene O-ring Cover Gasket |
| Brand | Cooper Crouse-Hinds (Eaton) |
Need a Cooper Crouse-Hinds GUE explosionproof junction box configured for your hazardous-area project in Oman or the GCC? Contact Seven Star LLC today for a formal quotation, technical datasheet, and lead-time confirmation from our genuine Crouse-Hinds inventory.
Related Products
- Schneider Electric Harmony XB4 Pushbutton Station
- Schneider Electric Harmony XB5 Plastic Pushbutton Station
- Siemens C73451-A430-D81 Pneumatic Block, Double-Acting
- ABB TA25DU6.5 Thermal Overload Relay
- Enerdis TRIAD2 T304 – Programmable Multi-Output Transducer
- Schneider Electric Harmony XVB Signal Tower Light
- Datasheet Cooper Crouse-Hinds GUE/GUB Junction Boxes Datasheet Download
Cooper Crouse-Hinds product families listed here
The catalog numbers on this page follow the manufacturer's own series names:- Condulet conduit outlet bodies, such as the Form 8 C28 and the Form 5 LB25
- EYS conduit sealing fittings (EYS3, EYS5) and ECGJH flexible couplings
- GUB and GUE explosionproof junction boxes, and the box listed as GUP315
- EDS and EFS explosionproof control stations and N2S non-metallic, factory-sealed stations
- Arktite receptacles, for example the 30 A AR342
Where Crouse-Hinds explosionproof equipment is used
Most of these parts belong to rigid conduit systems in classified areas: refinery units, gas compression and metering stations, tank farms, loading racks, paint and solvent handling, and offshore modules across the GCC. The listed series are built around the North American Class and Division system, but the rating differs by item: N2S stations are marked for Class I, Division 2, and the AR342 receptacle is a watertight type for ordinary locations. A Cooper Crouse-Hinds junction box or control station should therefore be selected against the area classification drawing, not by enclosure size alone.Ordering Cooper Crouse-Hinds parts: what we need
Send the full catalog number from the nameplate or the casting, including every suffix. For conduit bodies and seals, add the hub size and thread, and state the material, iron alloy or copper-free aluminum. For control stations, list the operators, contact blocks and legend plates. For receptacles, give the amperage, the number of wires and poles, and the mating plug. A nameplate photo and the area classification let us confirm the match before quoting.Browse Cooper Crouse-Hinds products by category: Automation Accessories, Pipes & Fittings, Electrical & Power Modules.
