ABB CR-M230AC2 Interface Relay 230 V AC 2 c/o 12 A

Name: ABB CR-M230AC2 Interface Relay 230 V AC | Seven Star LLC
Brand: ABB
SKU: CR-M230AC2

Description

CR-M230AC2: mains-coil interface relay with two 12 A changeover contacts

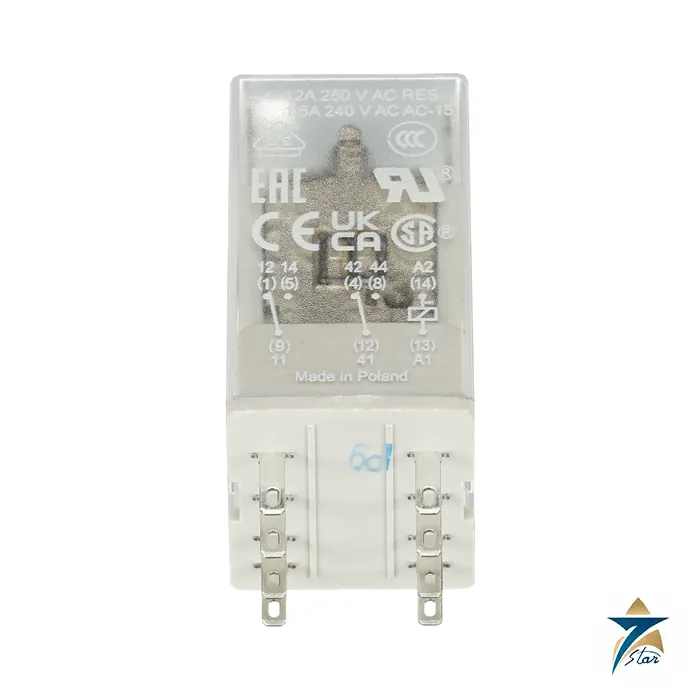

CR-M230AC2 is the 230 V AC-coil version of the two-contact CR-M relay. Its output is two changeover (SPDT) contacts rated 12 A at 250 V, and it has no LED. It is used where a 230 V control signal, for example from a thermostat or a pilot switch, must switch another circuit with electrical separation.

The relay mounts on a CR-M socket and is 27 mm wide on the socket. The test button for this AC version is orange, which shows at a glance that the coil is an AC type.

Technical specifications

Parameter	Specification
Type designation / order code	CR-M230AC2 / 1SVR405611R3000
Relay type	Pluggable interface relay, 2 c/o (SPDT) contacts, without LED
Coil voltage Us	230 V AC, 50/60 Hz; pick-up from 184 V, maximum 253 V at 55 C; drop-out at 0.2 Us or more
Coil power / resistance	1.6 VA / 16,100 ohm (plus or minus 10 %)
Thermal current Ith	12 A; AC12 230 V 12 A; DC12 24 V 12 A
Inductive ratings	AC15 230 V 1.5 A, 120 V 3 A; DC13 24 V 2.5 A
Inrush / AC1 power	24 A / 3000 VA
Life / switching times	Mechanical above 20 million cycles; electrical above 100,000 cycles at 12 A 250 V; typical pick-up 10 ms, release 8 ms (AC)
Ambient temperature	Operation -40 to +55 C for AC coils; storage -40 to +85 C
Isolation	250 V AC; impulse 2.5 kV coil to contacts; overvoltage category III, pollution degree 3
Contact material / rated voltage	AgNi / Ue 250 V; max switching 250 V AC/DC; minimum 10 V and 5 mA
Test button	Integrated manual actuation and locking button (blue for DC, orange for AC coils)
Dimensions on socket / weight	21.2 x 27.5 x 35.6 mm (W x H x D) / 35 g; width on socket 27 mm
Protection / mounting	IP40 / on a CR-M socket, any mounting position
Approvals and standards	UL 508, CSA C22.2 No. 14, VDE, GOST, CCC, CE; EN 61810-1

Coil details for the AC version

The coil is rated 1.6 VA at 50/60 Hz, with a resistance of 16,100 ohm. It pulls in at 184 V AC at 20 C and tolerates 253 V AC at 55 C, and drop-out is at 20 percent of the rated voltage or more. Typical pick-up time is 10 ms and release is 8 ms, slower than the DC type on release.

The AC coil version is rated for ambient temperatures of -40 to +55 C, lower than the +70 C allowed for DC coils. In a hot cabinet this difference is worth checking against the real temperature.

Protecting contacts and coil

For a 230 V AC coil ABB lists the CR-P/M 82 varistor module (1SVR405656R2000) for overvoltage protection and the CR-P/M 52C RC element (1SVR405653R1000, 110 to 230 V AC) for arc suppression. These plug into the socket together with the relay.

The contacts follow the same table as the DC version: 12 A resistive, 1.5 A inductive at 230 V AC (AC15). If the load is a contactor coil or small motor, check the inductive rating and not only the thermal current.

Documents and quotation

The linked file is the ABB CR-M pluggable interface relays data sheet 2CDC117002D0205. Seven Star LLC supplies the CR-M230AC2 on request from Muscat as an independent supplier; availability and lead time are given in the quotation. More products of this kind are in the Automation Accessories category, and a related item is the ABB CR-M024DC4L interface relay.

Confirm before ordering: the coil voltage on site (AC or DC), the load current and type (resistive or inductive), the number of changeover contacts needed and the socket type.
